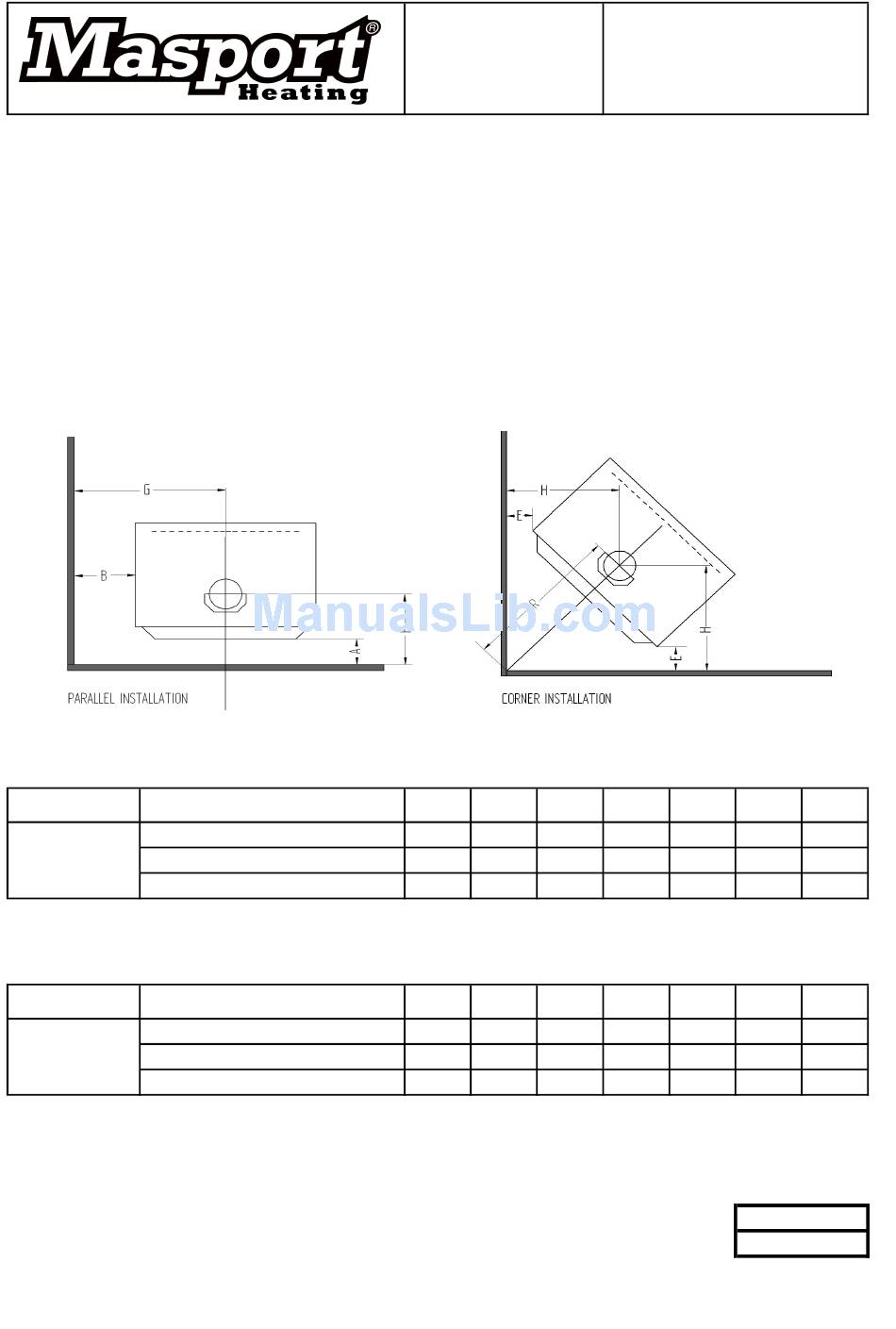

INSTALLATION SPECIFICATION SHEET
These instructions must be used in conjunction with the 'General Installation Instructions' for Masport
wood fires.

CLEARANCE REQUIREMENTS

This fire has been tested to the Australian/New Zealand Standard AS/NZS 2918:2001 and all installations must
be in accordance with the minimum clearances to combustibles indicated in these instructions.
The minimum clearances to combustables may be reduced if the combustable walls are shielded with an
approved non-combustable material. Details of suitable materials and appropriate clearance reduction factors
are present in Section 3 of AS/NZS 2918:2001.

POSITIONING YOUR FREE-STANDING WOODFIRE

NEW ZEALAND
MINIMUM DISTANCES TO HEAT SENSITIVE WALLS (mm)
MODEL
GRANDVIEW
S3
AUSTRALIA
MINIMUM DISTANCES TO HEAT SENSITIVE WALLS (mm)
MODEL
§ Valid only when the room walls are at 90° to each other.
‡ Note: Clearances are for fire hazard only. For durability of finishes or surfaces you should contact the
relevant manufacturer for their specification. Masport accepts no responsibility for the deterioration of surfaces
or finishes.
See " INSTALLING THE FLUE " for recommended Australian flue systems.
O:\W-F INSTALLATION SPECIFICATIONS\Individual Installation Data Sheets\INSTALLATION
SPECIFICATIONS INDIVIDUAL MASPORT\GRANDVIEW S3 Installation Data Sheets 595775-10-05-27.xls
FLUE HEAT SHIELD
SINGLE POLISHED S/S 900mm
FLUE HEAT SHIELD
MODEL
A
B
E
150
350
200
A
B
E
GRANDVIEW S3
F
G
H
345
730
607
F
G
H
595775
PRT. NO.
27.05.2010
DATE:
858
