WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. For assistance or additional information consult an authorised technician, or your
Masport Woodfi re Dealer.
FOR YOUR SAFETY: Do not store or use gasoline or other fl ammable vapours and liquids in the vicinity
of this appliance. Installation and service must be performed by authorised personnel. Please keep these
instructions for further reference.
Distributed in New Zealand by
Glen Dimplex Australasia Limited
38 Harris Road, East Tamaki, Auckland
PO Box 58 473, Greenmount, Auckland
Ph: 0800 666 2824 Fax: 09 274 8472
Email: sales@glendimplex.co.nz
Web: www.glendimplex.co.nz

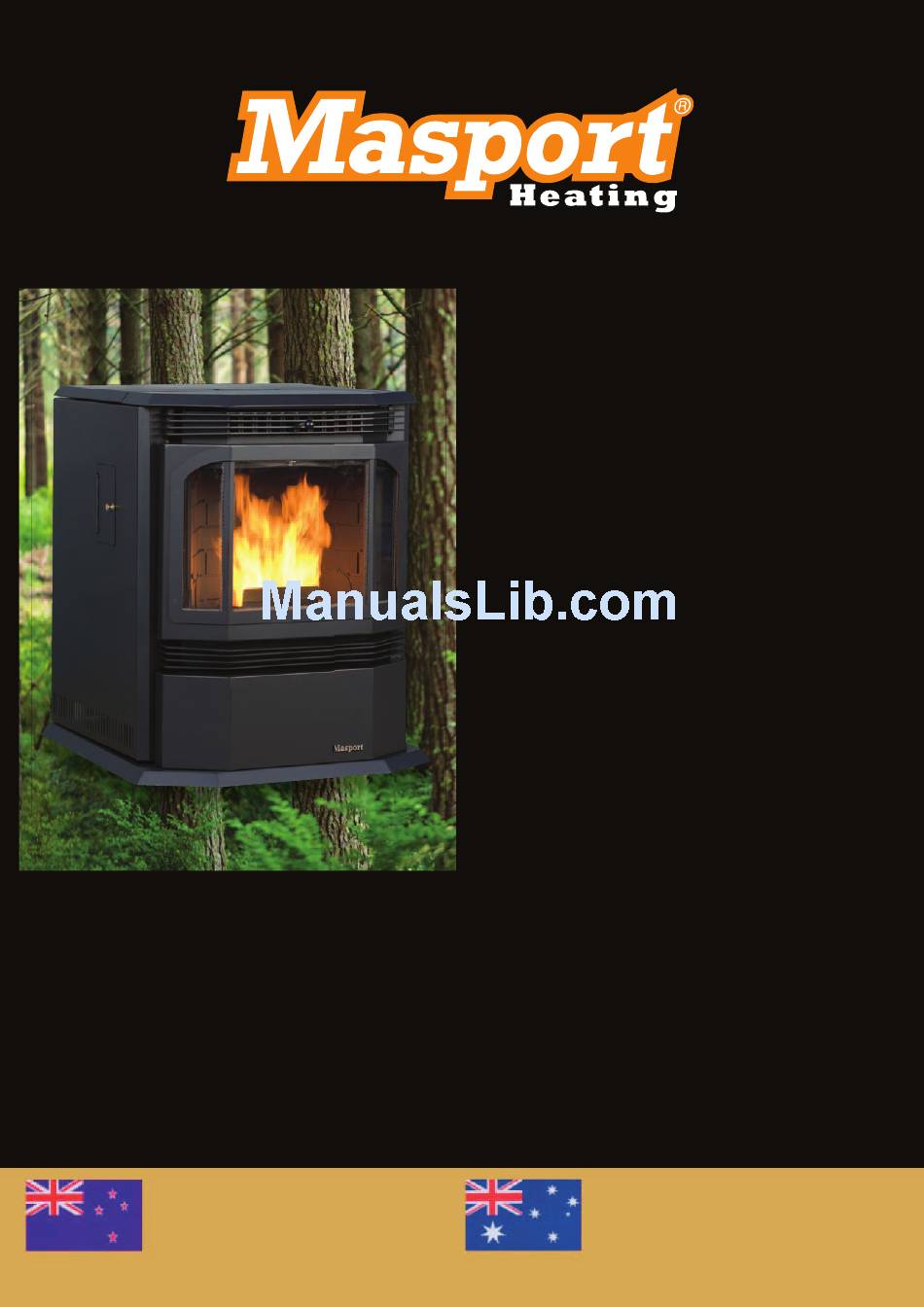

PELLET
F I R E
OWNERS
MANUAL &
INSTALLATION
G U I D E
Distributed in Australia by
Glen Dimplex Australia Pty Limited
Unit 2, 205 Abbotts Road
Dandenong South,Victoria 3175
Ph: 1 300 566 816 Fax 1 800 058 900
Email: sales@glendimplex.com.au
Web: www.glendimplex.com.au
Part No. 596578
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Masport STORM2
Summary of Contents for Masport STORM2
- Page 1 WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. For assistance or additional information consult an authorised technician, or your Masport Woodfi re Dealer. FOR YOUR SAFETY: Do not store or use gasoline or other fl ammable vapours and liquids in the vicinity of this appliance.
-
Page 2: Installation Instructions
ST ORM 2 P E L LE T H E A T ER OW N E R ' S M A N UA L & INSTALLATION INSTRUCTIONS Free Standing Pellet Fire Model: Storm 2 Please read this manual carefully and ensure correct installation, operation and maintenance procedures for your Pellet Heater are followed to maximise its safety and efficiency. - Page 3 This manual covers, in detail, the necessary steps required in assembling and installing your Storm pellet heater in a safe manner. We at Masport Heating, thank you for selecting a Storm pellet heater as the answer to your home heating needs.
-
Page 4: Table Of Contents
- TABLE OF CONTENTS - Safety Precautions Pellets General Information Fire Pot Configuration Clinkering Fuel Feed Rates General Operating Considerations Proper Burn Characteristics Pellet Feed / Pellet Size Long Burn Time Automatic Safety Features Power Outage Overheating Safe Shut Down of Your Pellet Heater Storm Key Components Storm Operating Functions Operating Procedures... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Please read this safety information carefully. It contains important information about the installation and operation of your new pellet heater. This Owner's Manual is provided to you to supplement, rather than replace or update, the information contained on the safety label. -
Page 6: General Information
Different brands of pellets will feed at varying rates due to their size and density (length and diameter). PLEASE NOTE: MASPORT HEATING HAS NO CONTROL OVER THE MANUFACTURING OF PELLET FUEL AND WILL NOT BE HELD RESPONSIBLE FOR POOR HEATER PERFORMANCE OR ANY DAMAGE CAUSED BY INFERIOR PELLET FUELS. -
Page 7: General Operating Considerations
GENERAL OPERATING CONSIDERATIONS Proper Burn Characteristics: The flame in your Storm pellet heater should be bright yellow under normal operation. If the flame becomes 'lazy' with a reddish/orange colour, lower the feed rate on the Control Panel - this will allow unburnt fuels to clear away from the Fire Pot and induce better combustion. -
Page 8: Storm Key Components
STORM 2 KEY COMPONENTS PELLET Ignition Cycle/ FEED Pellet Feed Light LIGHT START Start Switch HEAT Heat Controller... -
Page 9: Storm Operating Functions
STORM 2 OPERATING FUNCTIONS 1. CONVECTION FAN (ROOM AIR FAN) This fan draws room air from the back of the heater and passes the air through the heat exchanger into the room. The units sealed system keeps the room air separate from the the combustion air. The speed of the convection fan is linked to the heat controller. - Page 10 This is a safety device. In the event that the Convection Fan fails, this sensor will overheat and shut off the power to the Auger Motor turning the unit off. If this should happen, all voltages inside the heater will be shut down as a safety precaution. Please contact your Masport Heating Dealer for further assistance. 13. SHUT DOWN TEMPERATURE SENSOR This sensor has two functions: 1 - Should the fire go out, this sensor will shut the heater off when the Exhaust Temperature drops below set temperature.
-
Page 11: Operating Procedures
10 minutes, then you can increase the heat setting to the desired level..If the unit does not start up the first time, push the Start Switch once more. Please contact your nearest Masport Heating Dealer if the unit will still not start. - Page 12 OPERATING PROCEDURES - Continued Running Procedure: 1) Ensure that your heater has sufficient pellets in the Hopper at all times while it is running. 2) Never put pellets that are wet, damp or affected by moisture into the Hopper. The moisture content of the pellets is specific to ensure that they burn accurately and do not block the Hopper and Pellet Feeder.
-
Page 13: Routine Cleaning
ROUTINE CLEANING The following areas need to be inspected: Note: Your Storm Pellet Heater will need to be shut off and cooled completely before routine cleaning is performed. ALWAYS disconnect power before doing any routine cleaning. FIRE POT: The Fire Pot should be cleaned every 8 hours of burn time to assure that the air holes have not become clogged with ash or clinkers. -
Page 14: Ongoing Care & Maintenance
Make sure the door glass is clear. If you have a gold door, ensure all residue has been cleaned off. 3) This is probably the ideal time to undergo all other periodical maintenance recommended. Your Masport Pellett Fire must be checked and serviced yearly by an authorised Masport heating Dealer or Technician. -
Page 15: Storm Pellet Heater Installation Checklist
STORM 2 PELLET HEATER INSTALLATION - CHECKLIST - A Registered installer must install this pellet fire. Read the ENTIRE Storm Pellet Heater Installation section first. Read either the Insert or Freestanding section (whichever applies). Determine the appropriate measurements and locations for your installation. Follow the general installation directions under Storm Pellet Heater Installation &... -
Page 16: General Guidelines For Installing The Flue System
GENERAL GUIDELINES FOR INSTALLING THE FLUE SYSTEM: YOUR PELLET FIRE MUST BE INSTALLED BY A REGISTERED MASPORT HEATING INSTALLER. THE FOLLOWING INSTALLATION GUIDELINES MUST BE FOLLOWED TO ENSURE CONFORMITY WITH BOTH THE AUSTRALIAN AND NEW ZEALAND STANDARDS AND LOCAL BUILDING CODES. -
Page 17: Adjusting Of Flue Damper Setting
ADJUSTING OF FLUE DAMPER SETTING: 1. After completion of flue installation the flue damper slide needs to be adjusted to achieve the best combustion conditions. Taking a reading of the vacuum inside the firebox with a vacuum gauge is the best way to measure the combustion conditions. - Page 18 GENERAL GUIDELINES FOR INSTALLING THE FLUE SYSTEM - Continued 100mm Outer Galvanised Flue Vent Cap Flashing 75mm Inner Stainless Flue Thimble Ceiling Plate Note: 1) Cut correct hole in plaster. 2) Put ceiling plate in position. 3) Insert bottom outer galvanised flue crimped end up in position on joists using angles. 4) Now proceed to join the outer flues in their positions, ensuring all gaps are complied with.
-
Page 19: Installing Your Freestanding Pellet Heater
INSTALLING YOUR FREESTANDING STORM PELLET HEATER STANDARD INTERNAL FLUE THROUGH CEILING - FLUE ARRANGEMENT GDA Ltd Flue Kit No. GDFLU090 Flashing - 18 -... - Page 20 STANDARD INTERNAL FLUE THROUGH CEILING CLEARANCES ( MINIMUM ) TO COMBUSTIBLES AND MINIMUM DISTANCES FOR USER ACCESS Note: If fire is installed with minimum clearances it will be necessary to move it away from the walls to carry out major repair / maintenance work.
- Page 21 STANDARD INTERNAL FLUE THROUGH CEILING - REQUIREMENTS FOR FLOOR PROTECTORS Floor protectors to be made from non conbustible materials Minimum requirement : 6 mm thick fibre cement board e.g. Hardies Tile and Slate Underlay. Note: - If the fire is installed closer than 150 mm to a wall, the floor protector must reach to the wall. - Floor Protector: One sheet of 6mm fibre cement board, e.g.
- Page 22 STANDARD EXTERNAL FLUE - FLUE ARRANGEMENT THROUGH EAVES GDA Ltd Flue Kit No. GDFLU091 (horizontal section not included) Flashing - 21 -...
- Page 23 STANDARD EXTERNAL FLUE - FLUE ARRANGEMENT TERMINATING BELOW EAVES GDA Ltd Flue Kit No. GDFLU092 (horizontal section not included) VENT MUST BE NO LESS THAN 600mm UNDER AN EAVE OR 1200mm BELOW A WINDOW - 22 -...
-
Page 24: Standard External Flue
STANDARD EXTERNAL FLUE CLEARANCES ( MINIMUM ) TO COMBUSTIBLE AND MINIMUM DISTANCES FOR USER ACCESS Note: If fire is installed with minimum clearances it will be necessary to move it away from the walls to carry out major repair / maintenance work. A distance of 500 mm to the side walls would be preferable. - 23 -... - Page 25 STORM PELLET HEATER DIMENSIONS TOP VIEW FRONT VIEW Hopper Capacity : 22 kg heater Weight : 100 kg Electrical Rating : 240 V, 50 Hz, 3.3 A - 24 -...
- Page 26 Storm Pellet Heater Wiring Diagram - 25 -...
-
Page 27: Troubleshooting
The Ignition light will flash when the heater is on. If the light is not flashing, press the Ignition switch again. If the light still does not flash and the pellets are not feeding, contact your Masport Heating Dealer. 6) I can see/smell smoke from my heater. -
Page 28: Curing The Paint
CURING THE PAINT Most high temperature paints operate in the same way. They use a resin, which dries at room temperature giving the paint the initial properties seen on an unused fire. Then when the fire is burned, this air dry resin burns away. At the same time, the silicone resin (silicone gives the paint its high heat resistance) in the paint will not cure until it is heated to high temperatures.
