Triad Mini OpenRound Installation Manual page 7

Tuning: Special Applications
Single Tweeter Models:

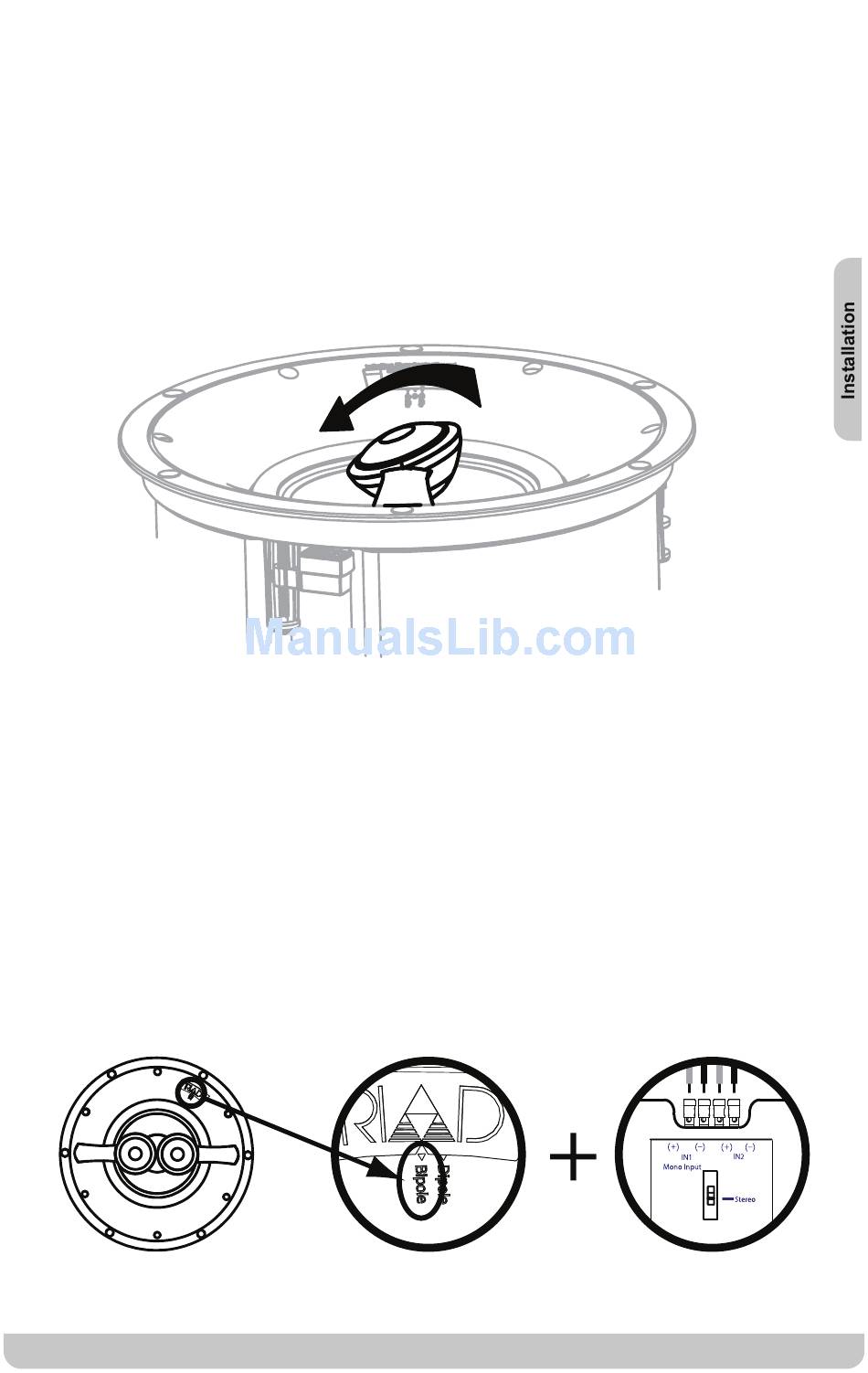

Tweeters on all models can be aimed up to 30 degrees in each direction around
the axis of their arms to vary their sound distribute pattern as desired.
DT: For typical dipole or diffuse Bipole applications, angle both tweeters in
opposite directions at their 30 degree extremes.
Dual Tweeter Models:
There are three primary applications for DT (Dual Tweeter) models.
Each application requires a different combination of Tweeter Orientation &
Bipole/Dipole Switch setting on the front baffl e and Input Connections & Stereo/
Mono Switch setting on the back.
Stereo Mode (Factory Default)
Plays both channels of a two-channel system through a single speaker. This is
appropriate for areas where stereo separation is not desired, such as bathrooms,
dressing rooms, hallways, etc. This is the default setting as the speaker is
delivered to you from the factory. Both tweeters are in phase.
Tweeter Orientation Bipole Switch Inputs/Stereo Switch
to Bipole to Stereo
Triad InCeiling Rounds Installation Manual - pg. 7
