Programming Mode - HITEC Eclipse PRO CAR Instruction Manual

- Tip: Reset the total time timer when you recharge or replace your batteries so you can
estimate how much run time they will have left.
- Press the "FUNC" button to scroll to the next menu.
G) 3rd Channel Switch Select
- After entering the main edit mode press the "FUNC" button to scroll to the
3rd channel switch select menu.
- Push the "DATA" + and - buttons to select either "Linear" or "Shift".
- Linear is activated via the trim tab on the left side of the steering stick and can be moved to
any position you select. This is typically used for mixture control in nitro boats, but you can use it for
anything else you can think of too.
- Shift is activated by the momentary switch located to the top left side of the transmitter.
This is used to shift vehicles such as the T-Maxx
- Tip: Use the index finger to pull the switch forward to shift.
When the switch is pulled the AUX servo will travel to
one end, then when it is pulled again, it will travel to the other end.
Each end point can be set in the EPA screen in the
programming mode for fine tuning.
- Press the "FUNC" button to scroll to the next menu
H) Exit
- Once you have set all the parameters in this menu you can exit by
simply turning the radio off, and then back on again to operate.
- If there is still more programming needed push the "FUNC" button to
scroll through the menu again.
- Scrolling is only in one direction so if you miss a screen just go around
until you get back to the screen you want.

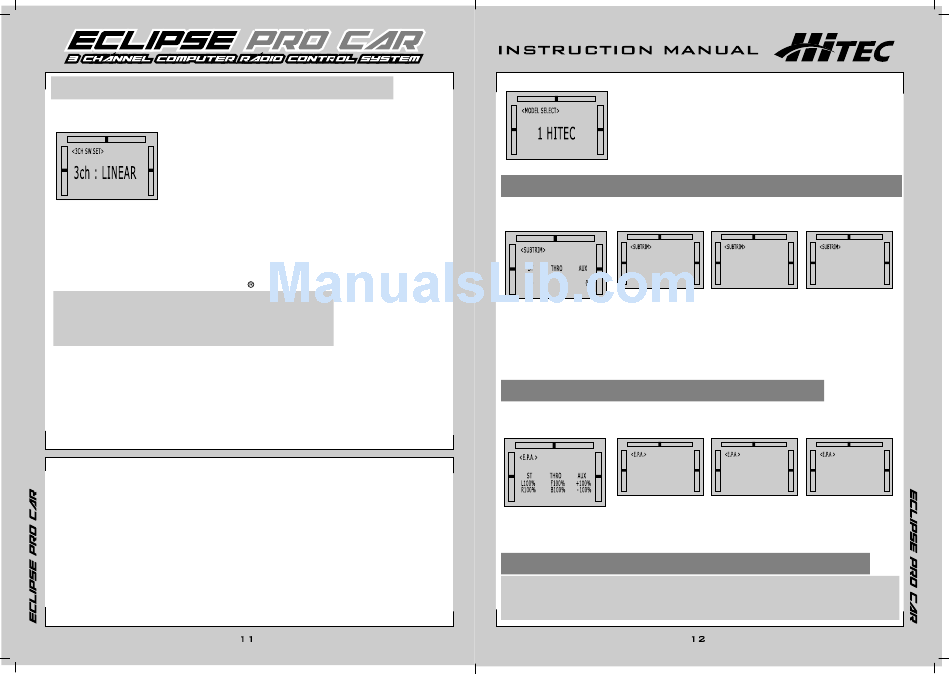

7. Programming mode

The programming menu allows you to change from one model memory to another and
adjust the settings required to set up your vehicle. The programming mode screens will
appear in the following order:
1. Model select
2. Sub-Trims
3. EPA
4. Exponential
5. ABS
6. Mixing
Programming
- Access the menu by holding the "FUNC" (function) button down while the transmitter is already on.
or similar type products.
A) Model Select
- Press the "DATA" + or - buttons to select the model to be used. (1-20)
- Note: Be aware that if you wish to name or re-name a model, you will need to select the model,
exit the menu or turn the radio off, and then follow the model naming instructions in the main edit mode.
- Press the "FUNC" button to scroll to the next menu.
B) Sub-Trims
Steering
0
- After entering the programming mode press the "FUNC" button to scroll to the sub-trim menu.
- The current settings will show on this menu, if you wish to change them press the "SEL" button.
- "Steering" will appear first. Use the "DATA" + and - buttons to adjust the sub-trims right and left.
- Press the "SEL" button to access the throttle sub-trim and adjust with the "DATA" + or - buttons.
- Press the "SEL" button to access the auxiliary 3rd channel sub-trim and adjust with the
"DATA" + or - buttons.
- Press the "SEL" button to loop back to the main sub-trim menu.
- Note: The main sub-trim menu will now show all the new settings.
- Note: Push the "DATA" + & - buttons at the same time to reset to factory default.
- Press the "FUNC" button to scroll to the next menu.
C) EPA (End Point Adjustment)
Steering
L100% R100%
- After entering the programming mode press the "FUNC" button to scroll to the EPA menu.
- The current settings will show on this menu, if you wish to change them press the "SEL" button.
- "Steering" will appear first. Use the "DATA" + button to adjust the EPA setting higher or
the - button to adjust it lower.
- Note: leaving the steering wheel in the center will adjust both Left and Right at the same time.
TO ADJUST EACH SIDE INDIVIDUALY move the wheel in the direction you wish to set.
- Tip: Always max out the dual rate dial to 125% before setting your individual end points for
maximum travel.
- Tip: When setting the EPA, turn and hold the steering wheel to the end then increase or decrease the
EPA so that the servo moves the wheels on the car to their maximum travel without binding.
Throttle Auxiliary
0 0
Throttle Auxiliary
F100% B100% +100% -100%
