HITEC Eclipse PRO CAR Instruction Manual page 3

C) System Specifications
1. Transmitter
- Current drain : 160mA
- Modulation : FM
- Power supply : 8AA alkaline,
- Frequencies : 40MHz (3 channels)
2. Receiver
- HIS-03MK
- IPD ( Intelligent Pulse Decoding)
- Modulation : FM single conversion
- Power supply : 4.8V- 6V
- Weight : 0.6oz
Touch Your Dreams
- Size : 38.8 X 26 X 16.5 mm (1.5X 1.0 X 0.6)"
- Current drain : 18mA +/- 1mA
- DSC (Direct Servo Control)
- Low Battery Warning
Transmitter
- Power LED
3. Servo
- HS-325HB
- Top Ball Bearing
- Karbonite Gears
- Long Life Potentiometer
- Operating Speed : 0.15 sec AT 6v
- Output Torque : 49 oz.in AT 6v
- Weight : 43g(1.5oz)
Receiver
- Size : 40 X 20 X 37mm (1.6 X 0.8 X 1.4)"
4. Charger
- CG-22A
- AC Overnight Charger
- Charger for Receiver &
Transmitter Nicad Battery
- Charging Capacity : 50mA
- Power Source : 220V RANGE
Servo 5. Options
- Dry battery holder. Part# 54409
6. Available Versions
Standard : Part# 12940 (40 MHz)
Description : Eclipse Pro Car transmitter,
Charger
Nicad or NiMh batteries
His-03MK RX,
HS-325HB Servo,
TX NiCad's w/Charger.

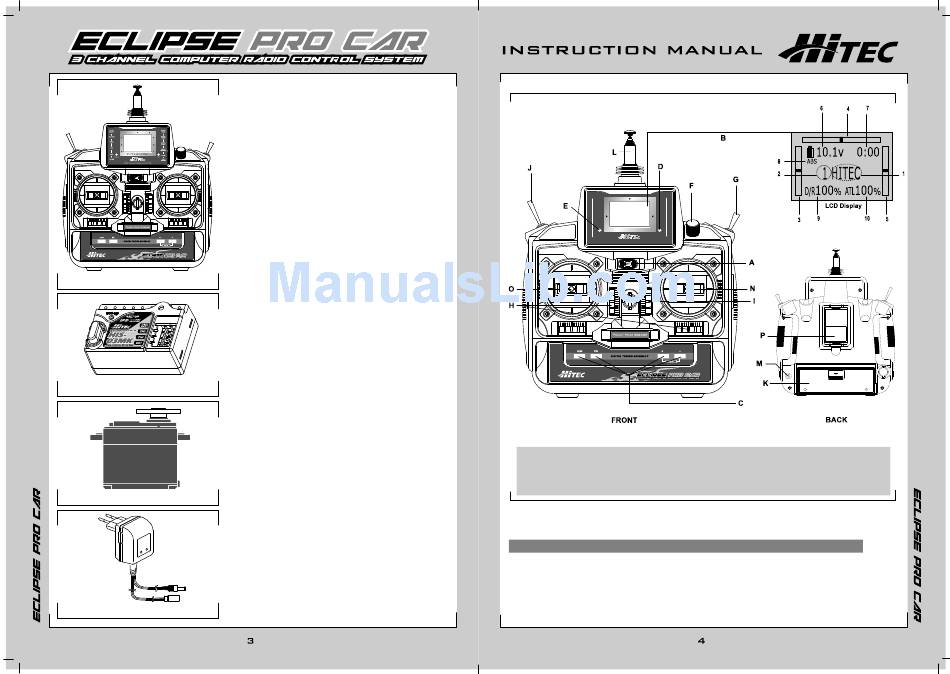

2. Transmitter Functions and Operations
MODEL MODEL MODEL MODEL
SELECT SELECT NAME NAME
L R
SUBTRIM SUBTRIM MODEL MODEL
+
F COPY COPY
E.P.A. E.P.A.
MODEL MODEL
RESET RESET
EXP EXP
SERVO SERVO
- REVERSE REVERSE
B
A.B.S. A.B.S. GRAPHIC LCD DISPLAY
TIMER TIMER
POWER R/F
MIXING MIXING 3CH 3CH
SELECT SELECT
Computerized Stick Type Surface System
Digital proportional Radio Control System
Touch Your Dreams
A) Power Switch F) Steering Dual Rate
B) LCD Display G) ATL Switch
C) Programming buttons H) Steering and Throttle trims
D) RF Indicator light I) Third channel Linear adjust
E) POWER Indicator light J) Third channel (Shift) switch
A) Power Switch
- Slide the switch right to turn the transmitter on,
and left to turn it off.
- Warning: Always turn your transmitter on first and off last to prevent accidental runaways.
B) LCD Display
1. Model Name 2. Model Number
4. Steering trim 5. Aux
7. Timer 8. ABS on/off
10. ATL Braking
PUSH
K) Battery Cover
P) Module
L) Antenna
M) Charging jack
N) Steering stick
O) Throttle stick
3. Throttle trim
6. Battery voltage & meter
9. Steering Dual Rate
