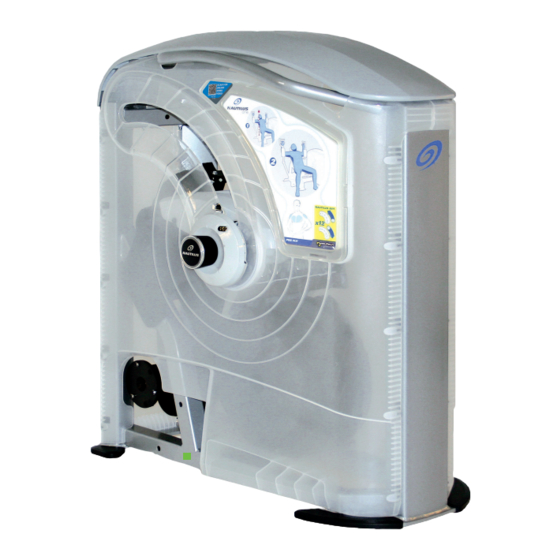

- Page 1 ® ® STRONGER THAN EVER ™ s ’ Assembly Of The Nautilus ® ® Commercial Strength System Core Fitness, exclusive manufacturer of Nautilus Commercial Fitness Equipment ® P/N 001-7178 07-24-14...
- Page 3 PREFACE Thank you for purchasing a Nautilus Commercial Series Strength system. For more ® ® than 30 years, Nautilus has been producing the world’s finest fitness products used in health ® clubs and homes around the globe. We hope this product exceeds your expectations and is a valuable tool for your facility and your customers.
-
Page 4: Getting Started
GETTING STARTED Installation Notice The Nautilus machines must be properly installed before being used. Core Fitness ® ® recommends that you contact your dealer or sales representative when your machine arrives. The representative will help unpack, install, and demonstrate proper use of the machine to ensure that the machine is free from shipping damage, and that installation and operation are in accordance with Core Fitness standards. - Page 5 Refer to Figure 1 below for all of the possible color combinations. If you have any questions or concerns regarding installation of the Nautilus system, ®...
- Page 6 ASSEMBLY Tower Shroud And Cover Removal Follow these instructions to remove the weight tower shrouds and top cover before installing the seat frame. Note: to prevent damage, remove all shrouds prior to removing the weight tower from the pallet and moving it to the desired location of use.
- Page 7 Step 4. Remove The Inside Shroud (Figures 7 and 8) 4-1 Adjust the selector knob to the lowest setting, and then lift it up and out of the way. Remove the center cap by carefully pressing it out of the tabs in the shroud opening;...
- Page 8 Step 2. Re-install The Outside Shroud (Figure 5) 2-1 Position the outside shroud against the frame so that the tabs align with the P-slots; 2-2 Carefully insert both the front and back tabs into the P-slots; 2-3 Push down on the tabs until they are seated at the bottom of the P-slots.
- Page 9 Seat Frame To Weight Tower Assembly Follow these instructions to secure the seat frame to the corresponding weight tower. Step 1. Match The Seat To The Tower 1-1 Ensure the colored decal on the seat frame matches the colored decal on the weight tower. Note: assembling a seat frame with a non-matching weight tower may result in irregular machine function, damage to components, and risk of serious injury!
- Page 10 Step 4. Final Adjustment 4-1 Make sure the seat frame belt is tight. If it is not tight, loosen the belt keeper and make the adjustment. Take care to re-tighten the belt keeper; 4-2 Make sure the selector knob functions properly and the weight plates are being fully engaged;...
-
Page 11: Contact Information
CONTACT INFORMATION If you need assistance, please have both the serial number of your machine and the date of purchase available when you call Core Fitness Customer Excellence. TECHNICAL & CUSTOMER SERVICE phone: 276-773-2881 toll free: 800-235-2233 fax: 276-773-2298 e-mail: info@corehandf.com web: www.nautiluscommercial.com SALES &... - Page 12 NOTES...
