15. Select the video input you are configuring from the drop down menu
16. Select zone you are configuring from the drop down box.
Note: Any configuration carried out at this stage is for the selected video input and
zone, you will need to save the settings and then select another zone to configure the
whole area.

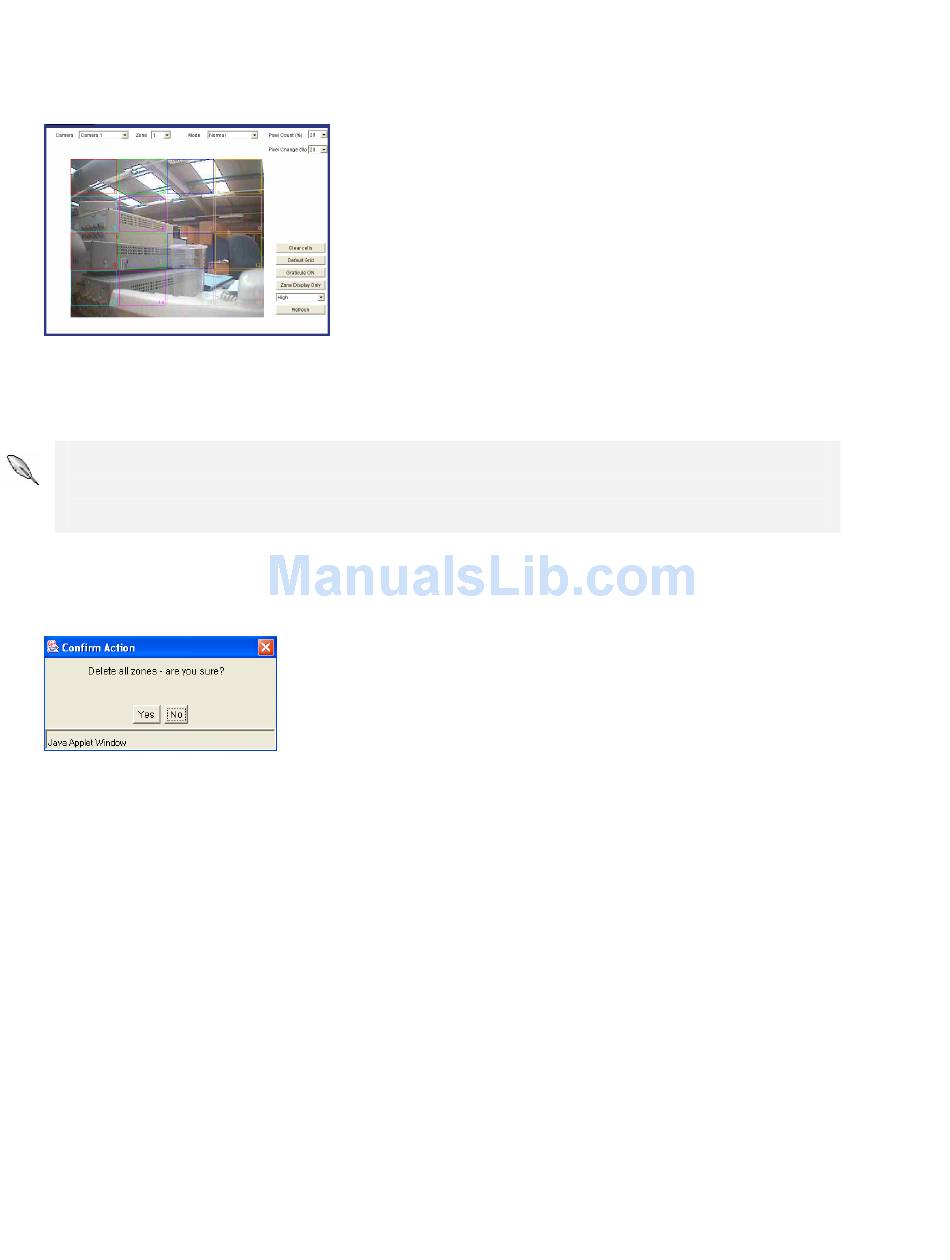

17. If the default zones are not positioned over the areas you intend to allocate motion detection there is
an option to clear all cells, you will be presented with a prompt to check you want them cells
deleting, select Yes
18. To set a zone click at the edge of the area where you want to place the zone, move to the
opposite corner where the zone will sit and click again, a zone area will be displayed over the area
19. It is possible to have a grid overlay displayed over the image to assist you in placing the zone areas,
select graticule on
