Dedicated Micros dv-ip Setup Manual page 143

Function
Video Input
Resolution
Input Path
V and H Position
Show Trace
RGB
Dedicated Micros Ltd
Description

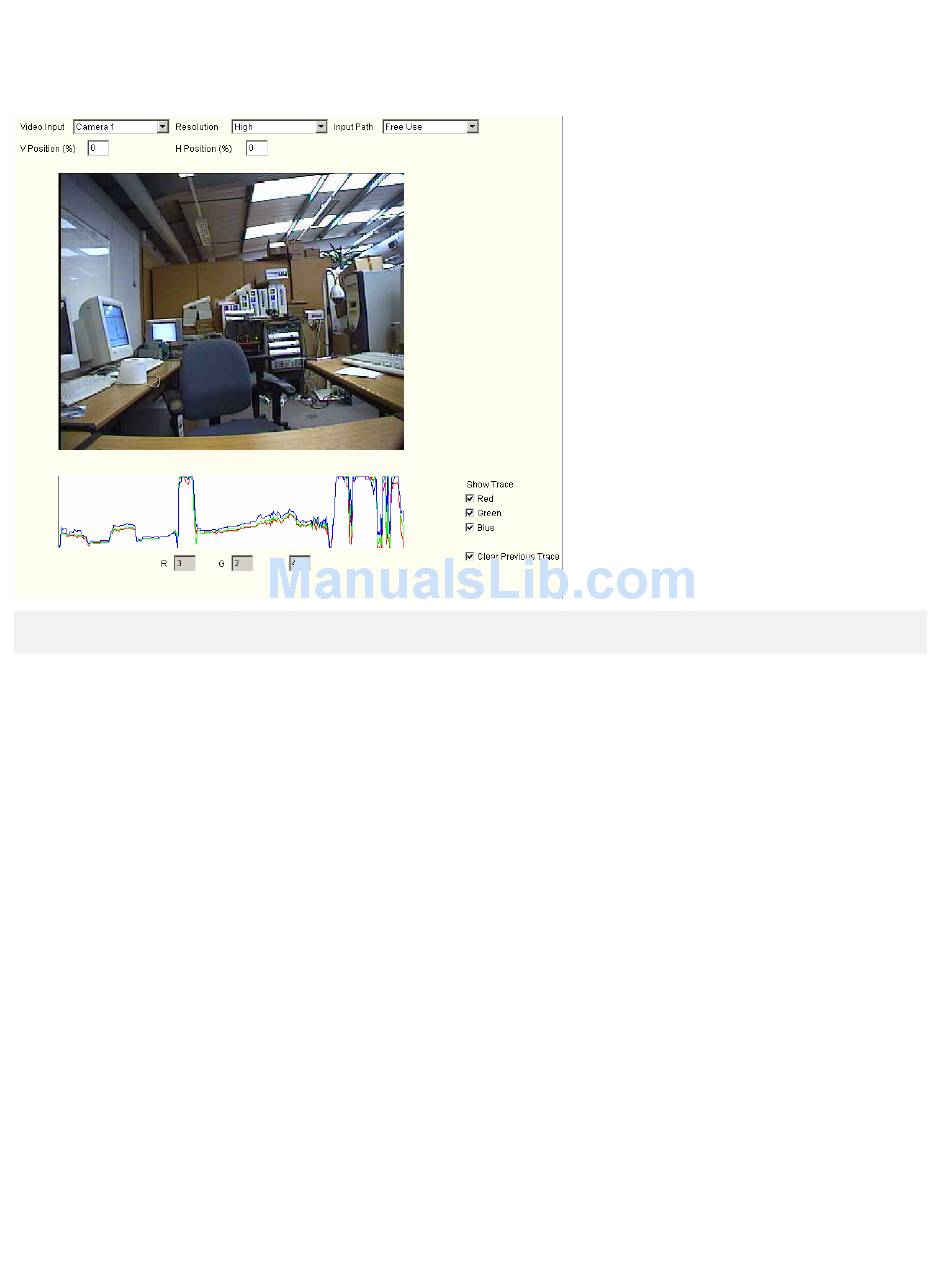

This is a drop down list of the available video inputs on the DV-IP Server
This is a drop down list allowing selection of the resolution being viewed/traced (high,
medium and low)
This is a drop down list allowing selection between free use or preselector 1 – 4
When a line of video is selected this identifies the vertical and horizontal position. For the
overall image these values will be 0
This allows the R, G, B trace to be enabled or disabled
These are the calculated values for the RGB contents within the whole image or the selected
line
