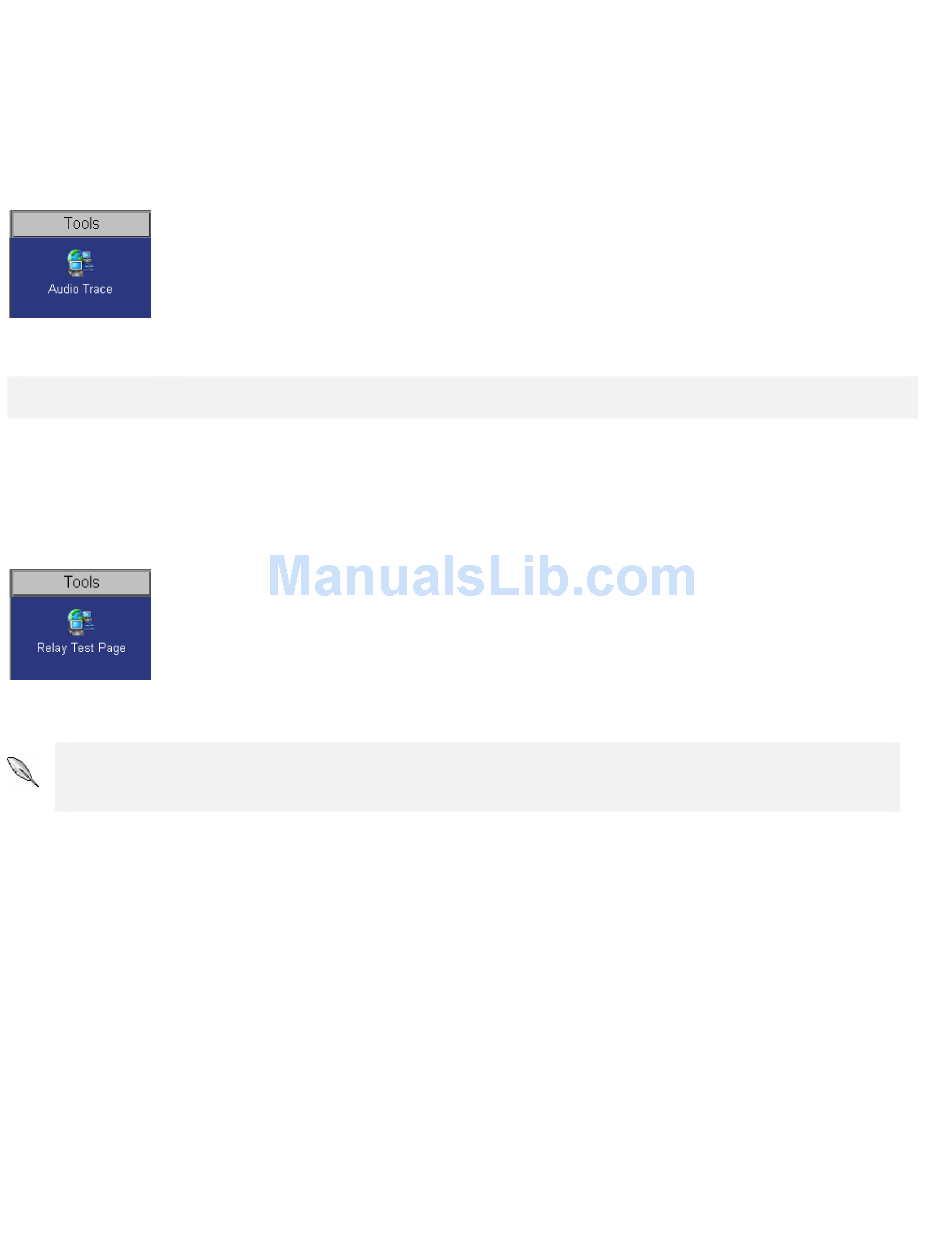

Audio Trace
It is possible to use the audio trace option to identify if audio is being transmitted or
received by the DV-IP Server.
To view the audio select the line in or line out buttons, the corresponding audio signal will be traced.
Function
Description
Audio Line Out
This will produce a trace of the audio out line on the DV-IP Server. This is represented by a red line
Audio Line In
This will produce a trace of the audio in line on the DV-IP Server. This is represented by a blue line
Relay Test Page
The relay test page allows you to test the onboard relays and the additional relay
modules. The DV-IP Server supports four onboard relays and up to two additional
relay modules, these modules have sixteen relay connections each.
To test the relay select the tick box adjacent to the relay number, save the configuration. Press the OK
button and this will trigger the corresponding relay.
Note: If the onboard relays have been configured to have the default settings it will not be
possible to test these, the corresponding text box will be disabled.
Page 136
Dedicated Micros Ltd
