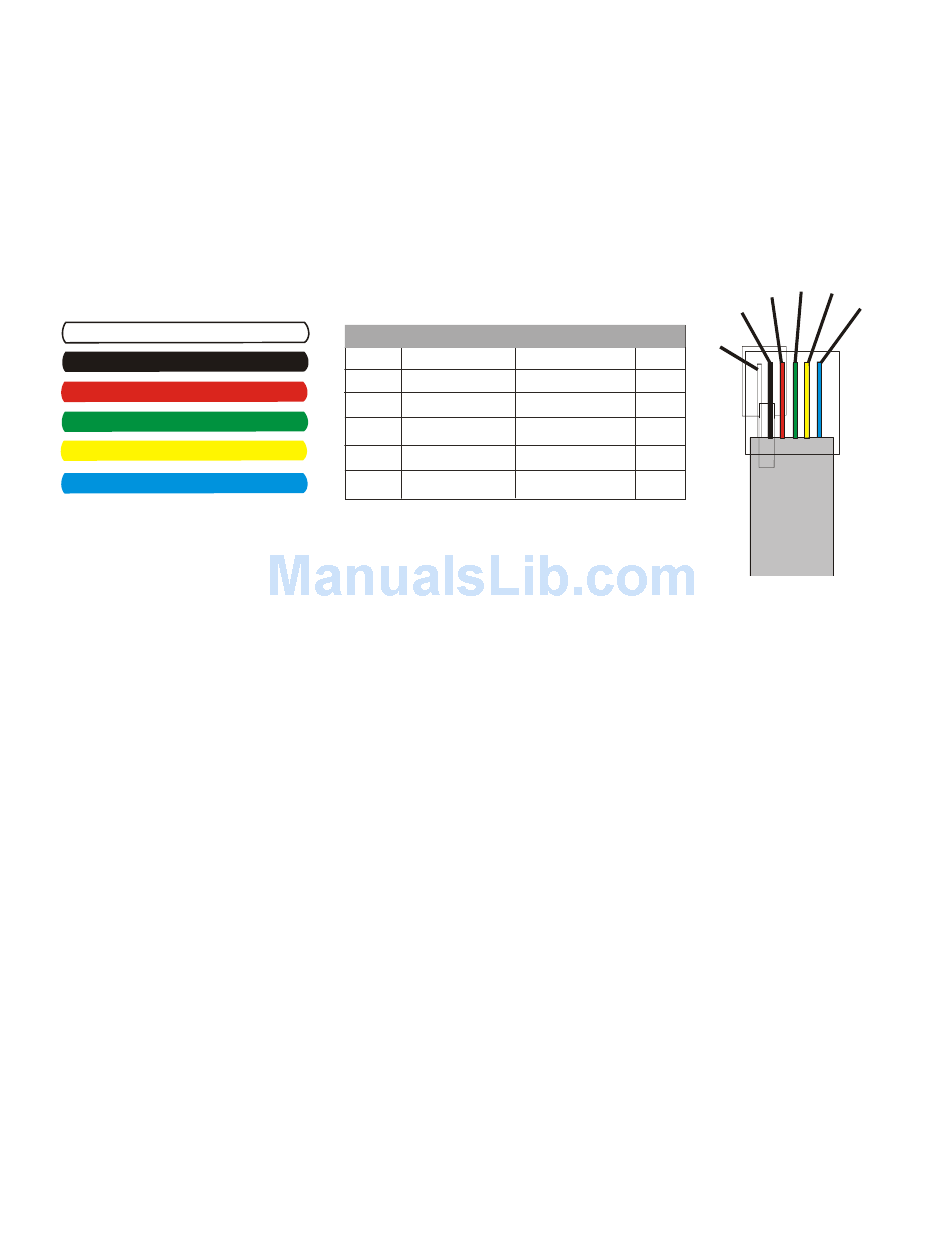

DM 485 Bus Cable (supplied)

The DM 485 Bus cable is supplied for connectivity to peripheral DM devices such as Alarm Modules and
Relay Modules.
Page 166
Pin Colour Code Pin Assignment
1 White Not used
2 Black Ground
3 Red 485 bus data A
4 Green 485 bus data B
5 Yellow Ground
6 Blue +8V d.c. Supply
4
3
2
Pin 1
1
2
3
4
5
6
