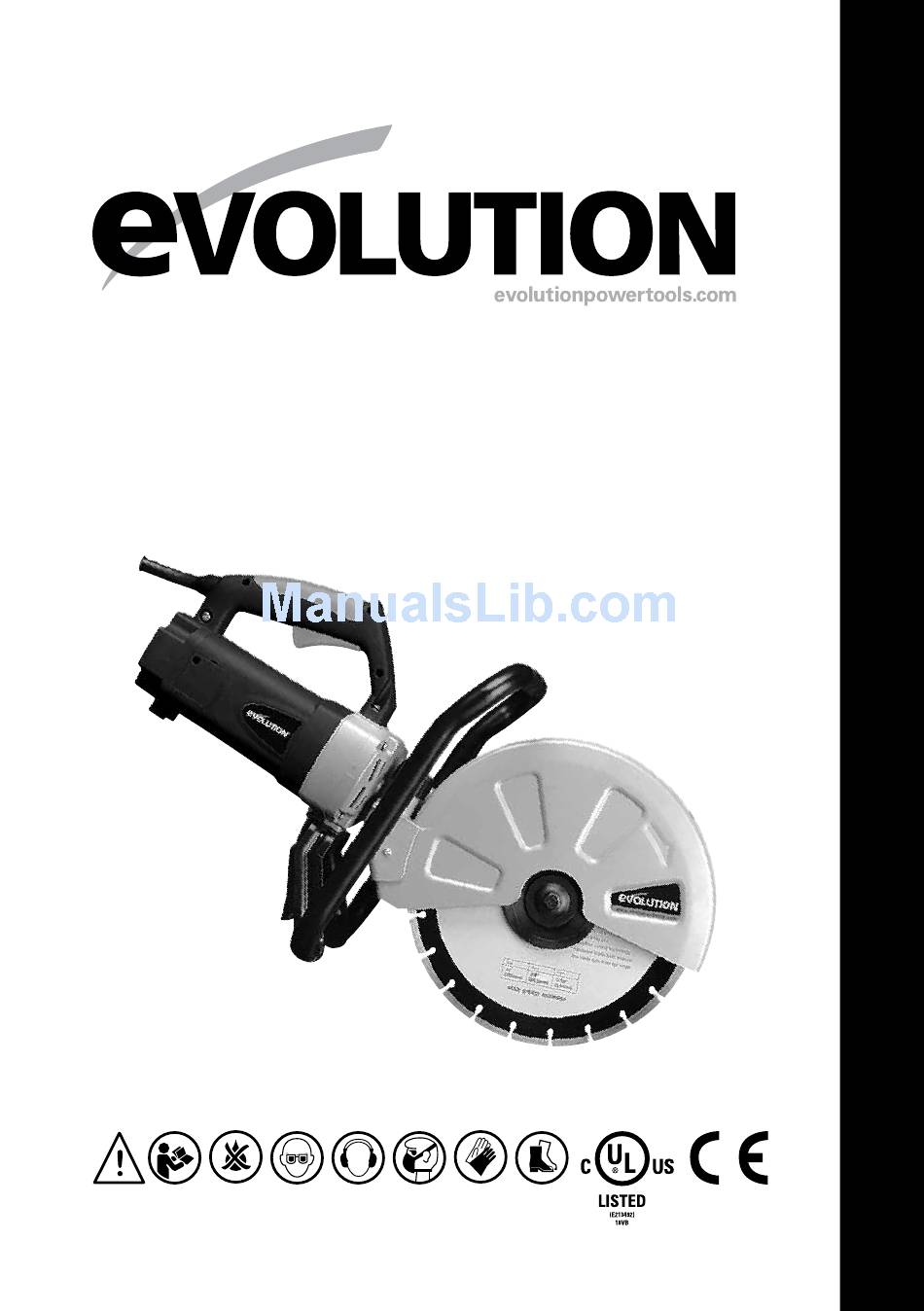

- Page 1 ® DISC CUTTER Original Instructions Written in UK English Date Published: 30 / 01 / 2014...
-
Page 2: Table Of Contents
www.evolutionpowertools.com TABLE OF CONTENTS INTRODUCTION Page 03 Guarantee Page 03 Machine Specification Page 04 Vibration Page 04 Labels and Symbols Page 05 Intended use of this Power Tool Page 06 Prohibited use of this Power Tool Page 06 SAFETY PRECAUTIONS Page 06 Electrical Safety Page 06... -
Page 3: Introduction
You can also scan the QR code or paddles etc. In no event shall Evolution found on the A4 leaflet with a Smart Phone. Power Tools be liable for loss or damage... -
Page 4: Machine Specification
www.evolutionpowertools.com SPECIFICATIONS POWER METRIC IMPERIAL UK/EU Motor (230-240V ~ 50Hz) 2400W UK Motor (110V ~ 50Hz) 2000W USA Motor (120V ~ 60Hz) 2400W *Power peaks at 20A during start-up, levels at 15A. MACHINE METRIC IMPERIAL Maximum Depth of Cut 100mm 4”... -
Page 5: Labels And Symbols
£ • The measurement and assessment of warning and/or instruction labels are missing human exposure to hand-transmitted or damaged. Contact Evolution Power Tools vibration in the workplace is given in: for replacement labels. BS EN ISO 5349-1:2001 and Note: All or some of the following symbols BS EN ISO 5349-2:2002 • Many factors can influence the actual... -
Page 6: Intended Use Of This Power Tool
30ms. Always check the operation of the WARNING: This product is a Hand Operated residual current device (R.C.D.) before using Disc Cutter and must only be used as such. It the machine. must not be modified in any way, or used to... - Page 7 www.evolutionpowertools.com (2.4) (2.2) 1) General Power Tool Safety Warnings 3) General Power Tool Safety Warnings [Work area safety] [Personal Safety]. a) Keep work area clean and well lit. a) Stay alert, watch what you are doing and use common sense when operating Cluttered or dark areas invite accidents.
- Page 8 www.evolutionpowertools.com (2.5) (2.6) 4) General Power Tool Safety Warnings 5) General Power Tool Safety Warnings [Power tool use and care]. [Service] a) Do not force the power tool. Use the a) Have your power tool serviced by a qualified repair person using only identical correct power tool for your application.
-
Page 9: Additional Safety Instructions
The disc flanges and £ from the mains supply before changing discs, arbor bolt were specially designed for your servicing, cleaning or adjusting the Disc Cutter. machine to provide optimum performance and safety of operation. • Keep your hands away from cutting area and • This saw is equipped with an approved cord... -
Page 10: Getting Started
Check carefully with this machine the following accessories to ensure that the machine is in good are also available from the Evolution online condition and account for all the accessories shop at www.evolutionpowertools.com or listed in this manual. Also make sure that all from your local retailer. -
Page 11: Machine Overview

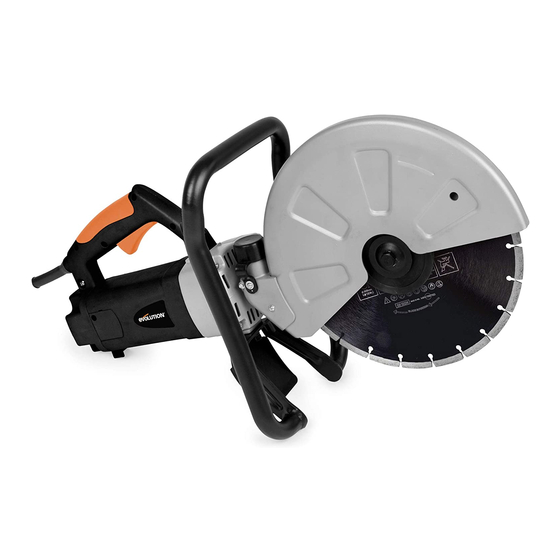

www.evolutionpowertools.com MACHINE OVERVIEW 5. Adjustable Disc Guard 1. Safety Lock Button 6. Arbor Lock Button 2. Trigger Switch 7. Anti-vibration Front handle 3. Dust Extraction Port 4. Cutting Disc... -
Page 12: Assembly And Preparation
www.evolutionpowertools.com OPERATING INSTRUCTIONS INSTALLING/REMOVING A DISC WARNING: Always disconnect the machine from the power £ supply before attempting to install or remove a Cutting Disc. • Ensure that the machines arbor and the blade flanges are clean and free from dust and debris. • Ensure that the direction of rotation marked on the blade matches the direction of rotation marked on the machines guard. - Page 13 • When the dust extraction machine is no longer required, remove it from the Disc Cutter and replace the rubber cap to FIG. 5a & 5b the dust extraction port.
- Page 14 www.evolutionpowertools.com CUTTING ADVICE PRE-CUTTING ADVICE • Ensure that the power supply matches the requirements specified on the machines rating plate. • Ensure that the machines trigger switch is in the ‘OFF’ position. If the machine is connected to a power source with the trigger switch in the ‘ON’ position, the machine could start operating immediately with the possibility of a serious accident occurring.
- Page 15 www.evolutionpowertools.com CUTTING ADVICE Mark out all the cutting lines on the workpiece using suitable media – pencil, crayon, chalk etc. All cutting lines should be clear and readily visible. • If possible support the workpiece in such a way that it is possible to predict what will happen, and that the cut will remain stable and open while cutting.
-
Page 16: Maintenance
www.evolutionpowertools.com MAINTENANCE (6.1) Note: Any maintenance must be carried out with the machine switched off and disconnected from the mains/battery power supply. Check that all safety features and guards are operating correctly on a regular basis. Only use this machine if all guards/ safety features are fully operational. -
Page 17: Service Parts Diagram
www.evolutionpowertools.com PARTS DIAGRAM Parts Diagrams can also be downloaded from www.evolutionpowertools.com... -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below. - Page 19 www.evolutionpowertools.com NOTES...
- Page 20 Evolution Power Tools Ltd Evolution Power Tools LLC Venture One 8363 Research Drive Longacre Close Davenport Holbrook Industrial Estate Iowa Sheffield 52806 S20 3FR +44 (0)114 251 1022 866-EVO-TOOL エボリューション Evolution Power Tools Ltd パワーツール株式会社 61 Avenue Lafontaine 〒544-0031 33560 大阪府大阪市生野区...
