Original Instructions
Originalanweisungen
Rage7-S 230V UK (075-0001)
Rage7-S 110V UK (075-0002)
Rage7-S 230V eU (075-0003)
Rage7-S 120V US (075-0004)
Rage7-S bladeS (075-0200)
Originally written in UK English
Date Published: 15 / 06 / 2015
EN
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rage7-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolution Rage7-S

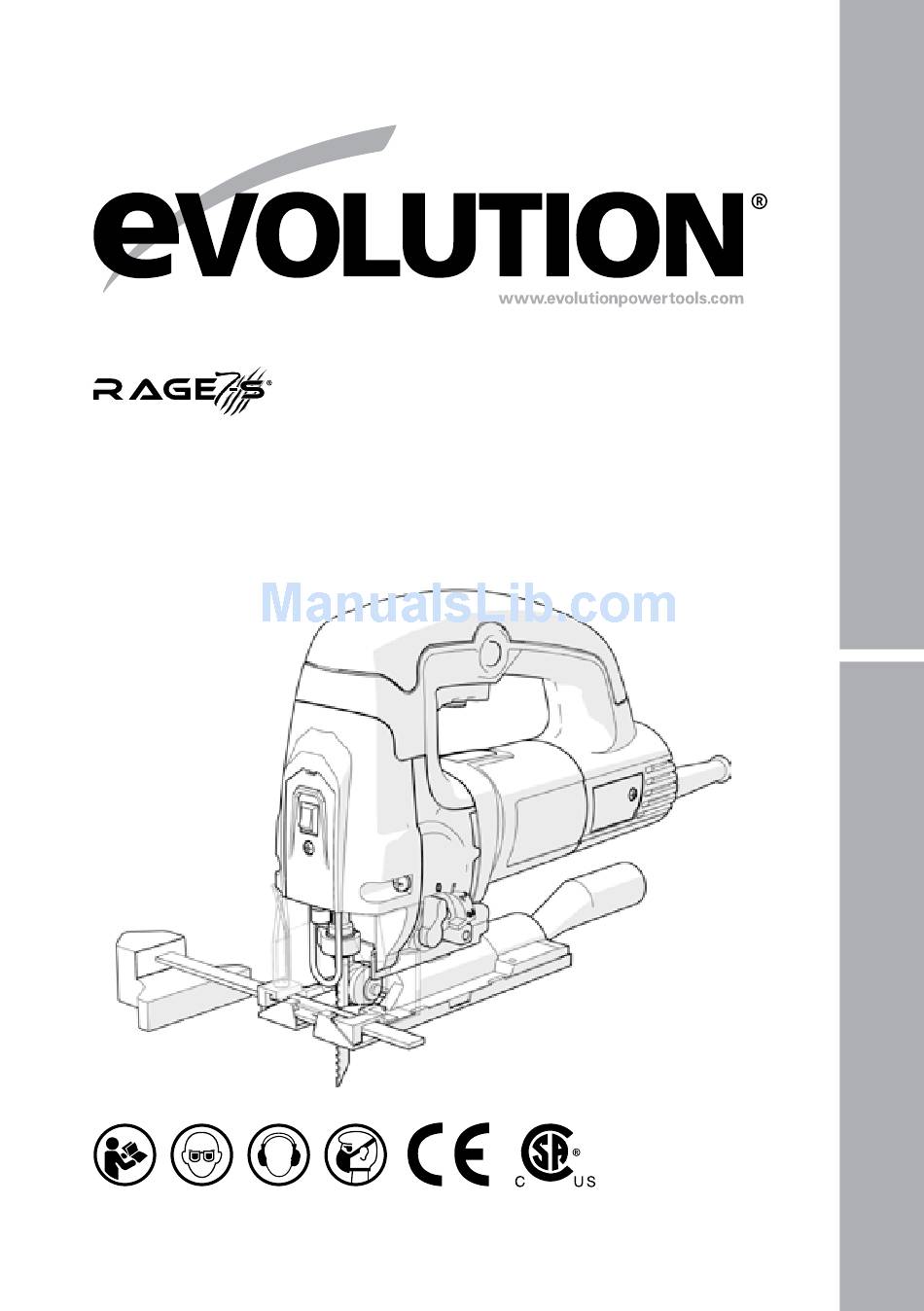

  • Page 1 Original Instructions Originalanweisungen Rage7-S 230V UK (075-0001) Rage7-S 110V UK (075-0002) Rage7-S 230V eU (075-0003) Rage7-S 120V US (075-0004) Rage7-S bladeS (075-0200) Originally written in UK English Date Published: 15 / 06 / 2015...
  • Page 2: Table Of Contents

    www.evolutionpowertools.com TABLE OF CONTENTS English Page 2 Deutsch Seite 20 INTrOduCTION Important information Page 3 Guarantee Page 3 Jigsaw Specification Page 4 Labels and Symbols Page 5 Vibration Page 5 Intended use of this Power Tool Page 5 Prohibited use of this Power Tool Page 5 SAFETY PrECAuTIONS Outdoor Use...
  • Page 3: Guarantee

    A5 leaflet with a Smart Phone. This fitness or to waive any of the foregoing terms will enable you to validate your machine’s of sale and none shall be binding on Evolution guarantee period via Evolution’s website by Power Tools.
  • Page 4: Jigsaw Specification

    www.evolutionpowertools.com JIGSAW SPECIFICATIONS MACHINE SPECIFICATIONS Motor 230V ~ 50Hz 710W (6A) Motor 110V ~ 60Hz 600 (5.2A RPM No Load 0 - 3000min (rpm) Recommended Max Duty Cycle 30mins Stroke Length 26mm Insulation Class Weight (Gross) 4.1kg (9lbs) CuTTING CAPACITIES Wood 80mm Metal...
  • Page 5: Labels And Symbols

    WARNING: Do not operate machine if warning under standard conditions in accordance with: BS EN 610291.2009. and/or instruction labels are missing or damaged. Contact Evolution Power Tools or WARNING: The vibration emission during your supplier for replacement labels. Note: All or some of the following symbols actual use of the power tool can differ from the may appear in the manual or on the product.
  • Page 6: Outdoor Use

    www.evolutionpowertools.com WARNING: This machine is not intended 1) General Power Tool Safety Warnings [Work area safety] for use by persons (including children) a) Keep work area clean and well lit. with reduced physical, sensory or mental capabilities, or lack of experience and Cluttered or dark areas invite accidents.
  • Page 7 www.evolutionpowertools.com drugs, alcohol or medication. A moment of tools. Such preventative safety measures reduce inattention while operating power tools may the risk of starting the power tool accidentally. d) Store idle power tools out of the reach result in serious personal injury. b) Use personal protective equipment.
  • Page 8: Additional Safety Instructions

    Failure to follow this rule could result in serious personal injury. ADDITIONAL SAFETY RULES FOR YOUR EVOLUTION JIGSAW VIBRATION WARNING: When using this machine the 1. Do not expose to rain or water.
  • Page 9: Items Supplied

    www.evolutionpowertools.com and the type and condition of the saw blade being used. Before each use, such factors should be assessed, and where possible appropriate working practices adopted. Managing these factors can help reduce the effects of vibration: HANDLING • Handle the machine with care, allowing the machine to do the work. • Avoid using excessive physical effort on any of the machines controls.
  • Page 10: Machine Overview

    www.evolutionpowertools.com MACHINE OVERVIEW Cutting Blade Laser Switch Trigger Switch Dust Extraction Locking Button Chip Guard Rotary Control Parallel Edge Guide Cutting Action Selection Switch Air Blower...
  • Page 11: Operating Instructions

    www.evolutionpowertools.com OPERATION 1. INSTALLING OR REMOVING A BLADE (Fig. 1) WARNING: The jigsaw must be disconnected from the power supply and the blade must not be facing the operator when installing or removing the blade. Installation: • Check that the jigsaw blade is of the correct type. • Insert the blade into the chuck ensuring that the blade teeth face forwards.
  • Page 12: Trigger Switch Locking Button

    www.evolutionpowertools.com 3. TRIGGER SWITCH LOCKING BUTTON (Fig. 3c) • Pull the trigger fully and rotate the rotary control until the desired speed is obtained. • Push in the speed locking button to lock the trigger at the selected speed. • Press the trigger switch gently and then release to disengage the selected speed and to switch the machine off. 4. CUTTING ACTION SELECTION SWITCH (Fig. 4) This jigsaw has a 4 position switch (0-3) located on the Left Fig 3 (b) Hand side of the machine just behind the blade.
  • Page 13: Laser Cutting Guide

    • Never exchange the laser module assembly for a different type or class of laser. • Repairs to the laser module must only be conducted by Evolution Power Tools or their authorized agent. REPLACEMENT OF LASER BATTERIES Power for the Laser Guide is provided by two (2) ‘AAA’ Cells. Fig 6 When exhausted these should be replaced.
  • Page 14: Chip Guards

    www.evolutionpowertools.com • Loosen the socket headed screw that holds the footplate to the machine. (Fig. 8) • Tilt the footplate to the desired angle. To engage one of positive stops it will be necessary to slide the footplate backwards or forwards depending upon the stop required. • Tighten the socket-headed screw carefully so as not to damage the threads. • Re-install the Dust Extraction Adaptor tube. • Refit the plastic footplate shoe ensuring that all six (6) securing lugs (2 to the front of the footplate and 2 either side) Fig 8 are correctly seated.
  • Page 15: Parallel Edge Guide

    www.evolutionpowertools.com 8. PARALLEL EDGE GUIDE The supplied Parallel Edge Guide can be fitted to either side of the machine. It can be a useful aid when cutting straight lines that are parallel to an existing edge. To fit the Parallel Edge Guide: • Loosen the cross-head screw found in the Parallel Edge Guide clamp and slide the clamp from the arm of the guide.
  • Page 16: Cutting Advice

    www.evolutionpowertools.com During operations the use of a dust extraction Always use a blade that is capable of cutting machine will help keep the workplace clean metal, and secure the workpiece securely, and dust free, enhancing operator safety and if practicable, in a vice or similar clamping comfort and aiding operator cutting accuracy.
  • Page 17: Maintenance

    MAINTENANCE Your Evolution Jigsaw requires no major additional lubrication or maintenance. Occasionally apply a drop of light machine oil to the blade guide spindle. There are no user serviceable parts in your Evolution Jigsaw.
  • Page 18: Declaration Of Conformity

    In accordance with EN ISO 17050-1:2004 The manufacturer of the product covered by this declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
  • Page 19 www.evolutionpowertools.com...
  • Page 20 Evolution Power Tools Ltd Evolution Power Tools LLC Evolution Power Tools SAS Venture One 8363 Research Drive 61 Avenue Lafontaine Longacre Close Davenport 33560 Holbrook Industrial Estate Iowa Carbon-Blanc Sheffield 52806 Bordeaux S20 3FR +44 (0)114 251 1022 +1 866-EVO-TOOL...
