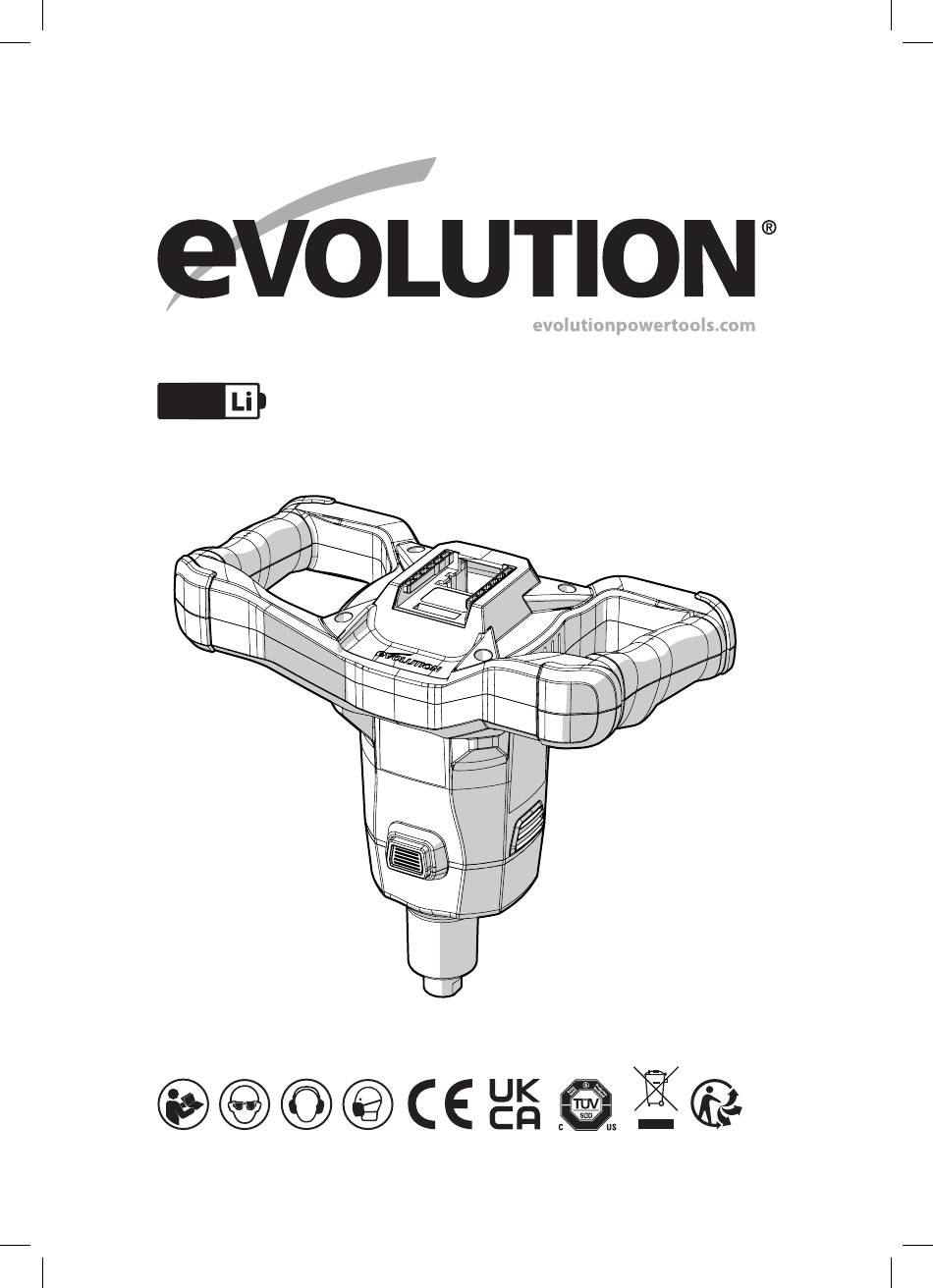

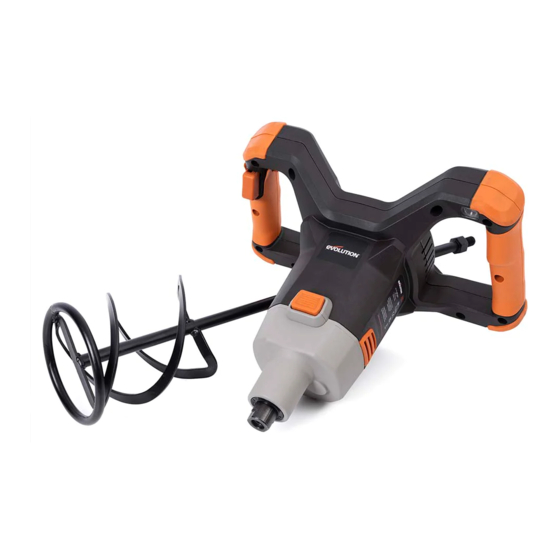

- Page 1 R120 Original Instructions Original written in UK English Date Published: 22/03/2022...
- Page 2 For your own safety, if you are uncertain about any aspect of using this equipment please access the relevant technical helpline, the number of which can be found on the Evolution Power Tools website. We operate several helplines throughout our worldwide organisation, but technical help is also available from your supplier.
-
Page 3: Machine Specifications
www.evolutionpowertools.com R120MXR-Li SPECIFICATIONS MACHINE SPECIFICATIONS UK/EU/AUS Product Code 087-0001, 087-0001-K, 087-0001A-K, 087-0004, 087-0004A 087-0001A, 087-0001B, 087-0001B-K, 087-0001C Power 18V d.c. 20V d.c. No Load Speed 0-650min 0-650rpm Weight without paddle 3.9kg 8.6lbs (no battery) Weight with paddle 5.1kg 11.2lbs (no battery) Max capacity Paddle size (supplied) 120mm... -
Page 4: Labels And Symbols
EN 62841-1 and EN 62841-2-10 missing or damaged. Contact Evolution Power Tools for replacement labels. • Many factors can influence the actual Note: All or some of the following symbols vibration level during operation e.g. - Page 5 WARNING: This product is a Hand Held cordless Wear Safety Goggles paddle mixer and has been designed to be used with Evolution mixing paddles. Only use accessories designed for use in this machine Wear Ear Protection and/or those recommended specifically by Evolution Power Tools Ltd.
- Page 6 www.evolutionpowertools.com WARNING: Read all safety warnings, f) If operating a power tool in a damp location instructions, illustrations and specifications is unavoidable, use a residual current device provided with this power tool. Failure to (RCD) protected supply. Use of an RCD reduces follow the warnings and instructions may result the risk of electric shock.
-
Page 7: Health Advice
www.evolutionpowertools.com storing power tools. Such preventative safety g) Follow all charging instructions and measures reduce the risk of starting the power tool do not charge the battery pack or tool outside the temperature range specified in accidentally. d) Store idle power tools out of the reach of the instructions. -
Page 8: Additional Safety Instructions
www.evolutionpowertools.com has been deposited on surfaces, hand to mouth speed until the optimum mixing performance contact can result in the ingestion of lead. is achieved. Exposure to even low levels of lead can cause irreversible brain and nervous system damage. •... -
Page 9: Getting Started - Unpacking
087-0001B, not been tested with this product, Use of such 087-0001BK, 087-0001C, accessories with this tool could be hazardous. 087-0004A To reduce the risk of injury only Evolution recommended accessories should be used with Instruction this product. Manual Cordless paddle... - Page 10 www.evolutionpowertools.com R120MXR-Li MACHINE OVERVIEW 1. BATTERY PACK 2. LED WORK LIGHT 3. ARBOUR LOCK BUTTON 4. VARIABLE SPEED TRIGGER 5. ONBOARD TOOL STORAGE 6. MOTOR UNIT 7. HANDLES 8. PADDLE...
- Page 11 ASSEMBLY The Mixing Paddle Note: The Evolution paddle mixer is supplied with a multipurpose mixing paddle. Inserting and removing the mixing paddle (Fig.1) 1) Insert the paddle thread into the arbor by turning it clockwise. 2) Tighten the paddle by pushing and holding the arbor lock button and using the wrench supplied tighten the paddle clockwise.
-
Page 12: Troubleshooting
www.evolutionpowertools.com Caution: ALWAYS reduce the speed when ENVIRONMENTAL PROTECTION submerging the mixer in the material or lifting it out. Once the mixer is fully submerged, increase Never place any electric power tools in your the speed again to ensure that the motor is household refuse. -
Page 13: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below. - Page 14 EC DECLARATION OF CONFORMITY The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
- Page 15 www.evolutionpowertools.com Notes...
- Page 16 Total Tools (Importing) Pty Ltd Evolution Power Tools SAS 20 Thackray Road 61 Avenue Lafontaine Port Melbourne 33560, Carbon-Blanc Vic 3207 Bordeaux T: 03 9261 1900 T: +33 (0)5 57 30 61 89 Evolution Power Tools Ltd Evolution Power Tools LLC...
