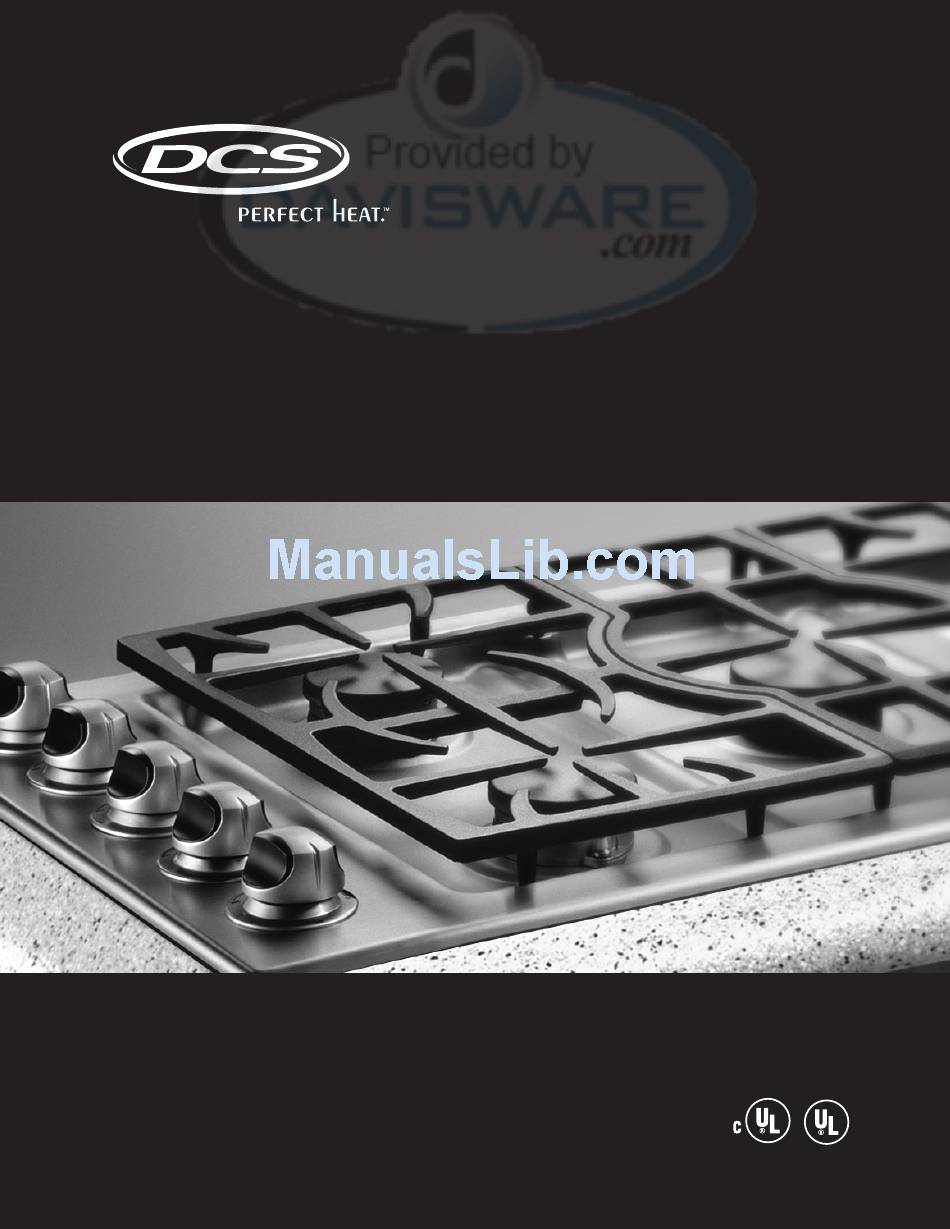

- Page 1 PROFESSIONAL 5 BURNER 36” DROP-IN COOKTOP Installation Manual MODELS CT-365SS CT-365BK CT-365WT...
- Page 2 A MESSAGE TO OUR CUSTOMERS Thank you for selecting this DCS Professional Drop-In Cooktop. Because of this appliance’s unique features we have developed this Use and Care Guide. It contains valuable information on how to properly operate and maintain your new appliance for years of safe and enjoyable cooking.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY PRACTICES AND PRECAUTIONS ....................3-5 COOKTOP USE Control Knobs................................6 Cooking Utensils..............................6 Burners ..................................6 Electronic Igniters ..............................7 Burner Efficiency..............................7 Flame Height................................7 Burner Grates ................................7 CARE AND MAINTENANCE Cleaning the Cooktop............................8 Cleaning the Burner Grates ..........................8 Cleaning the Burners .............................9 Cleaning the Igniters..............................9 PRODUCT MEASUREMENT SPECIFICATIONS ...................10... -
Page 4: Safety Practices And Precautions
SAFETY PRACTICES & PRECAUTIONS When properly cared for, your new DCS Appliance has been designed to be a safe, reliable cooking appliance. When using this restaurant caliber appliance, use it with extreme care, as this type appliance provides intense heat and can increase the accident potential. Basic safety precautions must be followed when using kitchen appliances, including the following: Read this Use and Care Manual thoroughly before using your new appliance. - Page 5 SAFETY PRACTICES & PRECAUTIONS Be certain to use only dry pot holders; moist or damp pot holders on hot surfaces may cause burn injury from steam. Do not use a towel or other bulky cloth in place of pot holders. Do not let pot holders touch hot burners, or burner grates.
- Page 6 SAFETY PRACTICES & PRECAUTIONS Clean the ventilator hood and filters above the cooktop frequently so grease from cooking vapor does not accumulate. Turn the ventilator OFF in case of fire or when intentionally “flaming” liquor or other spirits on the cooktop. The blower, if in operation, could unsafely spread the flames. Do not obstruct the flow of combustion or ventilation air to the appliance.
-
Page 7: Cooktop Use
COOKTOP USE CAUTION: For warranty coverage, DCS requires that burner adjustments be made by a qualified technician at the time of installation. Extreme care should be used when adjustments are made after installation. Improper or lack of adjustments will void your warranty. -
Page 8: Electronic Igniters
COOKTOP USE BURNER MAX. SIMMER LOCATION Btu/hr Btu/hr Btu/hr NAT & LP NAT & LP 1,2,4,5 11,000 10,000 3,000 1,200 17,500 15,000 3,000 1,200 Cabinet front ELECTRONIC IGNITERS: If a burner does not re-ignite, listen for the clicking sound. If the igniter is not clicking, turn off the burner. -
Page 9: Care And Maintenance
CARE AND MAINTENANCE CLEANING THE COOKTOP WARNING: Be careful cleaning any part of this appliance while hot. All parts of the appliance can be cleaned with hot soapy water, rinsed, dried and buffed to a shine with a soft, heavy pile cloth. Always try this first, as it is the mildest cleaning procedure. 1. -
Page 10: Cleaning The Burners
CARE AND MAINTENANCE CLEANING THE BURNERS: For proper lighting and performance keep, the burners clean. It is necessary to clean the burners if they do not light although the igniter clicks, whenever there has been a severe boil over or when the flame doesn’t burn blue. -
Page 11: Product Measurement Specifications
PRODUCT MEASUREMENT SPECIFICATIONS Dimensions show below are for product reference only. REFER TO THE PRODUCT INSTALLATION GUIDE FOR CABINET PREPARATION AND CUTOUT SPECIFICATIONS. Top View " " Front View 34-1/2 " Side View 5-1/2" " 19-1/2"... -
Page 12: Wiring Diagram
WIRING DIAGRAM... -
Page 13: Warranty
All repair labor and parts found to be defective due to materials or workmanship for one full year from Authorized Factory Agent date of purchase.Service must be provided by during normal working hours. DCS WILL NOT COVER: Installation or start-up. Normal adjustment to burners, gas regulators, etc. Cleaning of igniters and/or general maintenance. -
Page 14: Service
SERVICE HOW TO OBTAIN SERVICE: For warranty service, contact DCS Customer Service at (888) 281-5698. Before you call, please have the following information ready: Model Number Serial Number Date of installation A brief description of the problem Your satisfaction is of the utmost importance to us. If a problem cannot be resolved to your satisfaction,... - Page 15 Fax: 714.372.7001 Customer Service: 888.281.5698 www.dcsappliances.com As product improvement is an ongoing process at DCS, we reserve the right to change specifications or design without notice. DCS améliore constamment ses produits et se réserve le droit de modifier les spécifications ou la conception de ses produits sans aucun préavis.
