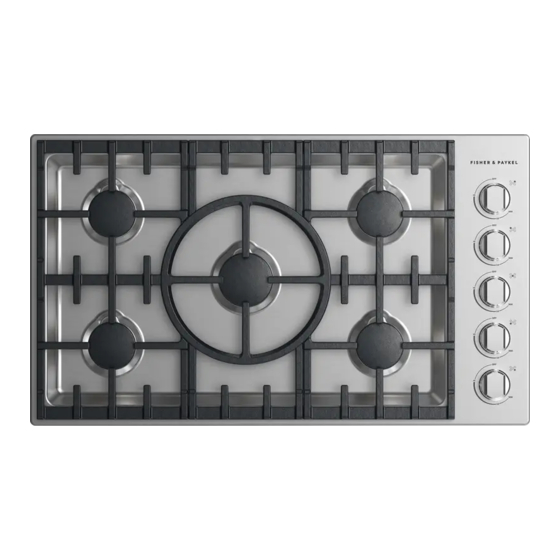

This service manual is designed to provide you
with the information needed to properly test
and repair the Professional 5 Burner 36" Drop-
In Cooktop. Your understanding of the design
and function of this appliance is an important
part of the repair process. If you need assistance,
please contact us.
Sincerely,
DCS, Customer Care
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Do not turn on any electrical switch; do not
use any phone in your building.
2. Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
3. If you cannot reach your gas supplier, call
the fire department. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DCS CT-365SS
Summary of Contents for DCS CT-365SS
- Page 1 TO OUR VALUED SERVICE PARTNERS DCS is a leading manufacturer of premium Should we be needed, our team of customer quality cooking and speciality appliances for care professionals are available to help you re- both residential and professional use. We are...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page GENERAL ..................................3 Safety Practices & Precautions ........................3 Model/Serial Number Location & Identification ................... 6 INSTALLATION INSTRUCTIONS ........................7 Product Measurement Specifications ....................... 7 Proper Ventilation Requirements ....................... 8 Preparing For The Installation ........................9 Cabinet Preparation............................ -
Page 3: General
When installed and maintained properly, your • If by some chance a burner goes out and does new DCS Appliance has been designed to be a not re-ignite and gas escapes, open a window safe, reliable cooking appliance. When using or a door to let the room air out. - Page 4 • Do not use water on grease fires. Turn all • Only certain types of glass, heatproof glass- burners OFF, then smother fire with baking ceramic, ceramic, earthen ware, or other soda or use a dry chemical or foam-type fire glazed utensils are suitable for use on the extinguisher.
- Page 5 • For proper lighting and performance of the • Clean the ventilator hood and filters above cooktop burners, keep the burner ports clean. the cooktop frequently so grease from cook- It may be necessary to clean these when there ing vapor does not accumulate. is a boil over or when the burner does not •...
-
Page 6: Model/Serial Number Location & Identification
Model Number / Serial Sticker Location (On Bottom Of Box At This Corner) SERIAL NUMBER 03F02358B MODEL NUMBER CT-365SS 02358 A. Year Of Manufacture 03 = 2003 A. Product Identifier B. Month Of Year CT = Cooktop A = January, B = February, C = March, D = April, E = May, B. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS PRODUCT MEASUREMENT SPECIFICATIONS To be sure that the CUTOUT for the cooktop is to page 10 for “Cabinet Preparation.” correct and to ensure a clean installation, refer Top View " " Front View " 34-1/2 " Side View 5-1/2"... -
Page 8: Proper Ventilation Requirements
PROPER VENTILATION REQUIREMENTS IMPORTANT INFORMATION mum ventilation is not required. For best smoke elimination, the lower edge of the hood should CAUTION: BE INSTALLED A MINIMUM OF 30″ TO A MAXI- Ventilation hoods and blowers are designed for MUM OF 36″ ABOVE THE COOKING SURFACE. If use with single wall ducting. -
Page 9: Preparing For The Installation
PREPARING FOR THE INSTALLATION Be sure to read page 8 for the proper ventila- NOTE: Some installations may not have ad- tion requirements before you begin. equate clearance at the front for the Z-shaped retaining bracket. In those cases, use the L- When making your CUTOUT refer to page 10 for bracket provided. -
Page 10: Cabinet Preparation
Grounding must comply with all appli- provided for the cooktop for a good fit. See il- cable codes. lustrations below for specifications. DROP-IN COOKTOP DROP-IN COOKTOP CUTOUT DIMENSIONS CUTOUT DIMENSIONS (W/DCS DD-36SS) 2-1/4" Min. clearance 34-3/4" Width to combustible surface 34-3/4" Width 5" Min. -
Page 11: Gas Hookup
GAS HOOKUP Verify the type of gas supplied to the location. sible location from the front for the purpose of The cooktop is shipped from the factory set up shutting off the gas supply. Make sure the gas for Natural Gas or LP (propane), depending on supply is turned off at the wall valve before con- the specific model ordered. -
Page 12: Electrical Supply
ELECTRICAL SUPPLY POWER REQUIREMENTS The power supply cord must be plugged into a mating grounding type receptacle, connected 120 VAC, 60 Hz., single phase. to a correctly polarized 120 Volt circuit. If the CT-365: 0.10 Amp. Max. circuit does not have a grounding type recep- (Use 15 Amp. -
Page 13: Installer Final Checklist
INSTALLER FINAL CHECKLIST GENERAL OPERATION q Placement of Unit. q All internal packing materials are removed, i.e. below grates, around knobs, etc. q Specified clearance maintained to cabinet surfaces. q Bezels centered on burner knobs and knobs turn freely. q Unit Level- front to back, side to side. q Each burner lights satisfactorily, both indi- q All packaging material and tie straps re- vidually and with other burners operating. -
Page 14: Lp/Natural Conversion Kit Instructions
LP/NATURAL CONVERSION KIT INSTRUCTIONS CKL—CT365 NATURAL TO LP PARTS INCLUDED CKN—CT365 LP TO NATURAL Main Burner Orifice (5) Simmer Burner Orifice (5) Before you begin, read these instructions Valve Bypass Jet (5) completely and carefully. Conversion Sticker (1) WARNING: Valve Stem C-Clip (5) If the information in these instructions is not followed exactly, fire, explosion or TOOLS NEEDED... - Page 15 1. CHECKING THE GAS SUPPLY Measure the incoming gas pressure to the regu- lator. Regulator With the installation of this conversion kit, the cooktop should operate on LP gas at 10″ of wa- ter column pressure and on natural gas at 4″ of water column pressure.
- Page 16 2. REPLACE ALL BURNER 5. Lift each burner base and disconnect the push-on wire terminal from the spark AND VALVE ORIFICES electrode. Place the burner base assem- A. To Remove The Cooktop blies in a safe place. 6. Raise the cooktop front about 6″ and Cooktop removal is required for: disconnect the 6 pin connector under •...
- Page 17 B. To Access Burner Orifices/Jets: Unscrew the orifice using an appropriately sized conventional socket or nut driver. Use a piece of sticky tape in socket to prevent the loose orifice from falling out. Verify that the orifices in the kit match the chart sizes and replace the orifices.
- Page 18 3. CONVERT THE PRESSURE 5. ASSEMBLE BURNERS AND CHECK REGULATOR IGNITION Replace the cooktop, reconnect the wiring and WARNING: reassemble the burners as shown on page 16. Do not remove the pressure regulator Check for proper ignition: from the cooktop. •...
-
Page 19: Burner Operation
6. CHECK THE FLAME QUALITY Burner Adjustment Check for proper burner flame characteristics. There is no air shutter adjustment, etc. on this burner. The only adjustment available is to clean Burner flames should be blue and stable. Some the burners and clean or replace orifices. yellow tipping may be normal on LP Gas. - Page 20 7. Complete The Conversion Sticker Complete the required information on the Con- unit next to Rating Plate Sticker. The Conver- version Sticker and adhere to the bottom of the sion sticker MUST reflect the change in fuel. A. From Natural Gas To LP B.
-
Page 21: Use And Care
USE AND CARE COOKTOP USE CAUTION: BURNERS For warranty coverage, DCS requires that Your new Drop-In Cooktop is equipped with burner adjustments be made by a qualified burners typical of those used in restaurants. technician at the time of installation. Extreme... - Page 22 • For safety reasons the flame must never BURNER MAX. SIMMER extend beyond the bottom of the cook- LOCATION Btu/hr Btu/hr Btu/hr ing utensil. NAT & LP NAT & LP • Never allow flames to curl up the side of 1,2,4,5 11,000 10,000 3,000...
-
Page 23: Care And Maintenance
CARE AND MAINTENANCE CLEANING THE COOKTOP BRAND NAMES In this section, the use of name brands is in- WARNING: tended only to indicate a type of cleaner. This Be careful cleaning any part of this appli- does not constitute an endorsement. The omis- ance while hot. - Page 24 CLEANING THE BURNERS Notch on the top side of the Simmer Ring. In- correct alignment will produce a potentially For proper lighting and performance keep the dangerous flame and poor burner performance. burners clean. It is necessary to clean the burn- ers if they do not light although the igniter clicks, whenever there has been a severe boil over or when the flame doesn’t burn blue.
-
Page 25: Servicing The Components
SERVICING THE COMPONENTS This section instructs the technician on how to service each component inside the cooktop. The component locations are shown below. COMPONENT LOCATIONS Indicator Light (5 Places) Transformer Ignition Switch Re-Ignition Module Jet Holder Simmer Jet Holder & Valve (5 Places) (5 Places) (5 Places) -
Page 26: Removing The Cooktop
REMOVING THE COOKTOP 3. Remove the burner cap and the port ring WARNING from each of the burners. Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Burner Cap Port Ring Failure to do so can result in death or electrical shock. - Page 27 6. Lift the burner bases off the cooktop and 8. Remove the two screws from each of the disconnect the wires from the electrode ter- bezels and remove the bezels. minals. Push each of the wires into the lower box after you disconnect them. Screws Push Wire Into Lower Box...
-
Page 28: Removing An Indicator Light
REMOVING AN INDICATOR LIGHT 5. Disconnect the indicator light wire connec- WARNING tor from the harness and remove the light. Wire Tie Indicator Light Electrical Shock Hazard Disconnect power before servicing. Wire Connector Replace all parts and panels before operating. Failure to do so can result in death or Bracket Holes electrical shock. -
Page 29: Removing The Transformer
REMOVING THE TRANSFORMER c) White (secondary) wire from the red ig- WARNING nition switch wire. d) White (secondary) wire ring connector from the ground screw. 6. Remove the two transformer screws, and remove the transformer and two felt wash- ers below the transformer bracket from the Electrical Shock Hazard unit. -
Page 30: Removing An Ignition Switch And Valve
REMOVING AN IGNITION SWITCH AND VALVE 4. To remove an ignition switch: WARNING a) Push the C-ring off the valve shaft. b) Disconnect the wires from the switch terminals. Wires Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. - Page 31 5. To remove a valve: c) Remove the two 5/16″ hex-head screws from the valve clamp and pull the valve a) Remove the ignition switch from the off the manifold. valve (see step 4). b) Remove the 3/8″ fitting from the valve inlet line and the 1/2″...
-
Page 32: Removing The Re-Ignition Module
REMOVING THE RE-IGNITION MODULE WARNING Electrode Wires Screw Electrical Shock Hazard Wire Tie Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. CAUTION: Make sure that the cooktop compo- nents are cool before you begin. -
Page 33: Removing A Jet Holder And Jet Holder Simmer
REMOVING A JET HOLDER AND JET HOLDER SIMMER 4. To remove a jet holder simmer: WARNING a) Remove the 3/8″ gas line fitting. b) Remove the 5/8″ nut and remove the jet holder simmer from the bracket. Electrical Shock Hazard Disconnect power before servicing. -
Page 34: Testing The Components
TESTING THE COMPONENTS WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. Before testing any of the components, perform • All tests/checks should be made with a VOM the following checks: or DVM having a sensitivity of 20,000 ohms- per-volt DC, or greater. -
Page 35: Technical Data Sheet #17677
TECHNICAL DATA SHEET #17677 ELECTRONIC IGNITION AND RELIGHT IMPORTANT SAFETY NOTICE Surface burners are lighted by electronic igni- This information is intended for use by tion, eliminating the need for standing pilot persons possessing adequate back- lights with constantly burning flames. grounds of electrical, electronic and All the igniters make clicking sounds and spark mechanical experience. - Page 36 To remove the cooktop: 7. Using a 1-1/16” socket, unscrew and remove the five (5) brass Venturis. 1. The cooktop MUST be properly supported from the bottom before the maintop can be 8. Carefully lift the five (5) Burner Bases and removed.
-
Page 37: Troubleshooting
TROUBLESHOOTING Problem: Random sparking. Possible Causes Problem: Burners do not light. (External): • Clogged burner port ring. Possible Causes: • Electrical plug is not • Improper electrical supply. plugged into a live power outlet. • Excess air movement in • Burner parts not replaced burner area. - Page 38 BURNER OPERATION Both flames are lit when the knob is between “HI” and “LO” . Only the simmer flame is lit when Two flames are used on all five burners. These the knob is in the “SIMMER” position. dual flame burners have an upper ring of main burner ports, which produce the main flame for Burner Adjustment high heat cooking from the “HI”...
- Page 39 SCHEMATIC DIAGRAM WIRING DIAGRAM PRELIMINARY...
-
Page 40: Parts List
PARTS LIST Key # Qty. Part # Description Key # Qty. Part # Description 12273 C Burner Cap 13390-02 Valve, “C” - Nat. 12271 C Port Ring 13390-03 Valve, “C” - LP 15219 Venturi Nut 13390-06 Valve, “D” - Nat. 12280 C Simmer Ring 13390-03... - Page 42 VIEW LOOKING INSIDE MAIN TOP ASSEMBLY 5 Point Gas Re-igniter (230 Vac 50 Hz 15mA) ELECTRODE WIRE VIEW LOOKING INSIDE FIRE BOX ASSEMBLY...
-
Page 43: Warranty
All repair labor and parts found to be defective due to materials or workmanship for one full year from date of purchase. Service must be provided by Authorized Factory Agent during normal working hours. DCS WILL NOT COVER: Installation or startup. Normal adjustment to burners, gas regulators, etc. - Page 44 — NOTES —...
