WaterLogic WL4 Firewall Technical Manual page 6

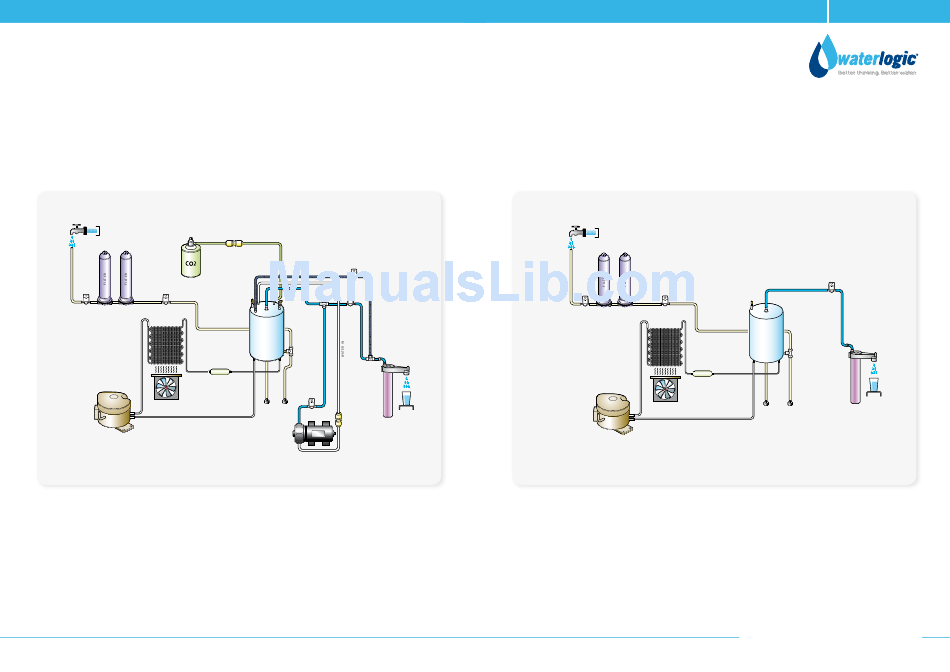

Main Parts Layout
Cold and Sparkling
IN (Water)
CHECK VALVE
SOLENOID SOLENOID
VALVE 1 VALVE 3
COLD
SENSOR
CONDENSER
FILTER
DRYER
COMPRESSOR
FAN MOTOR
CO In
2
SOLENOID
VALVE 6
SPARKLING WATER OUT
SOLENOID
COLD
VALVE 5
WATER
OUT
SAFETY
VALVE
COLD &
SPARKLING
TANK
SOLENOID
VALVE 4
DRAIN DRAIN
VALVE VALVE
CHECK
VALVE
PUMP
10
Main Parts Layout
Cold Only
IN (Water)
SOLENOID SOLENOID
VALVE 1 VALVE 3
CONDENSER
FILTER
DRYER
COMPRESSOR
FAN MOTOR
SOLENOID
VALVE 5
COLD WATER OUT
COLD
SENSOR
COLD
TANK
DRAIN DRAIN
VALVE VALVE
