Summary of Contents for Clarke RANGER 64
-

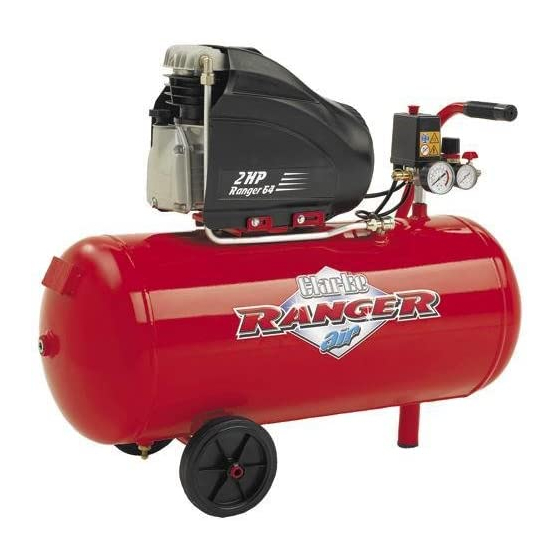

Page 1: Air Compressor
RANGER 64 RANGER 64 AIR COMPRESSOR AIR COMPRESSOR OPERATION & MAINTENANCE INSTRUCTIONS © 0507... -
Page 2: Table Of Contents
Thank you for purchasing this Clarke Ranger air compressor which is fitted with a 50 litre air receiver. Please read this leaflet thoroughly and carefully follow all instructions. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the compressor giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING! As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked, or ignored, personal injury to the operator, or damage to property may result. It is in your own interest to read and pay attention to the following rules: WARNING! When using the air compressor, you should follow basic safety precautions... - Page 4 SAFETY PRECAUTIONS TRAINING: Prior to use all operators should become familiar with the instructions in this booklet. In particular, become familiar with the ON/OFF control for emergency stopping. ALWAYS USE EYE PROTECTION: When operating the air compressor, always use eye protection, and make sure that other people in the work area are also using eye protection.
- Page 5 SAFETY PRECAUTIONS STORE THE AIR COMPRESSOR PROPERLY: When not in use the air compressor should be stored in a secure, dry place out of the reach of children. Always lock up the storage area. PROTECT YOUR HEARING: Ear protection should be worn when operating this compressor.
- Page 6 SAFETY PRECAUTIONS KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE: Check the screws and covers periodically. ADEQUATE VENTILATION: The compressor should only be used in areas with adequate ventilation and should not be exposed to heat, or used near inflammable substances. NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS OPERATING ABNORMALLY: If the compressor operates unusually or makes strange noises, switch off immediately and purge the air tank.
- Page 7 SAFETY PRECAUTIONS NEVER STOP THE COMPRESSOR BY REMOVING THE PLUG OR SWITCHING OFF AT THE MAINS SUPPLY: Always use the On/Off switch on the compressor. NEVER OPERATE WITHOUT ALL GUARDS IN PLACE: Never operate without all guards or safety features in place and in proper working order. NEVER OPERATE IN THE PRESENCE OF FLAMMABLE LIQUIDS OR GASES: The air compressor produces sparks during operation.
-
Page 8: Warning Symbols
WARNING SYMBOLS READ THIS INSTRUCTION BOOKLET CAREFULLY BEFORE POSITIONING, OPERATING OR ADJUSTING THE COMPRESSOR. Risk of electric shock. The compressor must be disconnected from the mains supply before removing any covers. Do not use in a damp environment. Risk of accidental start-up. The compressor could start automatically in the event of a power cut and subsequent reset. -
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. WARNING! THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &... -
Page 10: Parts Identification
PARTS IDENTIFICATION Motor housing Drain valve On/Off switch (red button) 10 Compressed air reservoir Main reservoir pressure gauge 11 Wheel Output pressure regulator 12 Data plate Regulator locking ring 13 Pressure regulator and cut-out Output pressure gauge 14 Oil dipstick Trolley handle 15 Outlet tap Support foot... -
Page 11: Assembly
ASSEMBLY WARNING! Before assembling and using the air compressor, make sure that you have read and understood all of the safety instructions. Installation Take care when lifting the compressor from the packaging. Use the rear handle and place one hand under the front of the tank. Caution! Do not lift the compressor by the Pressure regulator and cut-out. -
Page 12: Preparation For Use
PREPARING FOR USE Before connecting your compressor to the mains supply, check the following:- • The mains voltage is 230V. • The ON/OFF switch is in the OFF (lower) position. • The pressure regulator should be set at its lowest setting, i.e. turned fully anticlockwise. - Page 13 PREPARING FOR USE Check the Oil Lift the dipstick out of the oil reservoir. See figure 7. Ensure the oil level is between the min and max marks on the dipstick. See figure 8. • If needed top up the reservoir using suitable oil, taking care not to exceed the maximum mark.
-
Page 14: Operating Instructions
OPERATING INSTRUCTIONS Switching the air compressor ON The compressor will make a continuous loud noise when the tank is charging - this is normal. Lift the red On/Off switch located on top of the pressure regulator to switch the compressor ON. •... -
Page 15: Reset Button
OPERATING INSTRUCTIONS Switching the air compressor OFF To switch the air compressor off, Close the outlet tap and press down on the on/off button (red button). Switch off the mains supply and remove the plug. • You should never leave the compressor air reservoir unattended while under pressure. - Page 16 OPERATING INSTRUCTIONS Draining the reservoir Caution! It is important to drain the reservoir before storage. Switch the air compressor off, by pressing down the red on/off button, and remove the plug from the mains supply. • Place a suitable container beneath the compressor to catch any condensate.
- Page 17 Daily Check Oil Ensure the oil level is between the min and max marks on the dipstick. See page 13 and top-up if necessary - (use Clarke SAE40 compressor oil, available from your local dealer). Drain the tank After use, always open the drain valve to ensure that any liquid that may have condensed, is drained off.
-
Page 18: Routine Maintenance
Make sure that all bolts are securely tightened. Clean all the external parts of the compressor. After the first 100 hours use, replace the oil completely using Clarke SAE40 compressor oil. Then replace the oil after every 500 hours of operation or every 6 months. -
Page 19: Troubleshooting
TROUBLE SHOOTING With considerate use, your Clarke Ranger Air Compressor should provide you with long and trouble free service. Routine checks should be made on both the electrical supply as well as on all the compressed air lines and connections. If any fault appears, the reason for which is not immediately obvious, we recommend that you contact your local Clarke dealer. -
Page 20: Exploded Diagram
PARTS DIAGRAM... -
Page 21: Exploded Diagram Parts List
PUMP SF2500/2M 230/50 FN516HQ21604 SCREW FN161173025 SPARE PARTS AND SERVICE For spare parts and service, please contact your nearest dealer, or Clarke International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com... -
Page 22: Specifications
SPECIFICATIONS Electrical Supply ........230 V, 1 Phase 50Hz Max. Operating Pressure ....... 8 bar (116 lbf/in Motor Rating ........... 2 HP Air Displacement ........7.8 cuft/min (185 l/m) Air Receiver ..........50 litre Net Weight ..........30kg Dimensions ( L x W x H ) ......800 x 350 x 660 mm Duty Cycle ..........
