- Page 1 RANGER 30 & 60 RANGER 30 & 60 AIR COMPRESSOR AIR COMPRESSOR OPERATING & MAINTENANCE INSTRUCTIONS 0503...
- Page 2 FN216HN0001 PARTS and SERVICE CONTACTS For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com...

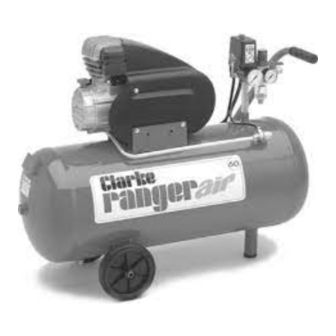

- Page 3 Thank you for purchasing this Ranger Air Compressor which is available in two COMPRESSOR configurations - RANGER 30, fitted with a 24 litre air receiver and RANGER 60, fitted with a 50 litre receiver. Before attempting to operate the machine, please read this leaflet thoroughly and carefully follow the instructions given.
- Page 4 NEVER operate your compressor with any guards removed. NEVER carry out electrical or mechanical repairs unless you are fully qualified. If problems occur, contact your Clarke dealer. NEVER exert any strain on electrical cables and ensure that air hoses are not tangled or wrapped around machinery etc.
- Page 5 If in any doubt, DO NOT attempt any connections or repairs yourself. Consult a 60 Valve FN047113001 77 Mains Lead w/plug 1 FN101GA0200 qualified electrician, or your local Clarke international dealer. 61 Spring FN047113002 78 Screw 1 FN014013042 62 Washer...
- Page 6 (Ref. Fig. 2) Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE INTERNATIONAL reserve the right to change specifications at any time without prior notice. Always consult the machines Data Plate NOTE: If you intend using your compressor for spraying, read also the ‘Helpful...
- Page 7 (see also item 1) when pressure reduces to process in any way. However, should problems develop with the cut-in, cut out approx 95 psi. settings, consult your local Clarke international Service Dep’t. NOTE: Air leaking from Faulty non-return First drain the receiver Fig.
- Page 8 Water may also be drained off when the system is under pressure. The 3. After the first 100 hours use, replace the oil completely using Clarke method of operation is shown in Fig 4.
