Summary of Contents for Crestron MP-AMP40-70/100V
- Page 1 Crestron MP-AMP40-70/100V Media Presentation Audio Amplifier Operations & Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR...
-
Page 3: Regulatory Compliance
United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. -
Page 5: Table Of Contents
Crestron MP-AMP40-70/100V Media Presentation Audio Amplifier Contents Media Presentation Audio Amplifier: MP-AMP40-70/100V Introduction ..........................1 Features and Functions ....................1 Applications......................... 2 Specifications ......................3 Physical Description....................4 Setup ............................7 Installation ........................7 Hardware Hookup ....................... 7 Problem Solving ........................8 Troubleshooting...................... -
Page 7: Media Presentation Audio Amplifier: Mp-Amp40-70/100V
2. The MP-AMP40-70V and MP-AMP40-100V are tested by an NRTL (Nationally Recognized Testing Laboratory) and comply to ANSI/UL2043 (Fire Test For Products Installed in Air-Handling Spaces). Full compliance requires plenum rated cables such as Crestron CBL-KAUDIO-RCAM2-L-P-50 audio cable, CBL-SPK-P-35 speaker cable, and CBL-PWR-EXT24V-P-6 DC power extension cable. Please note that the included power pack is not ANSI/UL2043 compliant, and thus cannot be installed in an air-handling space unless enclosed in a suitable plenum-rated enclosure. -
Page 8: Applications
AV switcher. Rotary controls provide for adjusting the overall output volume, as well as bass and treble. Applications The following diagram shows an MP-AMP40-70/100V in a typical application. * Stereo input is internally summed to mono. 2 Media Presentation Audio Amplifier: MP-AMP40-70/100V... -
Page 9: Specifications
Width 8.12 in (207 mm), 9.40 (239 mm) with bracket Depth 5.87 in (149 mm) Weight 3.4 lb (1.6 kg) (Continued on following page) Media Presentation Audio Amplifier: MP-AMP40-70/100V 3 Operations & Installation Guide – DOC. 7354A... -

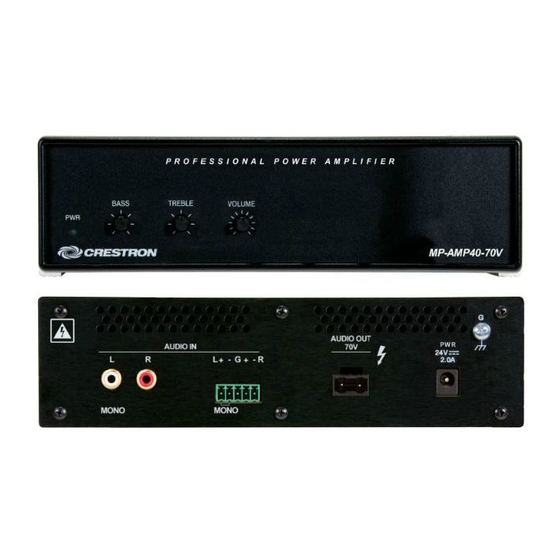

Page 10: Physical Description
The MP-AMP40-70V and MP-AMP40-100V are tested by an NRTL (Nationally Recognized Testing Laboratory) and comply to ANSI/UL2043 (Fire Test For Products Installed in Air-Handling Spaces). Full compliance requires plenum rated cables such as Crestron CBL-KAUDIO-RCAM2-L-P-50 audio cable, CBL-SPK-P-35 speaker cable, and CBL-PWR-EXT24V-P-6 DC power extension cable. Please note that the included power pack is not ANSI/UL2043 compliant, and thus cannot be installed in an air-handling space unless enclosed in a suitable plenum-rated enclosure. - Page 11 Maximum Input Level: 2 Vrms MONO, 1 Vrms Stereo; Input Impedance: 15 kΩ; MONO 3 ft (0.9 m) stereo RCA-RCA cable included (Continued on following page) Media Presentation Audio Amplifier: MP-AMP40-70/100V 5 Operations & Installation Guide – DOC. 7354A...
- Page 12 VOLUME Rotary input level adjustment Interface connectors for AUDIO IN, and AUDIO OUT ports are provided with the unit. Stereo input is internally summed to mono. 6 Media Presentation Audio Amplifier: MP-AMP40-70/100V Operations & Installation Guide – DOC. 7354A...
-
Page 13: Setup
2. Slowly turn the VOLUME control clockwise until the audio is at a comfortable level. 3. Adjust the TREBLE and BASS controls to suit personal preference. Media Presentation Audio Amplifier: MP-AMP40-70/100V 7 Operations & Installation Guide – DOC. 7354A... -
Page 14: Problem Solving
Crestron worldwide offices on the Crestron Web site (www.crestron.com/offices) for assistance within a particular geographic region. To post a question about Crestron products, log onto the Online Help section of the Crestron Web site (www.crestron.com/onlinehelp). First-time users must establish a user account to fully benefit from all available features. -
Page 15: Return And Warranty Policies
(property or economic damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the purchaser for a third party. - Page 16 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 7354A 15 Volvo Drive Rockleigh, NJ 07647 (2033569) Tel: 888.CRESTRON 12.12 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
