Elevator Servo - (5G); Aileron Servo - (9G) - Twisted Hobbys EXTRA SLICK Assembly Manual

Note: before installing any radio gear and Note:
Note: Note:
or electronics hook everything up and test
for proper function. Also at this time note
the center locations of all servos and attach
the quick links to the horns as shown.
Determine which servos will be used for
the Elevator and Rudder and attach the
horns accordingly, doing this now is less
tedious than doing it after the servos are
glued in.

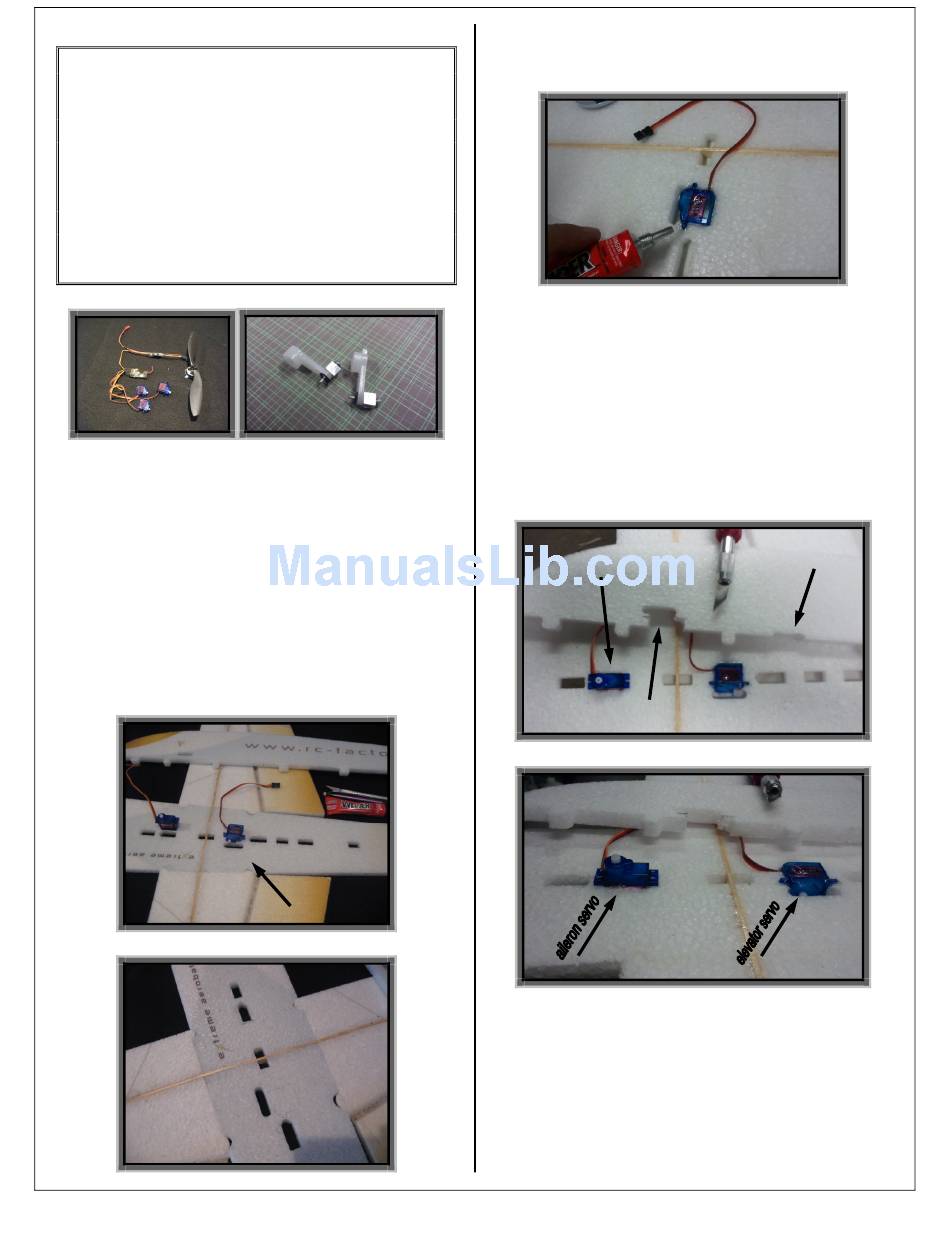

Elevator Servo - (5g)

With the bottom of the plane facing up,
locate the Elevator Servo as shown. Trace
around the servo and remove the necessary
foam for it to fit snuggly in position. If you have
chosen to install the servo horns, gently move
the arm so that it is parallel to the servo, and
allows the servo to lay flat in the cutout
Rev: 2012.04.23a
Glue with Welders or Hot Glue
Aileron Servo – (9g)
With the nose of the aircraft hanging off
the work surface, locate the aileron servo in
position as shown. Cut/remove the lower
fuselage clearance slots for both the aileron
and elevator servos as shown below
Insert and glue aileron servo into place,
make sure the servo tabs sit flush with the
bottom of the main wing. Now the lower
fuselage can be glued to the wing / elevator
assembly
9
