Note: The pictures in this assembly manual are
of the Edge 540. Construction for the all of the
32" airframes is very similar and can be built
with this manual.

Wing / Nose / Elevator

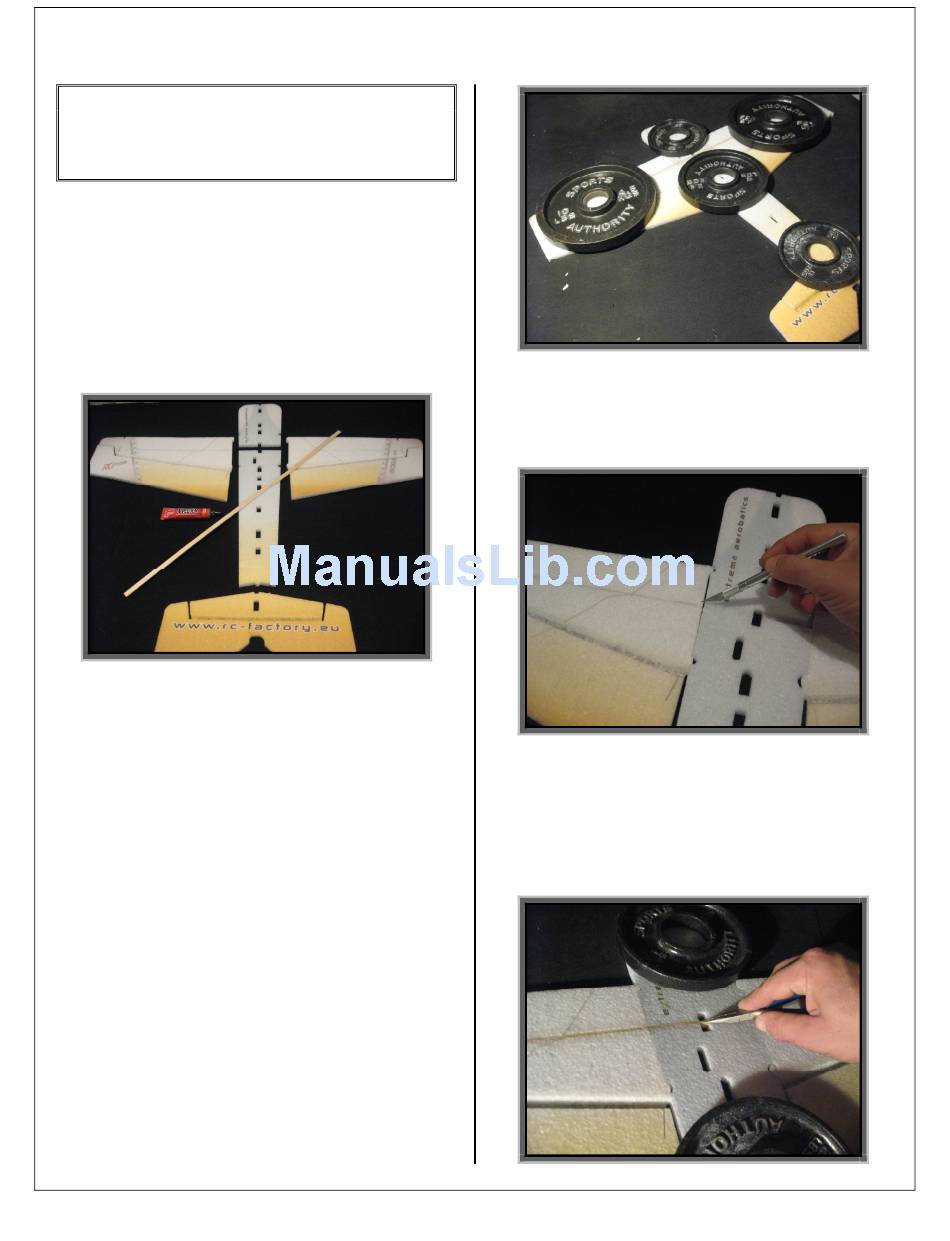

Glue the left and right wings, fuselage
center section, nose piece and elevator
together. Start by laying all needed parts
on a flat table, test fit, noticing the
different size tabs before gluing
Glue each part together than apply a few
weights on the top of each to ensure each is
sitting flat and connected while drying.
Right after gluing, make sure the wings are
square to the fuselage center section and
measure from the tips of the elevator to the
tips of the wing, and make equal. This will
ensure proper orientation between wing
and elevator
Rev: 2012.04.23a

Assembly

Assembly Assembly Assembly
Keep the slot in the main wing clear of
glue and open, so that it can accept the
main spare
Coat both sides of the spar with Welders
glue. Spread the foam and lay in the spar.
Use tape weight or stick pins to make sure
the joint is held firm until dry
