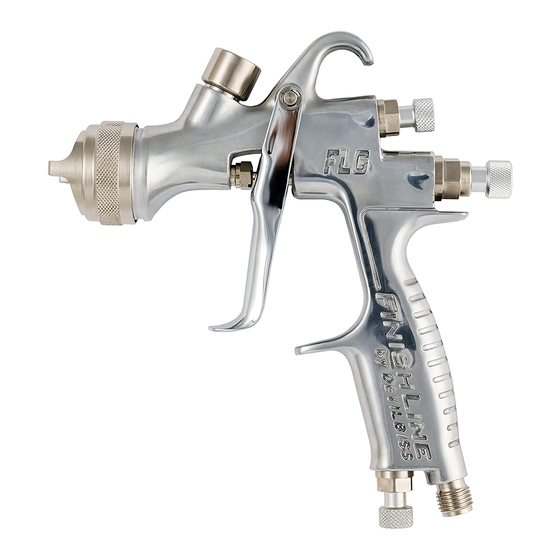

DeVilbiss FLG-G5-14 Operation Manual

Transtech gravity spray gun
Hide thumbs

Advertisement

Quick Links

SB-E-2-790
ISS.03
Operation Manual
FLG-G5-14
Transtech Gravity Spray Gun
E
P 2 – 8

Advertisement

loading

  Related Manuals for DeVilbiss FLG-G5-14

  Summary of Contents for DeVilbiss FLG-G5-14

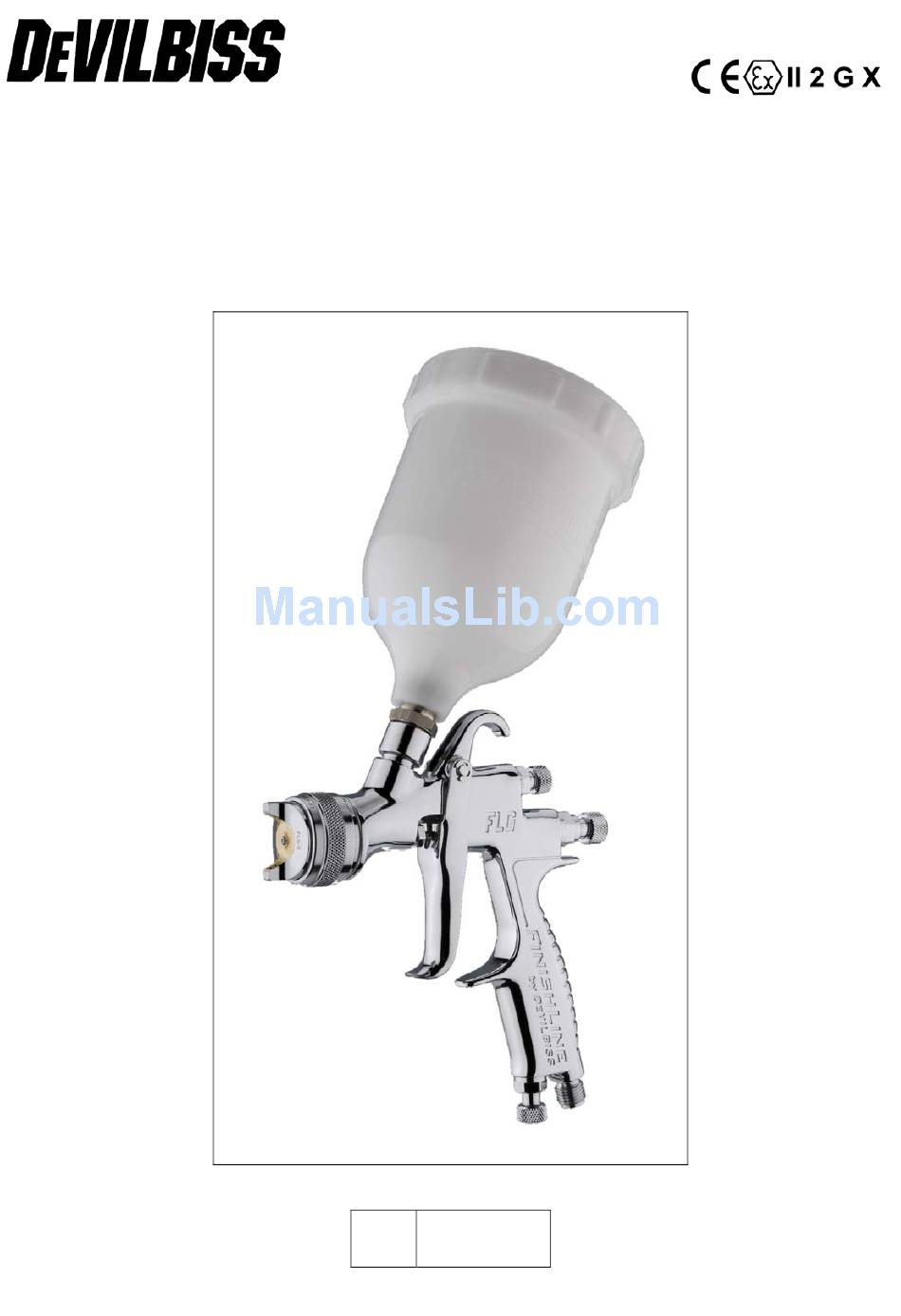

  • Page 1 SB-E-2-790 ISS.03 Operation Manual FLG-G5-14 Transtech Gravity Spray Gun P 2 – 8...
  • Page 2: Specification

    II 2 G X. Suitable for use in Zones 1 and 2 Important: These spray guns are suitable for use with both water-based and solvent-based coating materials. The design uses EPA compliant atomising (Devilbiss Trans-Tech®) technology to reduce overspray and improve coating efficiency. Nozzles and needles are manufactured in stainless steel.
  • Page 3: Safety Warnings

    SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material supplier’s instructions and COSHH sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas.
  • Page 4: Parts List

    Parts List Ref. No Part Number Description 1 SGK-0023 Retaining ring 2 FLG-0001-5 Air cap SGK-0012-14 Fluid tip 1.4mm SGK-0012-20 Fluid tip 2.0mm (available separately) ● 4 Gasket ● 5 Baffle Packing Packing gland nut Retaining ring Spray pattern adjustment valve bushing Spray pattern valve U-cup seal Air-valve seat...
  • Page 5 © 2003 ITW Finishing Systems and Products...
  • Page 6: Installation

    Installation Important: To ensure that this equipment reaches you in first class condition, protective coatings have been used. Flush the equipment through with a suitable solvent before use. 1. Attach air hose to connector (19). Recommended hose size 8 mm bore. The hose must be conductive and electrical bond from the spray gun to earth should be checked with an ohmmeter.
  • Page 7: Replacement Of Parts

    Replacement of Parts Nozzle (3) and needle (16) – Remove parts in the following order: 18, 17, 16, 1, 2 and 3. Check condition of nozzle seal (4) and replace if necessary. Replace any worn or damaged parts and re-assemble in reverse order. Recommended tightening torque for nozzle (3) 16-20 Nm (150- 180 lbf in).
  • Page 8: Ec Declaration Of Conformity

    EC Declaration of Conformity We, ITW Finishing UK, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the Authorised Representative of the manufacturer of the Spray gun model FLG5, declare, under our sole responsibility, that the equipment to which this document relates is in conformity with the following standards or other normative documents: BS EN 292-1 PARTS 1 &...
