DeVilbiss FLG-P5-14 Operation Manual
Hide thumbs Also See for FLG-P5-14:

Advertisement

Quick Links

SB-E-2-792
ISS.01
Operation Manual
FLG-P5-14
Transtech Pressure-feed Spray Gun
E
P 2 – 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLG-P5-14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DeVilbiss FLG-P5-14

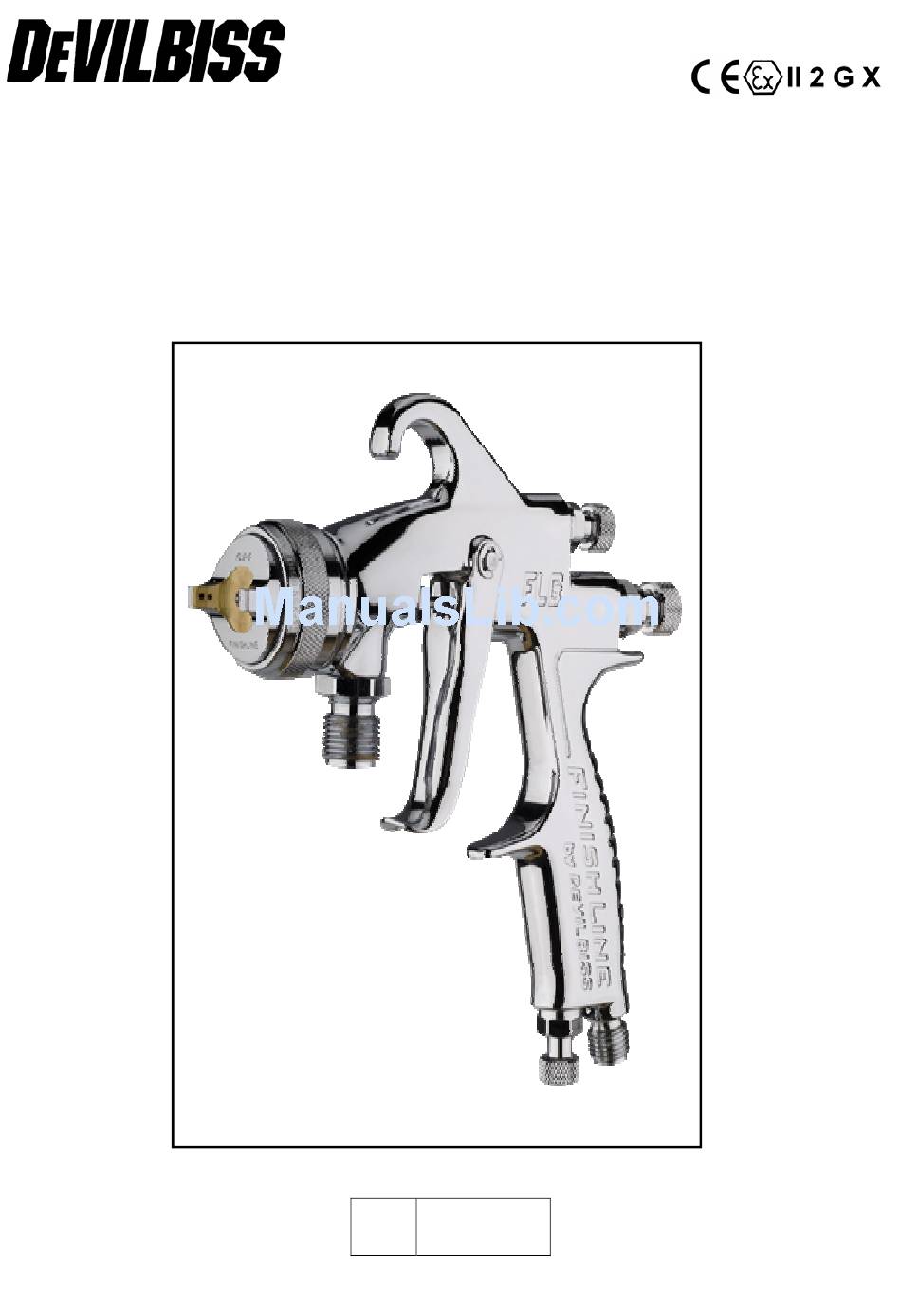

  • Page 1 SB-E-2-792 ISS.01 Operation Manual FLG-P5-14 Transtech Pressure-feed Spray Gun P 2 – 8...
  • Page 2: Flg5 - Pressure-Feed Spray Gun

    II 2 G X. Suitable for use in Zones 1 and 2 Important: These spray guns are suitable for use with both water-based and solvent-based coating materials. The design uses EPA compliant atomising (Devilbiss Trans-Tech®) technology to reduce overspray and improve coating efficiency. Nozzles and needles are manufactured in stainless steel.
  • Page 3: Safety Warnings

    SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material suppliers instructions and COSHH sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas.
  • Page 4: Parts List

    Parts List Ref. No Part Number Description 1 SGK-0023 Retaining ring 2 FLG-0001-622 Air cap No 622 3 SGK-0012-14 Fluid tip 1.4mm ● 4 - Gasket ● 5 K-5032 Sprayhead Kit Packing Packing gland nut Circlip Spray pattern adjustment valve bushing 10 - Spray pattern valve 11 -...
  • Page 5 © 2006 ITW Finishing Systems and Products...
  • Page 6: Installation

    Installation Important: To ensure that this equipment reaches you in first class condition, protective coatings have been used. Flush the equipment through with a suitable solvent before use. 1. Attach air hose to connector (19). Recommended hose size 8 mm bore. The hose must be conductive and electrical bond from the spraygun to earth should be checked with an ohmeter.
  • Page 7: Replacement Of Parts

    Replacement of Parts Nozzle (3) and needle (16) – Remove parts in the following order: 18, 17, 16, 1, 2 and 3. Check condition of nozzle seal (4) and replace if necessary. Replace any worn or damaged parts and re-assemble in reverse order. Recommended tightening torque for nozzle (3) 16-20 Nm (150- 180 lbf in).
  • Page 8: Ec Declaration Of Conformity

    EC Declaration of Conformity We, ITW Finishing UK, Ringwood Rd, Bournemouth, Dorset, BH11 9LH, UK, as the Authorised Representative of the manufacturer of the Spray gun model FLG5, declare, under our sole responsibility, that the equipment to which this document relates is in conformity with the following standards or other normative documents: BS EN 292-1 PARTS 1 &...
