SERVICE MANUAL
EN

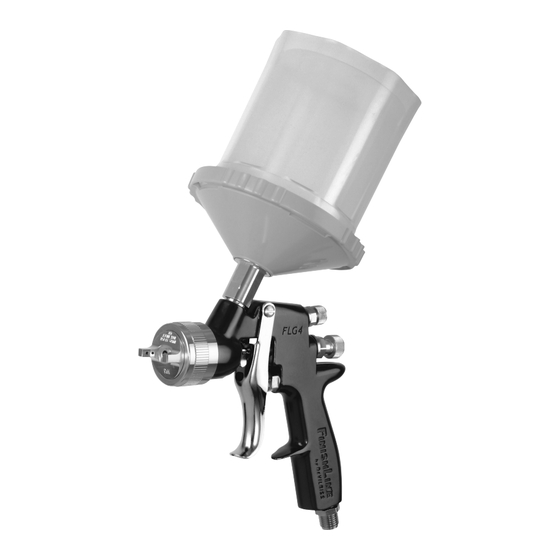

GUN DESCRIPTION
The FLG4 is a light weight, general
p u r p o s e g r a v i t y f e e d s p r a y g u n f o r
spraying applications suitable for use with a wide
variety of common coating materials. Model
FLG-HVG-315 is an HVLP spray gun, and model
FLG-CNG-115 is conventional.
SPECIFICATIONS
Maximum Air Pressure:
100 psi
Gun Body:
Forged Aluminum
Fluid Path:
Anodized Aluminum
Air Inlet:
1/4" NPS male
Gun Weight:
18.13 oz / 514 g
It is the Customer's responsibility to have all operators and service personnel read and understand this manual.
Contact your local DeVilbiss representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVILBISS PRODUCT.
SB-2-779-R1 (4/2018)
FLG4 GRAVITY FEED SPRAY GUN AND
DEKUPS
MODELS: FLG-CNG-115 AND FLG-HVG-315
IMPORTANT! DO NOT DESTROY
1 / 12
DISPOSABLE CUP SYSTEM
®
www.carlisleft.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DeVilbiss FLG-CNG-115
Summary of Contents for DeVilbiss FLG-CNG-115
- Page 1 IMPORTANT! DO NOT DESTROY It is the Customer's responsibility to have all operators and service personnel read and understand this manual. Contact your local DeVilbiss representative for additional copies of this manual. READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVILBISS PRODUCT.
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS This manual contains information that is important for you to know and understand. This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the following symbols. Please pay particular attention to these sections. NOTE Important information that tells how Information that you should pay special... -
Page 3: Installation
Inadequate pressures measured with the trigger pulled. If an air adjusting valve is used will cause heavy centered patterns and poor at the gun inlet, use DeVilbiss atomization. CONVENTIONAL MODELS ONLY: Model HAV-500 or HAV-501. Some competitive adjusting valves The No. -
Page 4: Preventive Maintenance
Spray Gun Air Cap Kit Fluid Tip Fluid Tip Size Application Type Model Number (Ref. No. 1) (Ref. No. 2) Supplied With Gun Air Cap FLG-CNG-115 Gravity – Conventional FLG4-1-1-k FLG-332-15K 1.5 mm FLG-HVG-315 Gravity – HVLP FLG4-1-3-K FLG-332-15K 1.5 mm Chart 2 –... -
Page 5: How To Use The System
DeKUPS — HOW TO USE THE SYSTEM ® SB-2-779-R1 (4/2018) 5 / 12 www.carlisleft.com... -
Page 6: Parts List
Gun Drawing PARTS LIST Replacement Ind. Parts Part No. Description Required See Chart 1, p.4 Air Cap & Ring Kit See Chart 2, p.4 Fluid Tip & Seal Kit FLG-304-K5 Fluid Tip Seal (Kit of 5) FLG-305 Baffle FLG-465 Spreader Air Adjustment Valve FLG4-364-K Needle Knob, Spring, Bushing &... -
Page 7: Troubleshooting
DeKUPS ACCESSORIES ® DPC-31 TROUBLESHOOTING CONDITION CAUSE CORRECTION Heavy top or Horn holes plugged. Clean. Ream with non-metallic point. bottom pattern Obstruction on top or bottom of fluid tip. Clean. Cap and/or tip seat dirty. Clean. Heavy right or left Left or right side horn holes plugged. - Page 8 TROUBLESHOOTING (Continued) CONDITION CAUSE CORRECTION Will not spray No air pressure at gun. Check air supply and air lines, blow out gun air passages. Fluid needle adjusting screw not open Open fluid needle adjusting screw. enough. Thin material and/or change to larger tip size. Fluid too heavy for gravity feed.
- Page 9 Contains six precision tools designed to immediately dangerous effectively clean all DeVilbiss, Binks, Finishline MSDS available upon to life. and other brand spray guns. request. Medium 40-128...
- Page 10 NOTES www.carlisleft.com 10 / 12 SB-2-779-R1 (4/2018)
- Page 11 NOTES SB-2-779-R1 (4/2018) 11 / 12 www.carlisleft.com...
-
Page 12: Warranty Policy
For specific warranty information please contact Carlisle Fluid Technologies. Carlisle Fluid Technologies is a global leader in innovative finishing technologies. Carlisle Fluid Technologies reserves the right to modify equipment specifications without prior notice. DeVilbiss , Ransburg , ms , BGK , and Binks ®...
