Page 1: Operating Instructions

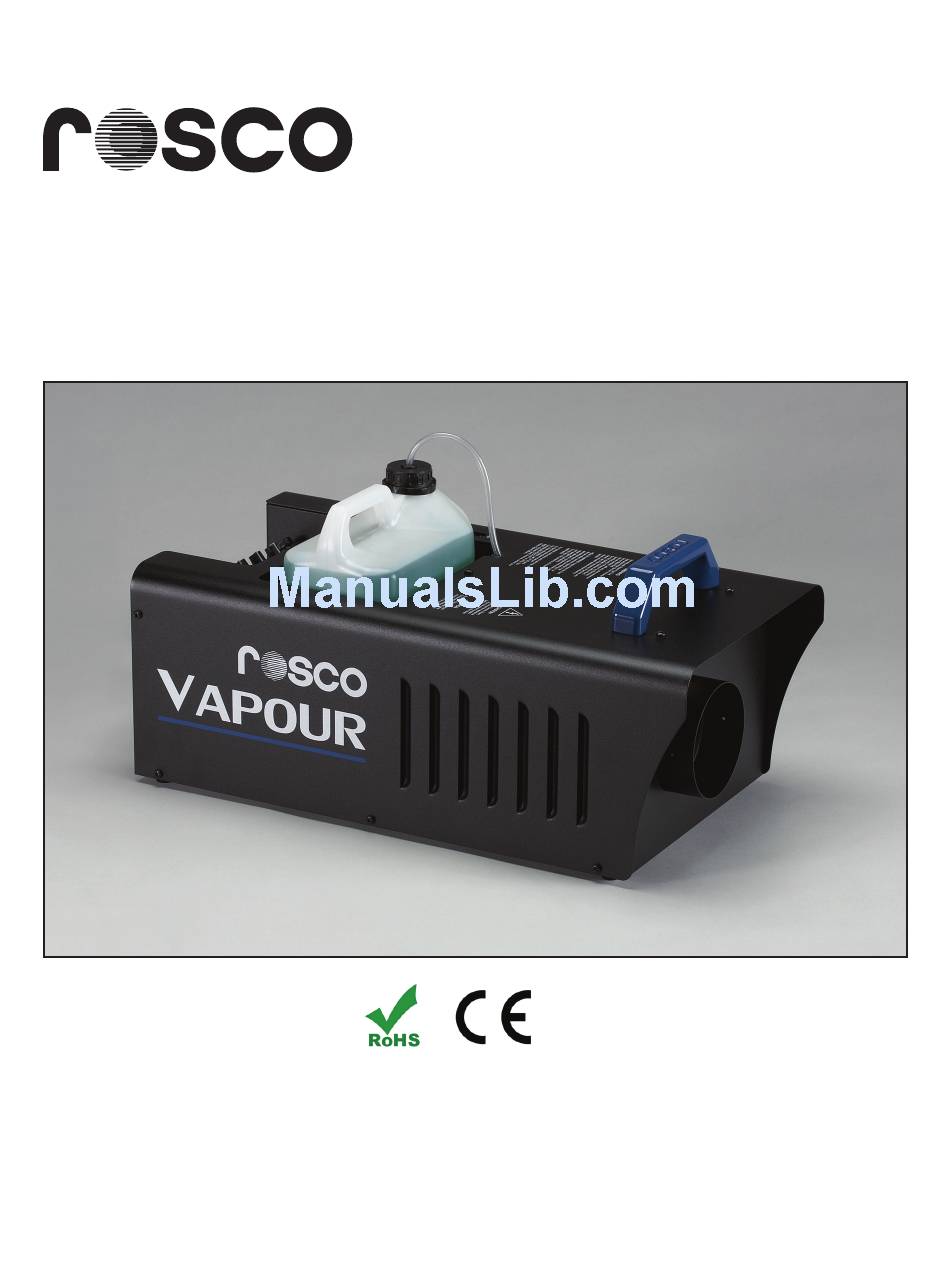

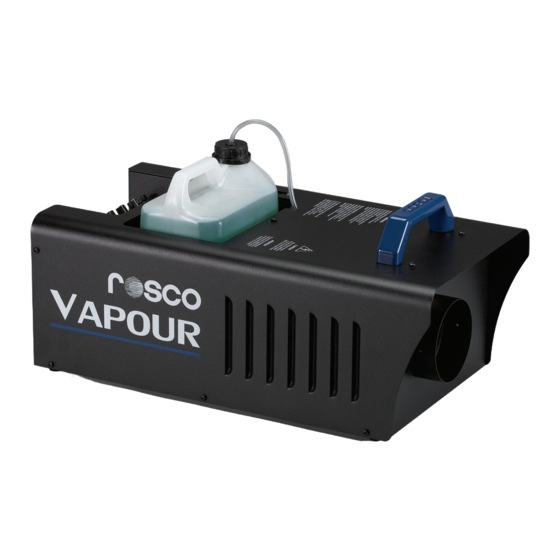

READ AND SAVE THESE INSTRUCTIONS Vapour Fog Machine Operating Instructions www.rosco.com... -
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....................................2 Important Safeguards .................................2-4 Unpacking ....................................5 Controls ....................................5-6 Setting Up ....................................7 Fluid Setup ..................................7 Power Connections ..............................7 Operating the Machine ..............................8-11 Powering On ...................................8 Heating .....................................8 Control Options ................................8 Manual Control via the Detachable Remote Control Panel ..............8 DMX Control ................................8 Multi-Link ................................8 Using the Remote Control Panel ..........................8... -
Page 3: Introduction
Rosco fog fluids. Do not use any fluids in the Vapour other than genuine Rosco fog fluids as they have not been tested for opti- mal performance and safety considerations. Doing so may damage the machine and will void the warranty. - Page 4 • Enclosing any heating device so it is invisible to the operator creates a potential fire hazard, no matter what the ambient temperature of the enclosure. To do so with any high-amperage device is to assume substantial risk. Rosco strongly recommends against it.
-
Page 5: Safety Precautions
Danger! Hazardous hazard. Risk of hazard. Hot surface. voltage. Contact will • Use of any fluid other than Rosco fog fluids or modification or attempted unauthorized personal injury. Do not touch cause electric shock. repair of the machine will immediately invalidate the warranty. -
Page 6: Unpacking
UNPACKING Your Rosco Vapour requires no assembly. Note: 230 volt machines are shipped with bare leads at the end of the power cord. A proper electrical connector must be attached based on the local power requirements. Carefully remove the machine from the box. Ensure that no tape or packing materials are stuck to the machine. -
Page 7: Controls
CONTROLS Fog Level Knob Fog Off Knob Fog On Knob Rotate to set the desired Used only when timer control Used only when timer control amount of fog output. Higher is engaged. Rotate to set the is engaged. Rotate to set the numbers indicate more fog. -
Page 8: Setting Up
Fluid Set Up Only use genuine Rosco fog fluids in your Vapour machine. The use of any other fluid will void your warranty, may damage the equipment, and may cause health hazards. -
Page 9: Operating The Machine
OPERATING THE MACHINE Powering On Make sure the unit is plugged in. Turn on the Main Power Switch that is located next to the power cord on the rear of the machine. The red Power Indicator light on the Remote Control Panel will illuminate. If the Power Indicator light does NOT illuminate, press and release the Standby Button on the Remote Control Panel. -
Page 10: Using Dmx Control
Rotate the Fog Off Knob to adjust the period of time that the machine waits before starting to produce fog again. The numeric settings on the timer knobs are relative settings and do not correspond to specific seconds or minutes. See the table below for an approximation of the time duration corre- sponding to each tic on the knob. -
Page 11: Dmx Operation
Replace the empty bottle with a new bottle of Rosco fog fluid, insert the fluid tube insuring that the filter at the end of the tube is fully submerged, and reattach the fluid cap. -
Page 12: Running Dry
This will create a low pressure point that “pulls or pushes” the fog through the ductwork. Squirrel Cage Fan Fog Machine Ducting Hose Hose Adaptor Contact Rosco or your local Rosco dealer for more advice on ducting fog. - 11 -... -
Page 13: Troubleshooting
DMX causes machine to non-terminated signal ed) into the DMX-OUT port on the respond eratically back of the machine. Additional help and information can be found on our website at www.rosco.com or by contacting Rosco or your local Rosco dealer. - 12 -... -
Page 14: Maintenance
Safeguards section on pages 2-4 of this manual. Note: Any service that is NOT described in the section below must be carried out by a Rosco service technician. Contact Rosco or your local Rosco dealer for more information on your repair and service needs. -
Page 15: Storage And Shipment
ETL approvals (cETLus) pending ......... . . UL60335-1, CSA-E60335-1 Information in this document is subject to change without notice and does not represent a commitment on the part of Rosco Laboratories, Inc. - 14 -... - Page 16 Dimensions Dimensions are shown in [inches] and millimeters - 15 -...
-
Page 17: Warranty
1 YEAR LIMITED WARRANTY Rosco Laboratories warrants to the first retail purchaser that this Product will be free from defects in workmanship and material for a period of twelve (12) months from the date of original purchase. For warranty service you must be able to provide proof of purchase. -
Page 18: Ce Certificate Of Conformity
1 A pril 2 014 Manufacturer : Rosco L aboratories, I nc. Address : 52 H arbor V iew A venue, S tamford, C onnecticut 0 6902, U .S.A. ...
