Page 1: Operating Instructions

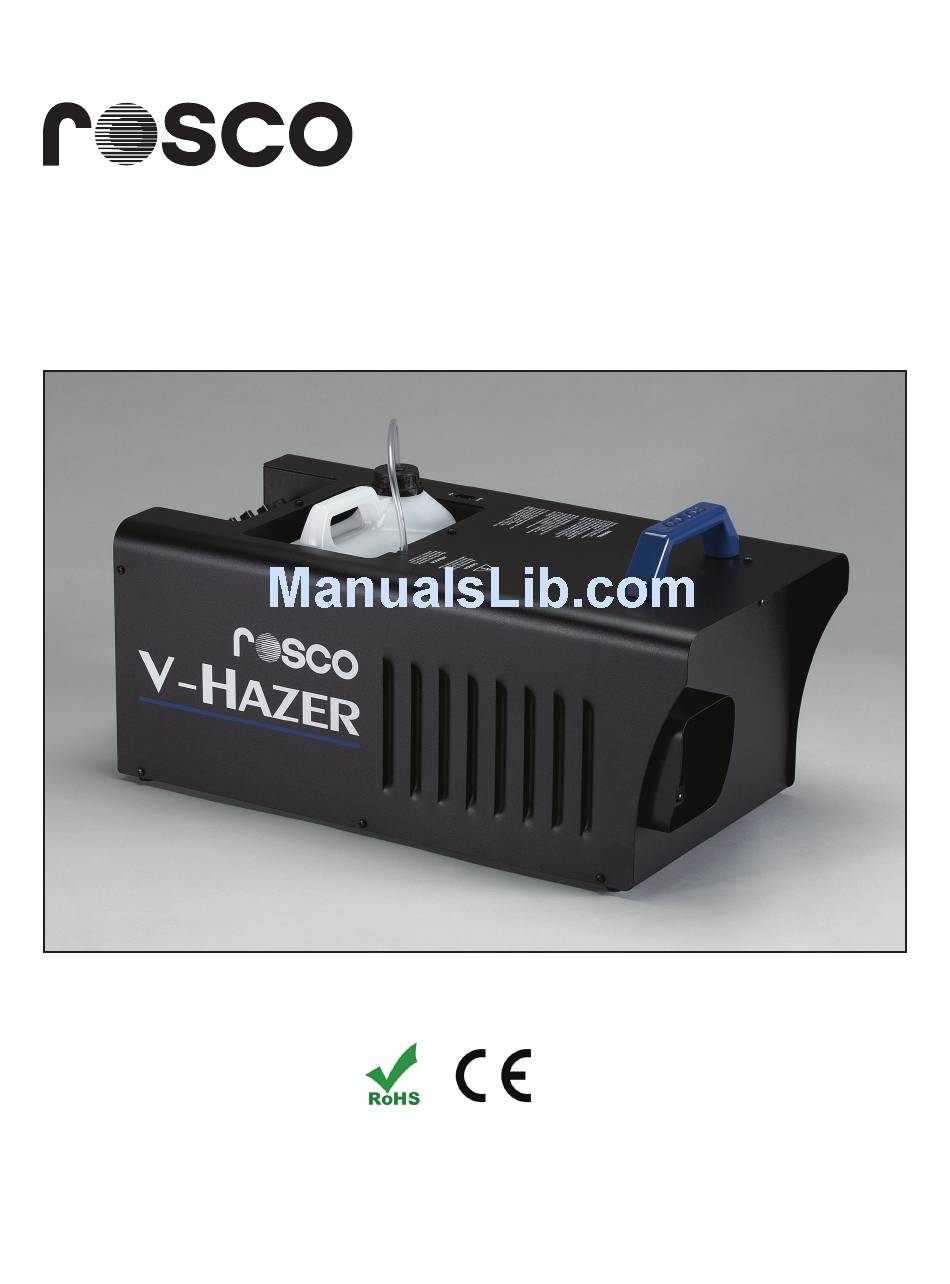

READ AND SAVE THESE INSTRUCTIONS V-Hazer Fog Machine Operating Instructions www.rosco.com... -
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....................................2 Important Safeguards ................................2-4 Unpacking .....................................5 Controls ......................................5-6 Setting Up .....................................7 Fluid Setup ..................................7 Power Connections ................................7 Operating the Machine ..............................8-10 Powering On ..................................8 Heating ....................................8 Control Options ................................8 Manual Control via the Detachable Remote Control Panel ..............8 DMX Control ................................8 Multi-Link .................................8 Using the Remote Control Panel ..........................8... -
Page 3: Introduction
Rosco V-Hazer Fluid. Do not use any fluids in the V-Hazer other than genuine Rosco V-Hazer Fluid, as they have not been tested for optimal performance and safety considerations. Doing so may damage the machine and will void the warranty. - Page 4 • Enclosing any heating device so it is invisible to the operator creates a potential fire hazard, no matter what the ambient temperature of the enclosure. To do so with any high-amperage device is to assume substantial risk. Rosco strongly recommends against it.
-
Page 5: Safety Precautions
Danger! Hazardous hazard. Risk of hazard. Hot surface. voltage. Contact will • Use of any fluid other than Rosco fog fluids or modification or attempted unauthorized repair personal injury. Do not touch cause electric shock. of the machine will immediately invalidate the warranty. -
Page 6: Unpacking
UNPACKING Your Rosco V-Hazer requires no assembly. Note: 230 volt machines are shipped with bare leads at the end of the power cord. A proper electrical connector must be attached based on the local power requirements. Carefully remove the machine from the box. Ensure that no tape or packing materials are stuck to the machine. - Page 7 CONTROLS Fog Level Knob Fog Off Knob Fog On Knob Rotate to set the desired Used only when timer control Used only when timer control amount of haze output. is engaged. Rotate to set the is engaged. Rotate to set the Higher numbers indicate more desired time interval that the desired time interval that the...
-
Page 8: Setting Up
Ensure that the machine is plugged into an outlet rated for the proper voltage and amperage. The V-Hazer is a 900 watt device and will draw 4A at 230 VAC or 8A at 115 VAC. Note: 230 volt machines are shipped with bare leads at the end of the power cord. -
Page 9: Operating The Machine
DMX Control from your lighting desk is available as a standard option. The V-Hazer will use 2 channels of DMX control: Channel one controls haze output volume and channel two controls fan speed. -
Page 10: Using Timers
To ensure silent operation when not in use, the fan of the V-Hazer will automatically shut-down after 30 seconds of inactivity. The fan will come back on when the machine begins to produce haze again. The Standby Button allows the machine to be “turned off” from the remote without using the Main Pow- er Switch. -
Page 11: Setting The Dmx Address
Setting the DMX Address The V-Hazer uses two channels of DMX. To set the starting DMX address of the machine, press either the UP or DOWN arrow on the DMX panel to activate the display. Then, press the UP or DOWN Button again to change the value until the desired address is displayed. -
Page 12: Using Multi-Link
Replace the empty bottle with a new bottle of Rosco V-Hazer Fluid, insert the fluid tube insuring that the filter at the end of the tube is fully submerged, and reattach the fluid cap. -
Page 13: Troubleshooting
DMX Operation section of enough. 0-10% = maximum fan speed. DMX is at zero. the manual. Additional help and information can be found on our website at www.rosco.com or by contacting Rosco or your local Rosco dealer. - 12 -... -
Page 14: Maintenance
2-4 of this manual. Note: Any service that is NOT described in the section below must be carried out by a Rosco service technician. Contact Rosco or your local Rosco dealer for more information on your repair and service needs. -
Page 15: Storage And Shipment
Compatible fluids ........ - Page 16 Dimensions Dimensions are shown in [inches] and millimeters - 15 -...
-
Page 17: Warranty
1 YEAR LIMITED WARRANTY Rosco Laboratories warrants to the first retail purchaser that this Product will be free from defects in work- manship and material for a period of twelve (12) months from the date of original purchase. For warranty service you must be able to provide proof of purchase. -
Page 18: Ce Certificate Of Conformity
1 A pril 2 014 Manufacturer : Rosco L aboratories, I nc. Address : 52 H arbor V iew A venue, S tamford, C onnecticut 0 6902, U .S.A. ...
