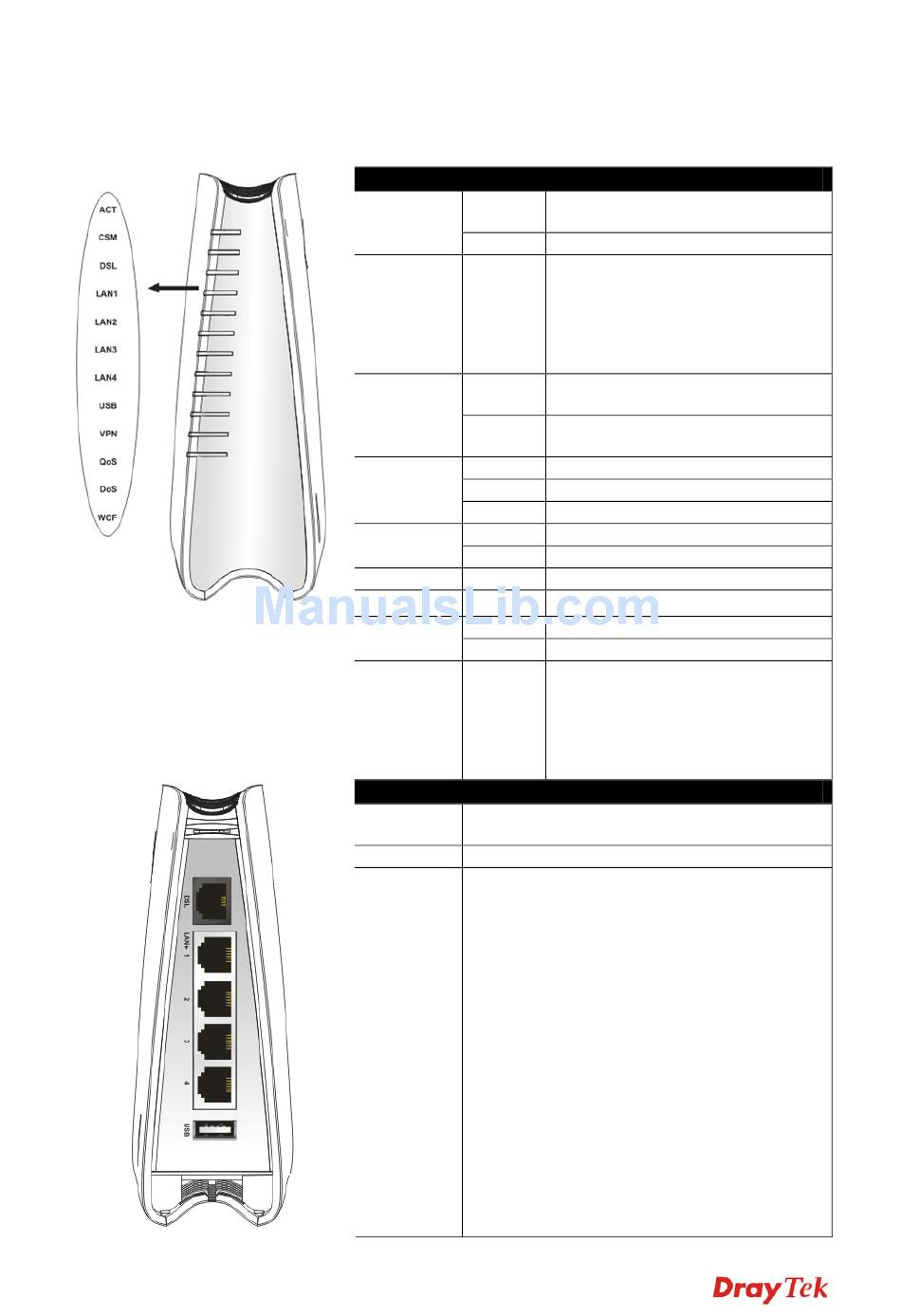

1 . 1 P a n e l E x p
1 . 1 P a n e l E x p
1 . 1 . 1 F o r V i g o
1 . 1 . 1 F o r V i g o
Vigor 2710 Series Quick Start Guide
l a n a t i o n
l a n a t i o n
r 2 7 1 0
r 2 7 1 0
LED
ACT
(Activity)
CSM
DSL
LAN 1/2/3/4
USB
VPN
QoS
DoS
WCF
Interface
DSL
LAN (1-4)
USB
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On The profile(s) of CSM (Content
Security Management) for IM/P2P,
URL/Web Content Filter application
can be enabled from Firewall
>>General Setup. (Such profile must
be established under CSM menu).
On The router is ready to access Internet
through DSL link.
Blinking Slowly: The modem is ready.
Quickly: The connection is training.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The VPN tunnel is active.
On The QoS function is active.
On The DoS/DDoS function is active.
Blinking It will blink while detecting an attack.
On The profile(s) of CSM (Content
Security Management) for Web
Content Filter application can be
enabled from Firewall >>General
Setup. (Such profile must be
established under CSM menu).
Description
Connector for accessing the Internet through
ADSL2/2+.
Connectors for local networked devices.
Connector for USB storage device (Pen
Driver/Mobile HD) or printer.
