Vigor 2710 Series Quick Start Guide
r 2 7 1 0 V n
r 2 7 1 0 V n

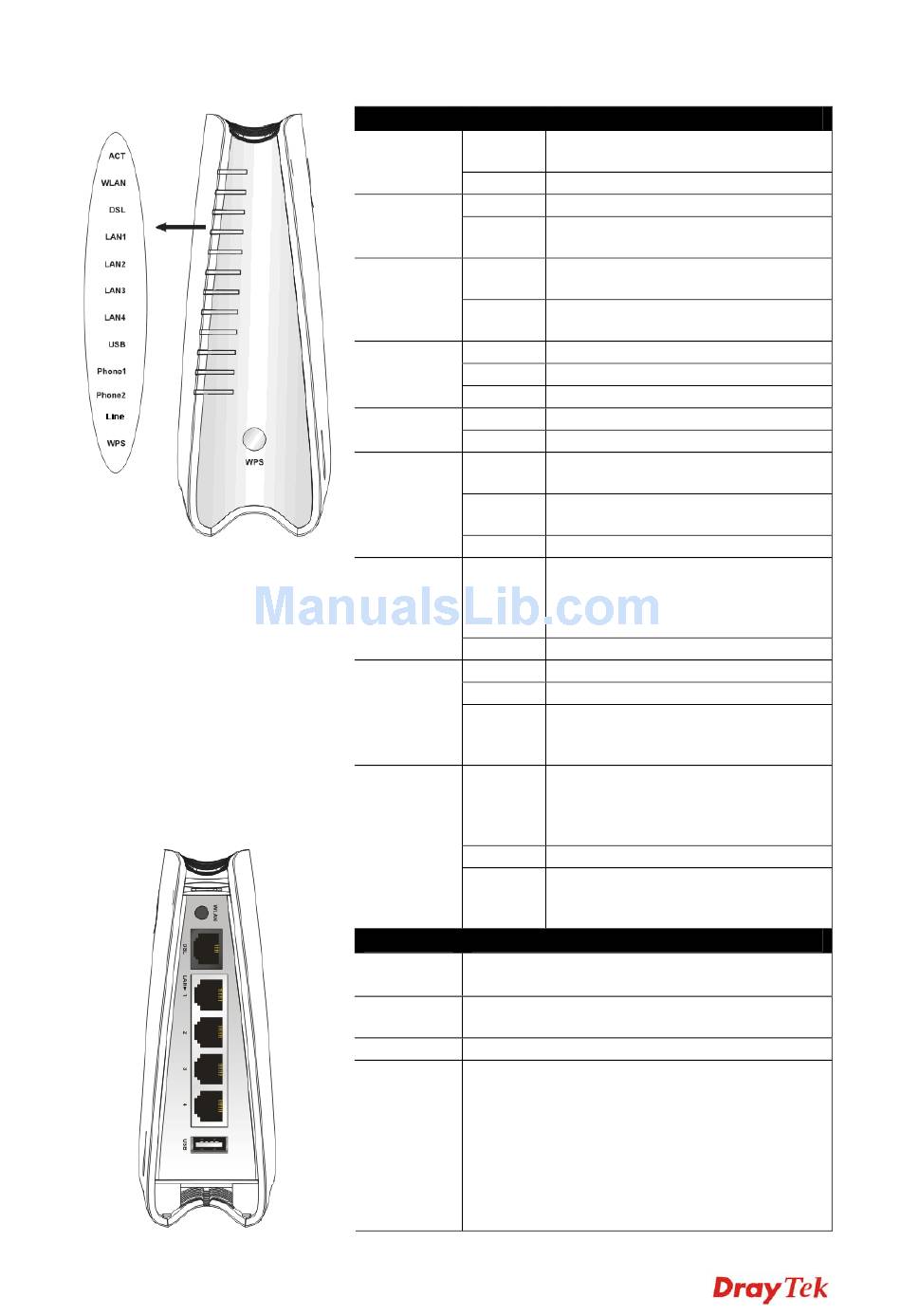

LED
ACT
(Activity)
WLAN
DSL
LAN 1/2/3/4
USB
Phone1/
Phone2
Line
WPS
WPS Button
Interface
WLAN
DSL
LAN (1-4)
USB
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On Wireless access point is ready.
Blinking It will blink while wireless traffic goes
through.
On The router is ready to access Internet
through DSL link.
Blinking Slowly: The modem is ready.
Quickly: The connection is training.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The phone connected to this port is
off-hook.
Off The phone connected to this port is
on-hook.
Blinking A phone call comes.
On A PSTN phone call comes (in and out).
However, when the phone call is
disconnected, the LED will be off
about six seconds later.
Off There is no PSTN phone call.
On The WPS is on.
Off The WPS is off.
Blinking Waiting for wireless client sending
requests for connection about two
minutes.
On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS will be on.
Off The WPS is off.
Blinking Waiting for wireless client sending
requests for connection about 2
minutes.
Description
Press the button once to enable (WLAN LED on) or
disable (WLAN LED off) wireless connection.
Connector for accessing the Internet through
ADSL2/2+.
Connectors for local networked devices.
Connector for USB storage (Pen Driver/Mobile
HD) or printer.
