Draytek Vigor2710 Series Quick Start Manual page 32

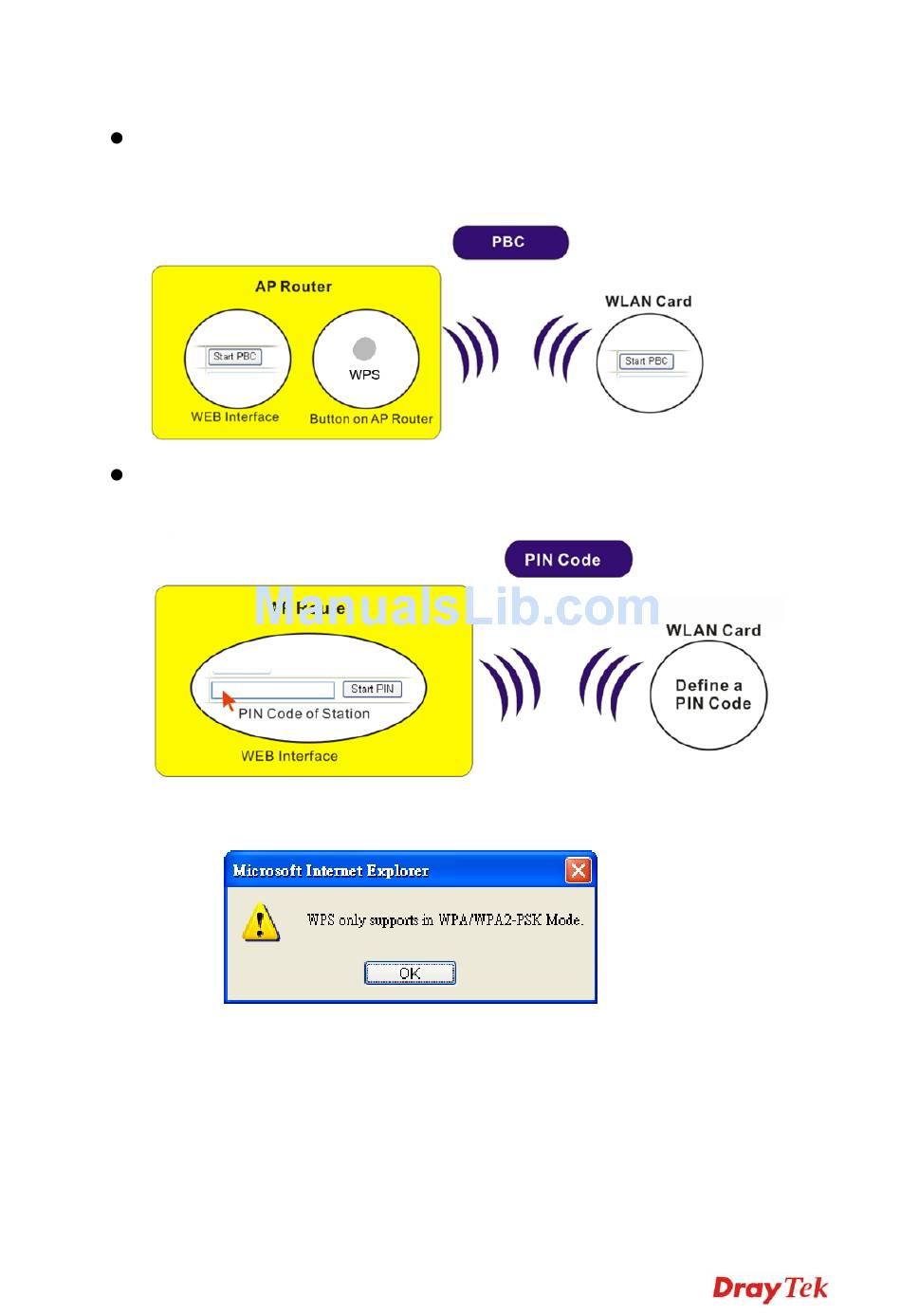

There are two methods to do network connection through WPS between AP and Stations:
pressing the Start PBC button or using PIN Code.
On the side of Vigor 2710 series which served as an AP, press WPS button once on
the front panel of the router or click Start PBC on web configuration interface. On
the side of a station with network card installed, press Start PBC button of network
card.
If you want to use PIN code, you have to know the PIN code specified in wireless
client. Then provide the PIN code of the wireless client you wish to connect to the
vigor router.
For WPS is supported in WPA-PSK or WPA2-PSK mode, if you do not choose such
mode in Wireless LAN>>Security, you will see the following message box.
Please click OK and go back Wireless LAN>>Security to choose WPA-PSK or
WPA2-PSK mode and access WPS again.
Vigor 2710 Series Quick Start Guide
24
