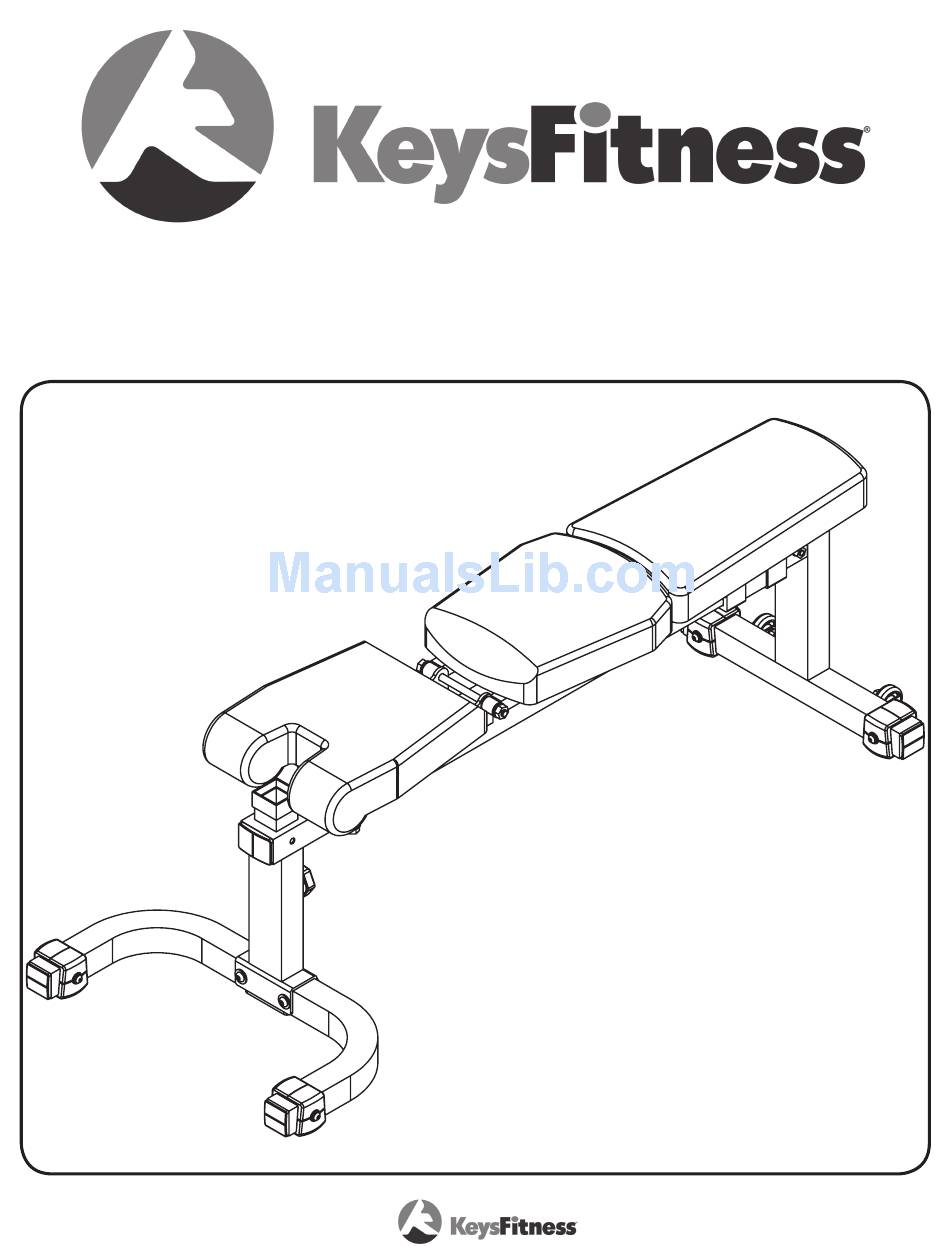

  • Page 1 KF-FI nclIne ench Owner’s Manual 215-00124 10/06 Rev A...

  • Page 2: Table Of Contents

    Table Of Contents Before You Start Important Safety Information Assembly Parts List Exploded View Warranty Information...

  • Page 3: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 4: Important Safety Information

    • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Main Frame (1) to U-Shaped Base (3) with Bolts (8), Washers (3) and Nylon Lock Nuts (34). Insert Slide Frame (7) onto Main Frame (1). Connect Main Frame (1) to Rear Upright () with Bolt (7), Washers (31) and Nylon Lock Nut (33).
  • Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect Seat Pad (8) to Seat Support (4) using Bolts () and Washers (31). Connect Seat Support (4) to Main Frame (1) as pictured using Bolt (30), Washers (3) and Nylon Lock Nut (34).

  • Page 8: Assembly

    Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 First attach Back Support Tubes (5) to Main Frame (1) using Screw Shaft (3), Washers (3), and Nylon Lock Nuts (34). Attach Back Pad Support () to Back Pad Support Tubes (5) and Slide Frame (7) using Screw Shaft (3), Washers (3), and Nylon Locknuts (34) as pictured.

  • Page 9: Parts List

    0-0035 0-00 0-00091 0-0009 0-00393 8-008 0-003 0-00094 0-00391 KF-FI Parts list Rev A description MAIN FRAME, KF-FI REAR BASE, KF-FI U FRONT BASE, KF-FI BACK SUPPORT KPS-FI BACK PAD SUPPORT KPS-FI BACK PAD FRAME, ADJ. SLIDE FRAME KPS-FI SEAT PAD, KF-FI BACK PAD, UPPER KF-FI IRON BUSHING, 5X1.X8...

  • Page 10: Exploded View

    Exploded View...

  • Page 11: Warranty Information

    Product. To obtain warranty service, you must contact a Keys autho- rized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
  • Page 12 Keys Fitness Products, l.P. 4009 distribution drive, Suite 250 Garland, Texas 75041 Customer Service: 1-888-340-0482...
