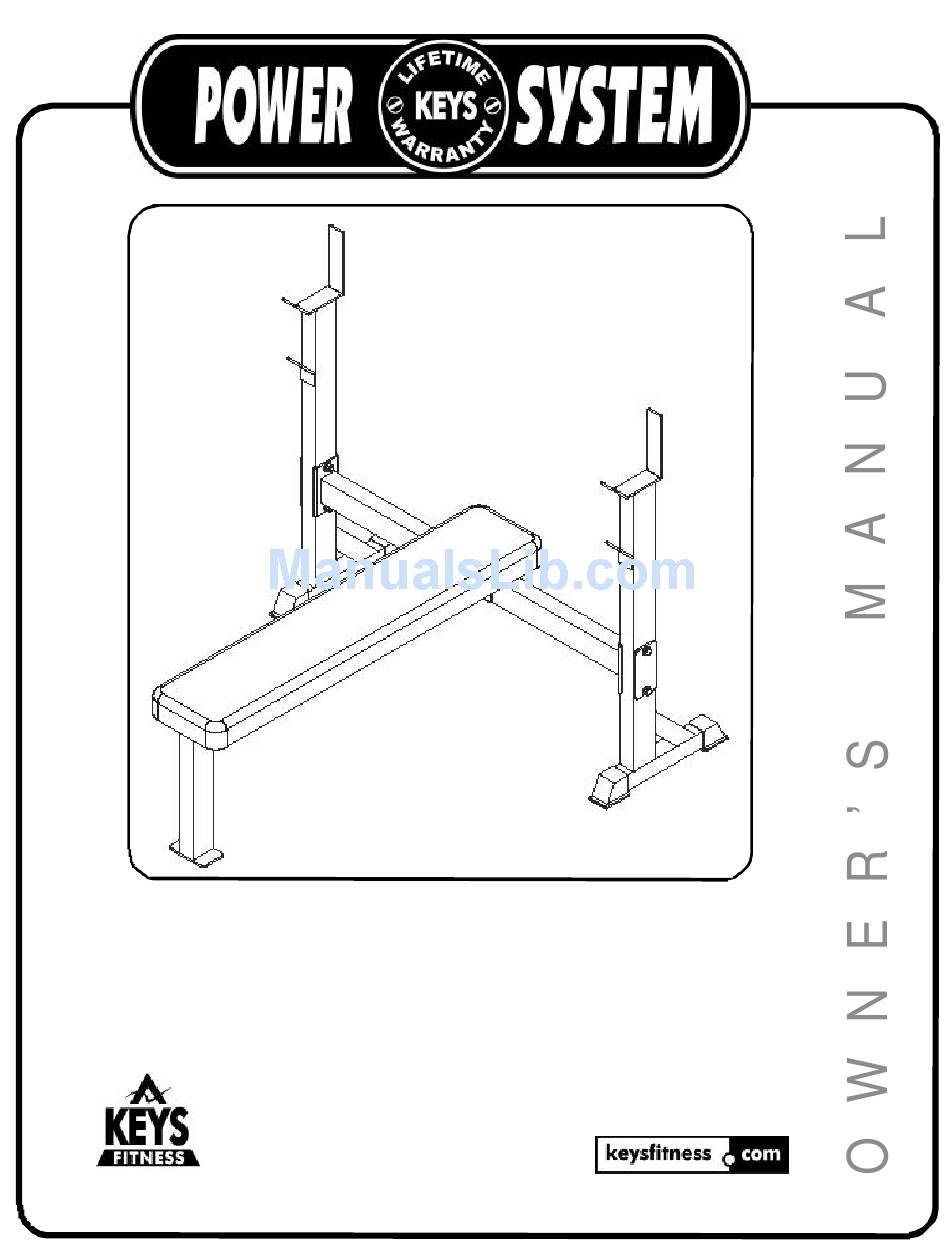

- Page 1 KPS-CB OMPETITION ENCH Questions? Call our toll free Keys Fitness Helpline 1 - 8 8 8 - 3 4 0 - 0 4 8 2...
- Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
-
Page 3: Before You Start
• This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. - Page 4 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Slide End Caps (6) onto both main Uprights (1). STEP 2 Connect main Uprights (1) with Cross Frame (2) using Plates (4), Bolts (7), Washers (8) and Nylon Lock Nuts (9).
- Page 5 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Main Frame (3) as shown using Plate (4), Bolts (7), Washers (8), and Nylon Lock Nuts (9). STEP 4 Attach Back Pad (5) to unit using Bolts (10) and Washers (11).
-
Page 6: Exploded View
DESCRIPTION upright cross frame main frame plate back pad end cap 2" bolt M12x80 washer nylon lock nut M12 bolt M10x30 washer EXPLODED VIEW... - Page 7 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
- Page 8 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-888-340-0482...
