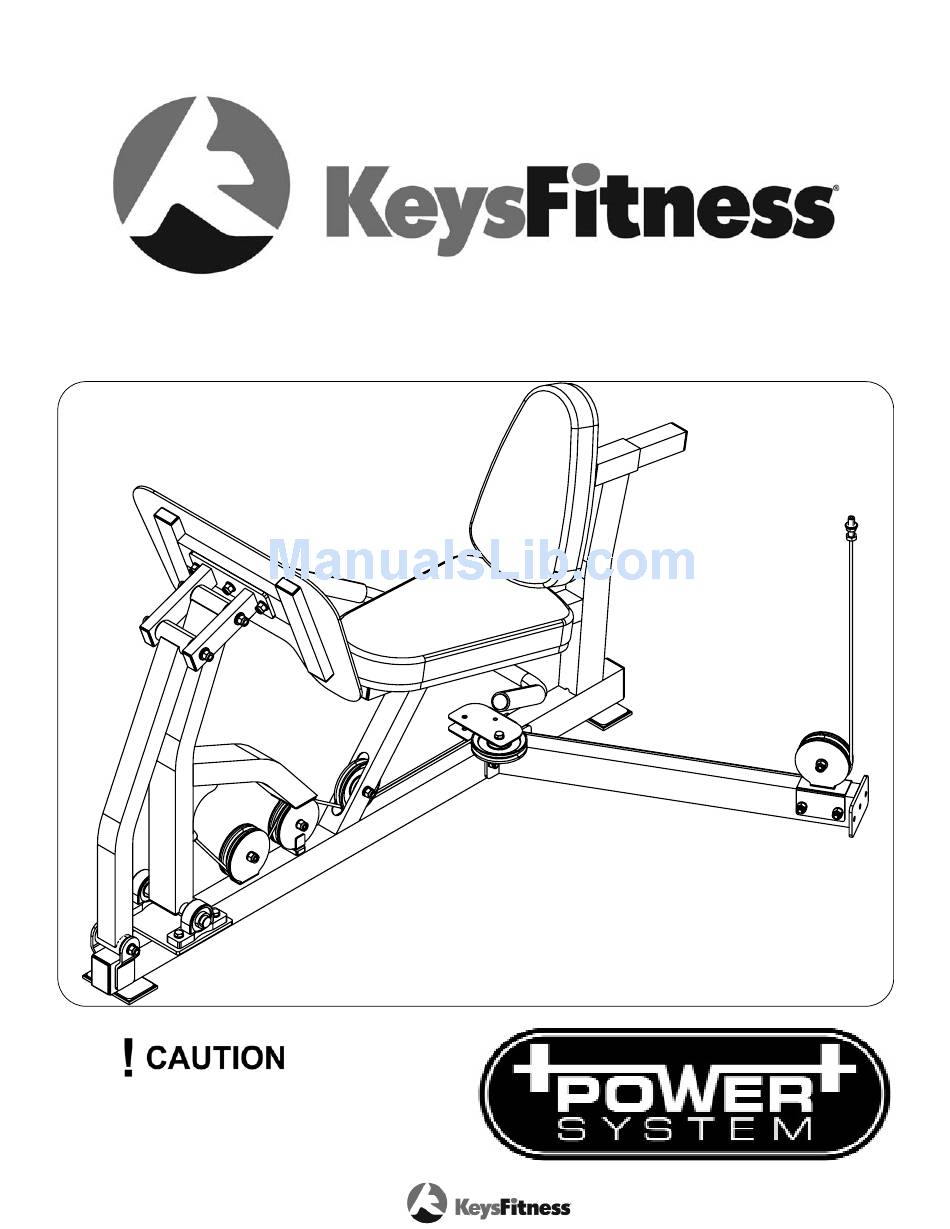

- Page 1 Owner’s Manual Read all precautions and instruc- tions in this manual before using this equipment.. 215-00007 04/05 Rev B K P S - L L P 2...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information Before You Start Assembly Weight Ratios Exploded View Parts List Warranty Information 5-11... -
Page 3: Important Safety Information
Important Safety Information THANK YOU for making this Power System unit a part of your exercise pro- gram. Keys Fitness and our Power System Series assures the very best in value, appearance, durability and biomechanics. This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Help-line. -
Page 4: Before You Start
Before You Start Important: The LP2 Leg Press must attach to your home gym on the weight stack side of the machine. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. -
Page 5: Assembly
Assembly... - Page 6 Assembly...
- Page 7 Assembly Step 1 Slide one Pillow Block Bearing (17) onto each side of the Back Rocker (5). Use two Bolts (33), four Washers (44), and two Nylon Locknuts (41) to attach each Pillow Block Bearings (17) onto the Main Frame (1). Slide Short Spacer Tube (12) into the Front Rocker (4).
- Page 8 Assembly Step 2 Attach Foot Plate (7) to the Connect Frame (6) using three Bolts (32), three Washers (44), and three Nylon Lock-nuts (41). Attach Right Handle (2) and Left Handle (3) to the Main Frame (1) using two Bolts (39), four Washers (43), and two Nylon Lock-nuts (42).
- Page 9 Assembly Step 3 Attach Cross Base (8) to Main Frame (1) using Plate (14), two Bolts (39), four Washers (43), and two Nylon Lock-nuts (42). Slide Pulley Block (10) onto the Cross Base (8) and secure in place using two Bolts (40), four Washers (43), and two Nylon Lock-nuts (42).
- Page 10 Assembly Step 4 Attach Seat Pad (24) to Main Frame (1) using two Bolts (38) and two Washers (43). Assemble Back Pad (23) to Back Pad Support (9) using two Bolts (35) and two Washers (43). Slide Back Pad Support assembly to Main Frame (1) and secure using Pop Pin (16). Figure 4...
- Page 11 Run cable through Pulley D location and then install Pulley D onto Main Frame (1). Run cable through Pulley E location and then install Pulley E onto Main Frame (1). Last, thread cable end into the floating pulley of home gym unit. Figure 5 Note: Tighten all hardware securely.
-
Page 12: Weight Ratios
Weight Ratios KPS-LP2 Ratio % Weight(lbs) 112.75 133.25 153.75 174.25 194.75 215.25 235.75 256.25 317.75 379.25 205% 20.5 30.75 51.25 61.5 71.75 92.25 348.5... -
Page 13: Exploded View
Exploded View... -
Page 14: Parts List
Parts List REF# KPS-LP2 Parts List KEYS PART# DESCRIPTION 223-00249 Main Frame 219-00280 Right Handle 219-00285 Left Handle 223-00250 Front Rocker 223-00251 Back Rocker 219-00282 Connect Frame 223-00252 Footplate 223-00253 Cross Base 219-00283 Back Pad Support 219-00284 Pulley Block 210-00062... -
Page 15: Warranty Information
Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. - Page 16 Customer Service 1.888.340.0482 Keys Fitness 4009 Distribution Drive Suite 250 Garland, TX 75041 www.keysfitness.com...
