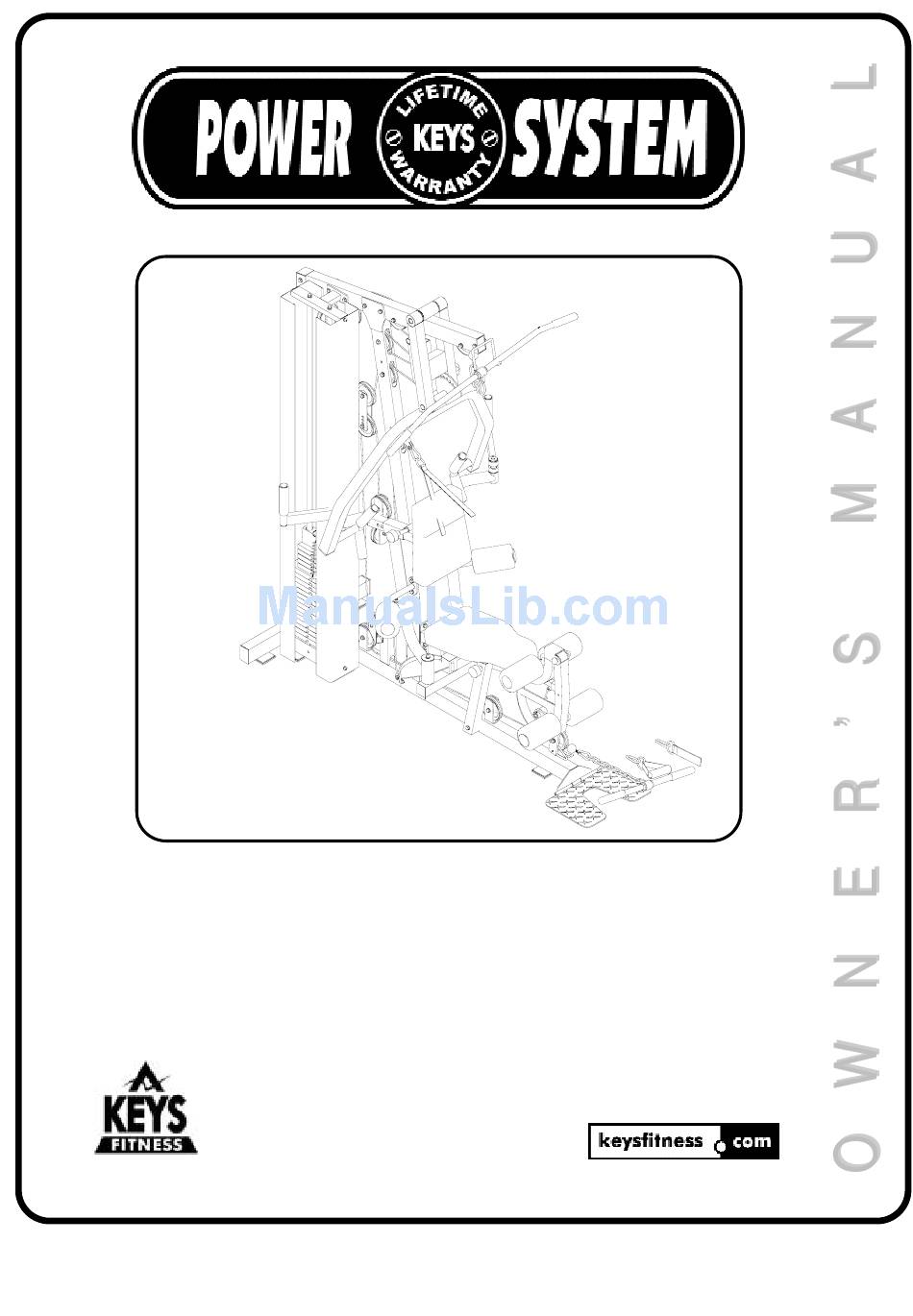

KPS-1800
H
G
1800
OME
YM
Questions?
Call our toll free Keys Fitness Helpline
1 - 8 0 0 - 6 8 3 - 1 2 3 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER SYSTEM KPS-1800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Keys Fitness POWER SYSTEM KPS-1800

  • Page 1 KPS-1800 1800 Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
  • Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
  • Page 3: Before You Start

    ¡ ñ This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
  • Page 4 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Base Frame (1) to Rear Upright (2) and Main Upright (3) using: 2 x (90) Bolt 8 x (84) Washer 4 x (105) Nylon Nut 2 x (112) Bolt...
  • Page 5 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Slide Main Top Beam (4) down onto Rear Upright (2) and Main Upright (3) and secure using: 2 x (88) Bolt 8 x (84) Washer 2 x (90) Bolt 4 x (105) Nylon Nut...
  • Page 6 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. NOTE: The weight stack assembly can be connected to either side of the machine. STEP 3 Attach Base Frame for Weight (16) to Base Frame (1) using: 1 x (70) Big Plate 2 x (90) Bolt 4 x (84) Washer...
  • Page 7 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Attach Left and Right Leg Hold Frame (24,23) to Main Upright (3) using: 2 x (90) Bolt 4 x (84) Washer 2 x (105) Nylon Lock Nut Attach Pec Dec Mount (5) to Main Upright (3) using: 2 x (95) Bolt 4 x (84) Washer...
  • Page 8 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 5 Attach Left and Right Pec Dec Arms (6,7) to Pec Dec Mount (5) using: 2 x (94) Allen Bolt 2 x (85) Spring Washer 2 x (84) Washer 2 x (54) Big Washer Connect Pec Dec Handle Bars (26) to Left and Right Pec Dec Arms (6,7) using:...
  • Page 9 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 6 Connect Seat Pad Support Receptacle to Main Upright (3) and Base Frame (1) using: 2 x (95) Bolt 6 x (84) Washer 3 x (105) Nylon Lock Nut 1 x (96) Bolt...
  • Page 10 ASSEMBLY STEP 7 Connect Lat Bar Hook (22) to Main Top Beam (4) using: 1 x (89) Bolt 2 x (84) Washer 1 x (105) Nylon Lock Nut Connect Foot Plate (29) to Base Frame (1) using: 1 x (79) Long “L” Pin...
  • Page 11 ASSEMBLY STEP 8 Connect Leg Extension Lever (10) to Seat Pad Support Receptacle (8) using: 2 x (60) Semi-Ball End Cap 2 x (104) Nylon Lock Nut 1 x (57) Shaft for Leg Extension 2 x (59) Concave Washer 2 x (58) Bushing for Leg Ext. Attach Foam Frame w/Shaft (11) and Foam Frame w/o Shaft (12) to Leg Extension Lever (10) and secure with Slip Tension Pin (101).
  • Page 12 ASSEMBLY STEP 9 Secure Press Arm Suport (13) to Main Top Beam (4) using: 1 x (50) Shaft for Chest Press 2 x (102) Screw Secure Press Arm (28) to Press Arm Support (13) using: 1 x (49) Shaft for Chest Press Adjustment 2 x (102) Screw...
  • Page 13 ASSEMBLY STEP 10 Complete Back Pad (46) assembly using: 1 x (15) Back Pad Support 2 x (92) Bolt 2 x (84) Washer 1 x (14) Telescope for Back Pad 1 x (97) Bolt 2 x (86) Washer 4 x (98) Bronze Bushing 1 x (104) Nylon Lock Nut Complete Seat Pad (47) assembly using: 1 x (9) Seat Pad Support...
  • Page 14 ASSEMBLY STEP 11 Secure Upholstered Roller Pads (56) as pictured above using: 1 x (55) Long Foam Tube 1 x (102) Screw 2 x (83) Plastic Washer 6 x (73) Big Plug...
  • Page 15 ASSEMBLY STEP 12 Complete Chest Press Cable (34) assembly using the following: 10 x (69) Big Pulley 2 x (68) Pulley Plate 1 x (30) Pulley Bracket w/Shaft 4 x (91) Bolt 4 x (88) Bolt 2 x (92) Bolt 20 x (84) Washer 8 x (66) Long Pulley Spacer 10 x (105) Nylon Lock Nut...
  • Page 16 ASSEMBLY STEP 13 Complete Mid Pulley Cable (35) assembly using the following: 6 x (69) Big Pulley 1 x (31) Pulley Bracket Block 3 x (92) Bolt 1 x (88) Bolt 1 x (89) Bolt 1 x (91) Bolt 12 x (84) Bolt 2 x (66) Long Pulley Spacer 2 x (67) Short Pulley Spacer 6 x (105) Nylon Lock Nut...
  • Page 17 ASSEMBLY STEP 14 Complete Leg Press Cable Substitute (36) assembly using the following: 1 x (92) Bolt 2 x (84) Washer 1 x (105) Nylon Lock Nut...
  • Page 18 ASSEMBLY STEP 15 Complete Pec Dec Cable (37) assembly using the following: 3 x (69) Big Pulley 2 x (91) Bolt 6 x (84) Washer 1 x (92) Bolt 3 x (105) Nylon Lock Nut 2 x (80) Cable End 2 x (118) Plastic Tube...
  • Page 19 ASSEMBLY TIGHTEN ALL BOLTS AND NUTS BEFORE PROCEEDING. STEP 16 Connect attachments as pictured above for various exercises using: 1 x (43) Short Chain 1 x (39) Long Chain 1 x (44) Long Lat Bar 1 x (41) Ankle Strap 1 x (38) Ab Strap 1 x (40) Lat Strap 1 x (42) Short Bar...
  • Page 20 ASSEMBLY STEP 17 Secure Weight Shrouds (45) to Base Frame for Weight (16) and Top Frame for Guide Rod (17) using: 4 x (100) Allen Bolt 4 x (99) Washer...
  • Page 21: Parts List

    PARTS LIST Description Description Base Frame Upholstered Roller Pad 100x22x180 Rear Upright Shaft for Leg Extension Main Upright Bushing for Leg Extension Main Top Beam Concave Washer 12.5 Pec Dec Mount Semi-Ball End Cap Left Pec Dec Arm Bearing ID 12 Right Pec Dec Arm “U”...
  • Page 22 PARTS LIST Description Smaller Pop Pin Bolt M10x75 Jam Nut 1/2”-12 Screw Bolt M12x35 Plastic Tube...
  • Page 23 EXPLODED VIEW...
  • Page 24 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
  • Page 25 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
