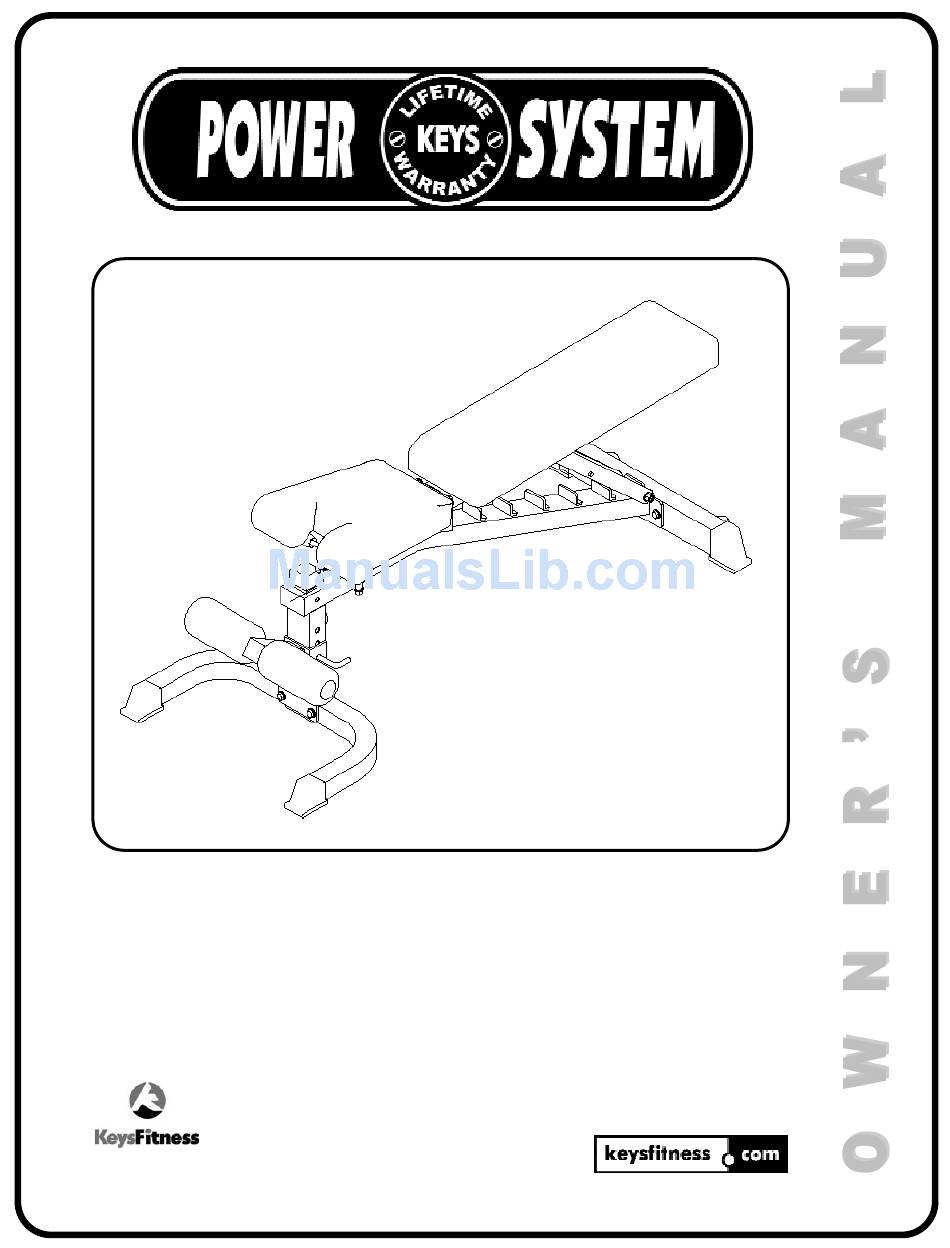

  • Page 1 KPS-FID ULTI Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6 215-00031 07/05 Rev B NGLE ENCH NCLINE ECLINE...
  • Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
  • Page 3: Before You Start

    • This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
  • Page 4 Connect Main Frame (1) to Rear Base (3) with Bolts (15), Washers (13) and Nylon Lock Nuts (14). Screw Knob (26) into Main Frame (1) underside. This Knob is used to tighten down any attachment used in your KPS-FID Bench.
  • Page 5 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect Seat Pad (9) to Seat Support Frame (4) using Bolts (17) and Washers (18). STEP 3 Slide Pin (10) down into Main Frame (1) and secure with Washer (13) and Nylon Lock Nut (14).
  • Page 6 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 5 Connect Back Pad (8) to Back Pad Support Frame (5) using Bolts (17) and Washers (18). Connect Back Pad Support Frame (5) to Main Frame (1) using Bolt (12), Washers (13 ) and Nylon Lock Nut (14). STEP 6 Connect Adjustable Back Pad Frame (6) to Back Pad Support Frame (5) using Bolt (12), Washers (13) and Nylon Lock Nut (14).
  • Page 7: Parts List

    PARTS LIST KPS-FID Parts List Rev B REF # ITEM 223-00060 MAIN FRAME KPS-FID 223-00059 U FRONT BASE, KPS-FID/KPS-FI 223-00319 REAR BASE M-FID 219-00002 SEAT SUPPORT FRAME KPS-FID 223-00061 BACK PAD SUPPORT FRAME KPS-FID 219-00123 ADJ BACK PAD KPS-FID 206-00051...
  • Page 8: Exploded View

    EXPLODED VIEW...
  • Page 9 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
  • Page 10 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
