Lat machine

Advertisement

KPS-LATM
L
M
AT
ACHINE
Questions?
Call our toll free Keys Fitness Helpline
1 - 8 0 0 - 6 8 3 - 1 2 3 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPS-LATM and is the answer not in the manual?

Questions and answers

Summary of Contents for Keys Fitness KPS-LATM

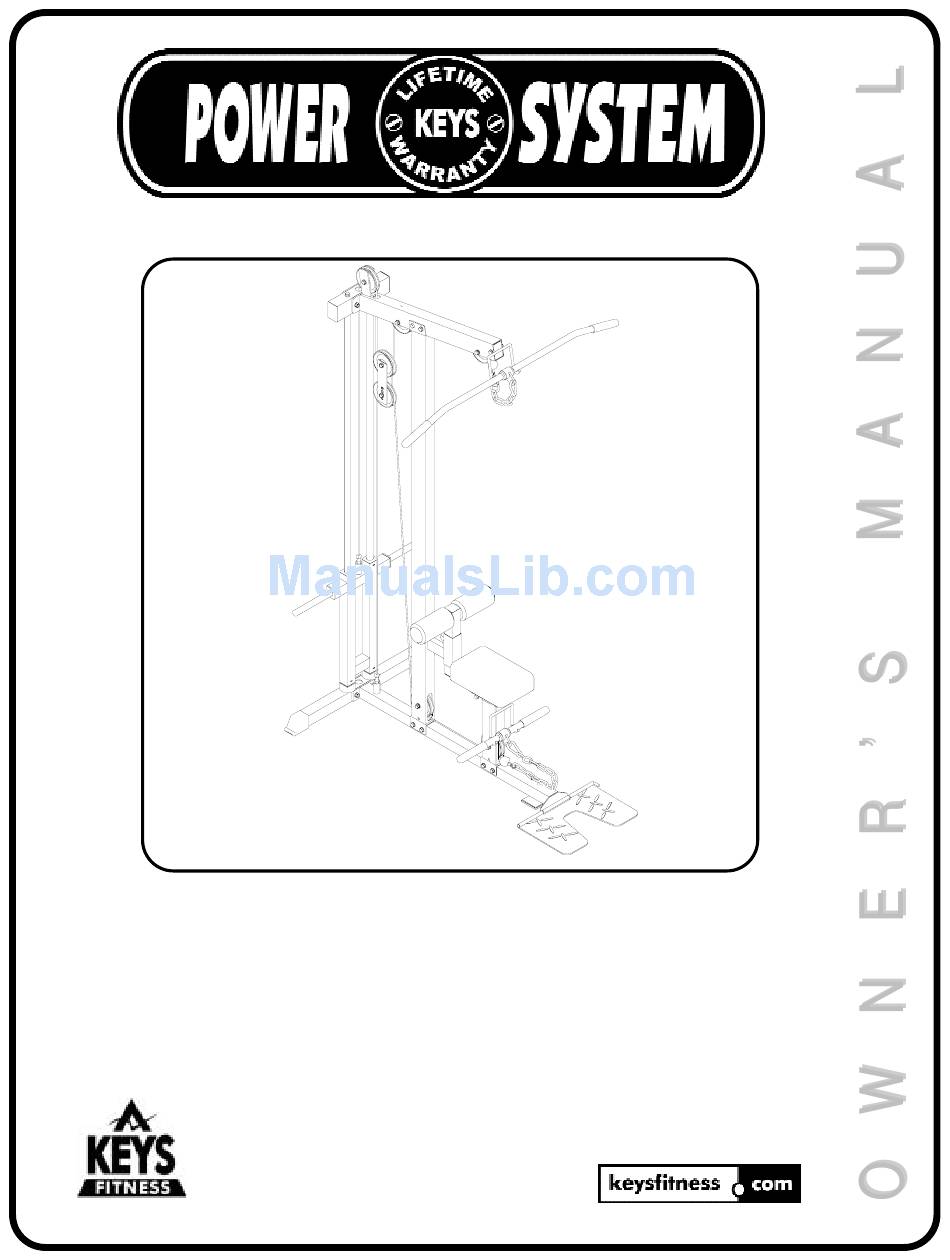

  • Page 1 KPS-LATM ACHINE Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
  • Page 2 10 days of purchase. POWER SYSTEM SERIES MODEL: KPS-LATM Q U E S T I O N S ? CALL 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
  • Page 3: Before You Start

    Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre-existing health problems. Keys Fitness Products LP assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Main Base (1) to Rear Base (2) using: 2 x (34) Bolt 4 x (31) Washer 2 x (37) Nylon Lock Nut Slide Guide Rods (9) down into Rear Base (2) and secure using: 2 x (36) Bolt 2 x (31) Washer...
  • Page 5: Upright

    ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Slide Weight Stack Bumpers (24) and Weight Holder Slide onto guide rods as shown. Connect Upright (3) to Main Base (1) using: 2 x (33) Bolt 4 x (31) Washer 2 x (37) Nylon Lock Nut Attach Seat Support (6) to Main Base (1) using:...
  • Page 6: Top Cross Frame

    ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Slide Top Cross Frame (5) on top of Guide Rods and secure using: 2 x (36) Bolt 2 x (31) Washer Attach Top Frame (4) to Upright and Top Cross Frame (5) using: 2 x (33) Bolt 2 x (34) Bolt 8 x (31) Washer...
  • Page 7 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Complete Cable (15,17) assembly using: 7 x (21) Pulley 4 x (33) Bolt 14 x (31) Washer 8 x (29) Pulley Spacer 7 x (37) Nylon Lock Nut 3 x (38) Bolt 2 x (28) Pulley Plate Attach Long Bar (19) and Short Bar (13) as shown.
  • Page 8: Roller Pad Frame

    ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 5 Complete leg hold down assembly using: 1 x (10) Roller Pad Frame 2 x (30) Foam 2 x (43) Big Plug 1 x (14) Pop Pin Complete Seat Pad (20) assembly using: 2 x (7) Seat Pad Tube 1 x (35) Bolt...
  • Page 9: Parts List

    PARTS LIST DESCRIPTION main base rear base upright top frame top cross frame seat support seat pad tube bar holder guide rod roller pad frame foot plate weight holder slide short bar pop pin high pulley cable short chain lower pulley cable long chain long bar seat pad...
  • Page 10: Exploded View

    EXPLODED VIEW...
  • Page 11 LIFETIME WARRANTY This Warranty applies in the United States and Canada to products manufactured or distributed by Keys Fitness Products, LP (“Keys”) under the KEYS brand name. The warranty period to the origi- nal purchaser is lifetime of the original purchaser.
  • Page 12 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
