1.3

Management by EMS

The EMS supports a Help menu option which provides a search similar to the Web GUI.
There is a convention used in this document to indicate navigation for menus, sub-menus,
and tab headings (both top of frame or side of frame). The example shown below would
be denoted in bold as follows:
SIP->Routing->Route Modes

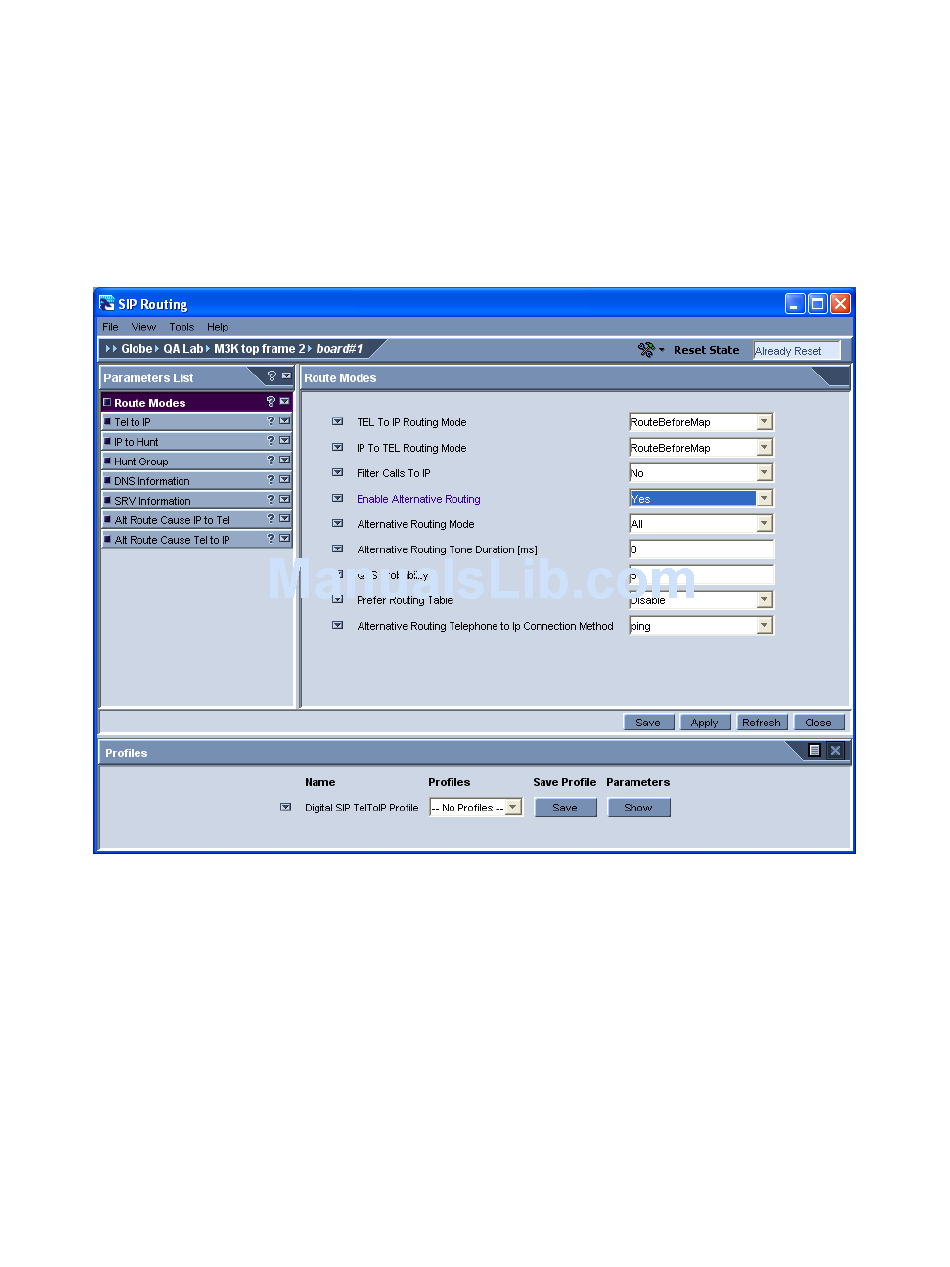

Figure 4 - Sample EMS Screen
1.4

AudioCodes Configuration File Basics

In addition to the Web and EMS view, each configuration parameter is part of an ASCII
file known as the initialization file or INI file (a.k.a. the conf file). Most parameters
follow in a simple NAME = VALUE, line by line sequence as shown below:
ALTROUTINGTEL2IPENABLE = 1
In general, the value 0 indicates FALSE or NO and 1 indicates TRUE or YES.
For more complex configuration parameters, the INI file supports tables. Table entries in
the document are indicated by using an underscore notation as shown below:
