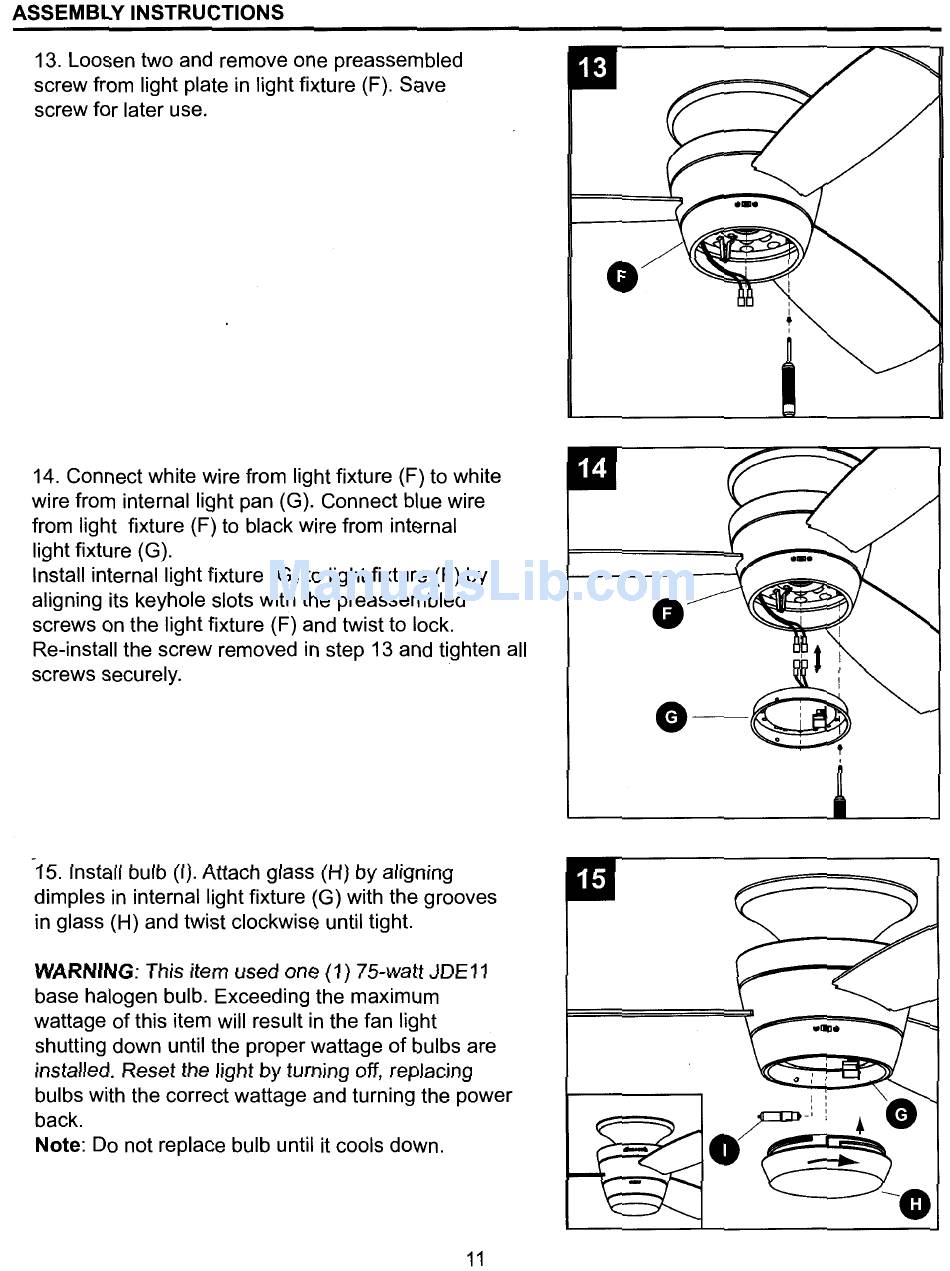

ASSEMBLY INSTRUCTIONS
13. Loosen two and remove one preassembled
screw from light plate in light fixture (F). Save
screw for later use.
14. Connect white wire from light fixture (F) to white
wire from internal light pan (G). Connect blue wire
from light fixture (F) to black wire from internal
light fixture (G).
Install internal light fixture (G) to light fixture (F) by
aligning its keyhole slots with the preassembled
screws on the light fixture (F) and twist to lock.
Re-install the screw removed in step 13 and tighten all
screws securely.
15.
Install bulb (1). Attach glass (H) by aligning
dimples in internal light fixture (G) with the grooves
in glass (H) and twist clockwise until tight.
WARNING: This item used one (1) 75-watt JDE11
base halogen bulb. Exceeding the maximum
wattage of this item will result in the fan light
shutting down until the proper wattage of bulbs are
installed. Reset the light by turning off, replacing
bulbs with the correct wattage and turning the power
back.
Note: Do not replace bulb until it cools down.
11
