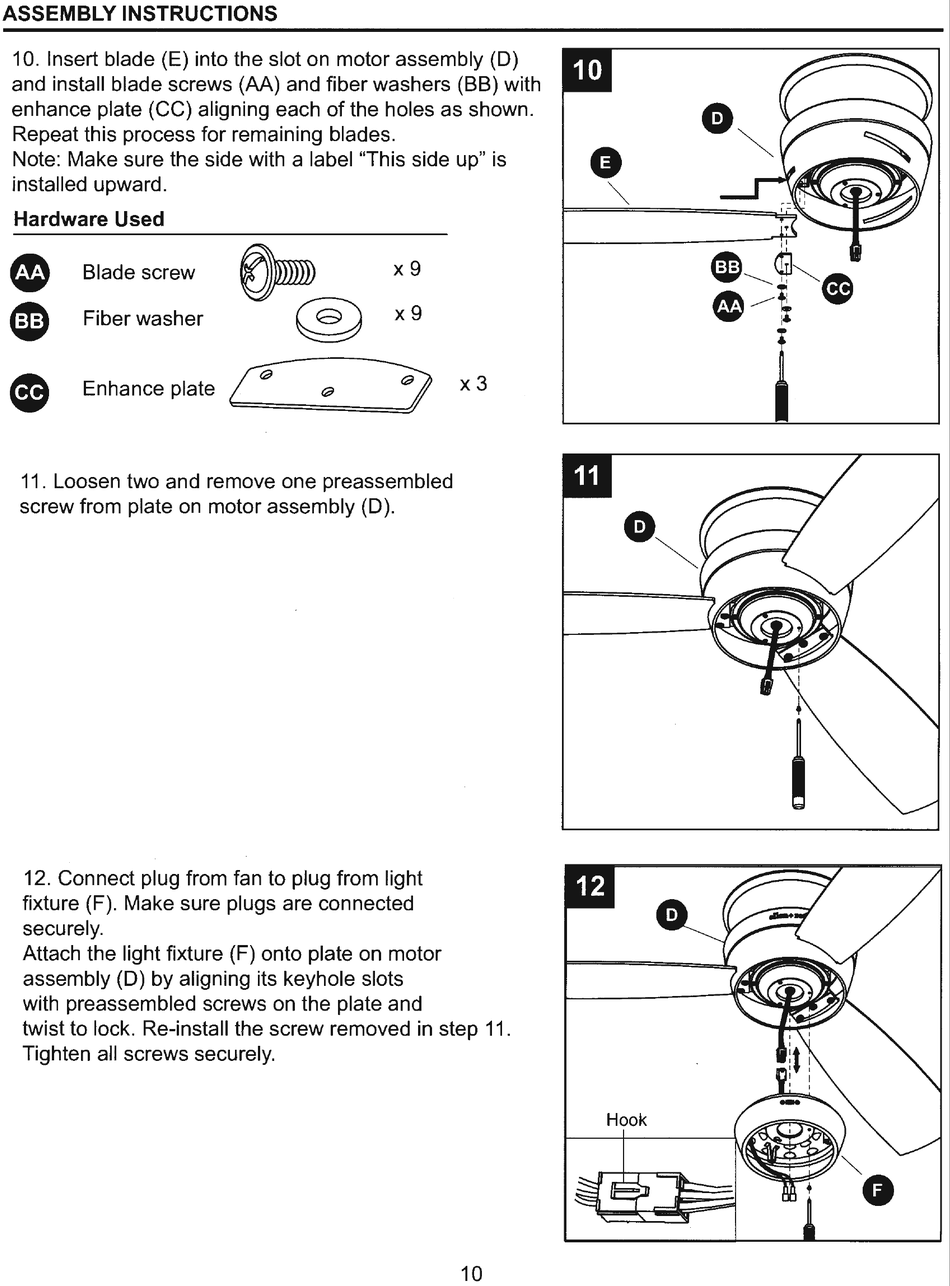

ASSEMBLY INSTRUCTIONS
10. Insert blade (E) into the slot on motor assembly (D)
and install blade screws (AA) and fiber washers (BB) with
enhance plate (CC) aligning each of the holes as shown.
Repeat this process for remaining blades.
Note: Make sure the side with a label "This side up" is
installed upward.
Hardware Used
•
Blade screw
~
x9
~
Fiber washer
®
x9
.
~
Enhance plate
c
fP
~
11 . Loosen two and remove one preassembled
screw from plate on motor assembly (D).
12. Connect plug from fan to plug from light
fixture (F). Make sure plugs are connected
securely.
Attach the light fixture (F) onto plate on motor
assembly (D) by aligning its keyhole slots
with preassembled screws on the plate and
x3
twist to lock. Re-install the screw removed in step 11 .
Tighten all screws securely.
