KPS-CR
C
R
ALF
AISE
Questions?
Call our toll free Keys Fitness Helpline
1 - 8 0 0 - 6 8 3 - 1 2 3 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CALF RAISE KPS-CR and is the answer not in the manual?

Questions and answers

Summary of Contents for Keys Fitness CALF RAISE KPS-CR

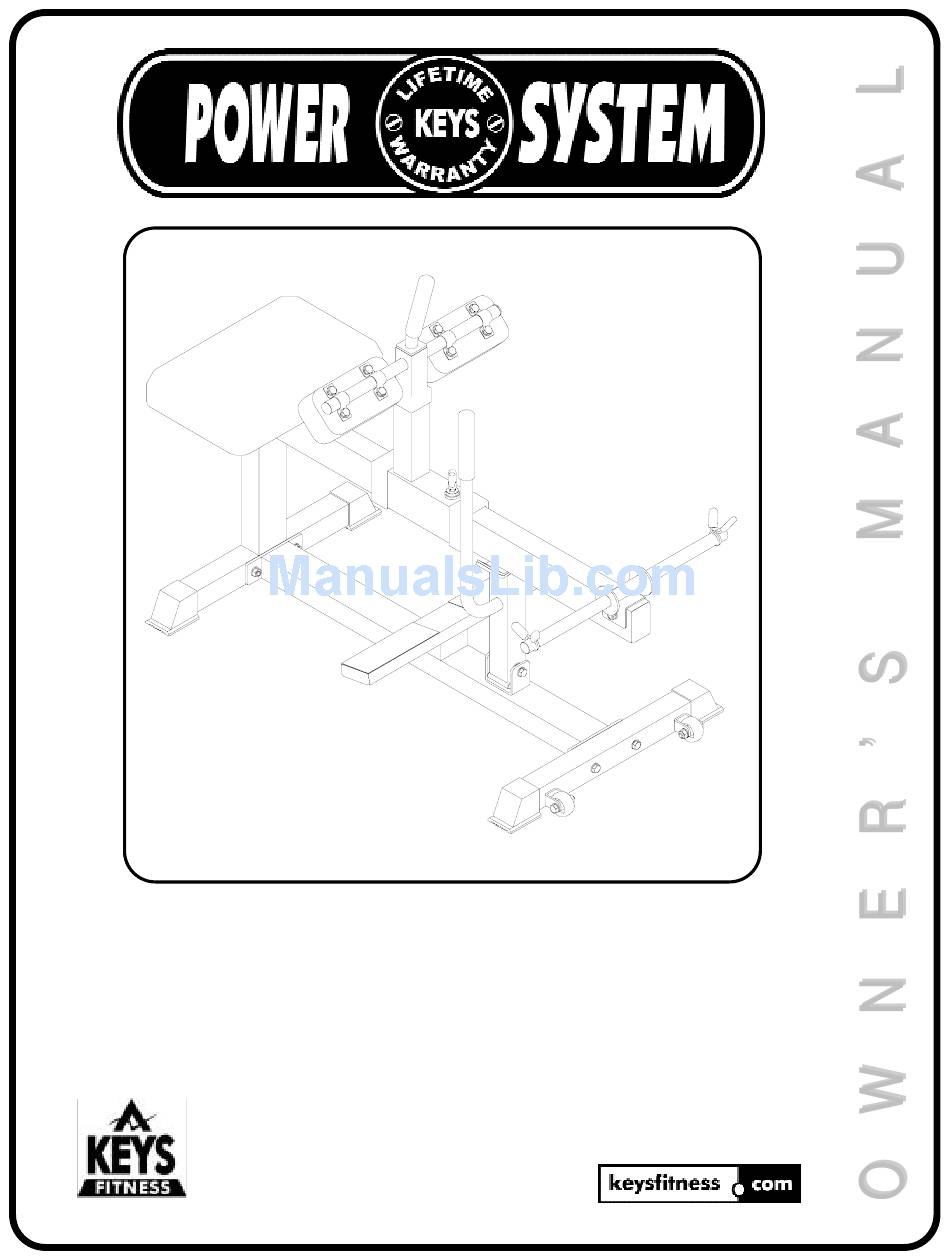

  • Page 1 KPS-CR AISE Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
  • Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
  • Page 3: Before You Start

    • This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
  • Page 4 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Rear Upright (2) and Front Base (3) to Cross Base (1) using: 4 x (29) Bolt 8 x (33) Washer 4 x (32) Nylon Lock Nut ASSEMBLY...
  • Page 5 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Attach Stopper Frame (5) to Cross Base (1) as shown using: 1 x (30) Bolt 2 x (33) Washer 1 x (34) Short Sleeve Tube 2 x (10) Bronze Bushing 1 x (32) Nylon Lock Nut...
  • Page 6 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Swing Frame (4) to Rear Upright (2) as shown using: 1 x (16) Long Sleeve Tube 2 x (10) Bronze Bushing 1 x (32) Nylon Lock Nut Attach Seat (26) to Swing Frame (4) using: 2 x (27) Bolt ASSEMBLY...
  • Page 7 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Slide Adjustable Slide (6) onto Swing Frame (4) and secure with Long Pop Pin (8).
  • Page 8 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 5 Attach Weight Holder to Swing Frame (4) using: 1 x (29) Bolt 1 x (32) Nylon Lock Nut Attach Right and Left Knee Pads (14,15) to Adjstable Pad Frame (7) using: 4 x (11) Bracket 8 x (27) Bolt...
  • Page 9: Parts List

    DESCRIPTION cross base rear upright front base swing frame stopper frame adjustable slide adjustable pad frame long pop pin weight holder bronze bushing 16*12.8*12.7 bracket spring clip plastic sleeve 88.9x63.5-76.2x50.8 right knee pad left knee pad long sleeve tube end cap 50.8 plug 25.4x76.2 plug 50.8x76.2 plastic sleeve 50.8x44.5...
  • Page 10: Exploded View

    EXPLODED VIEW...
  • Page 11 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
  • Page 12 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
