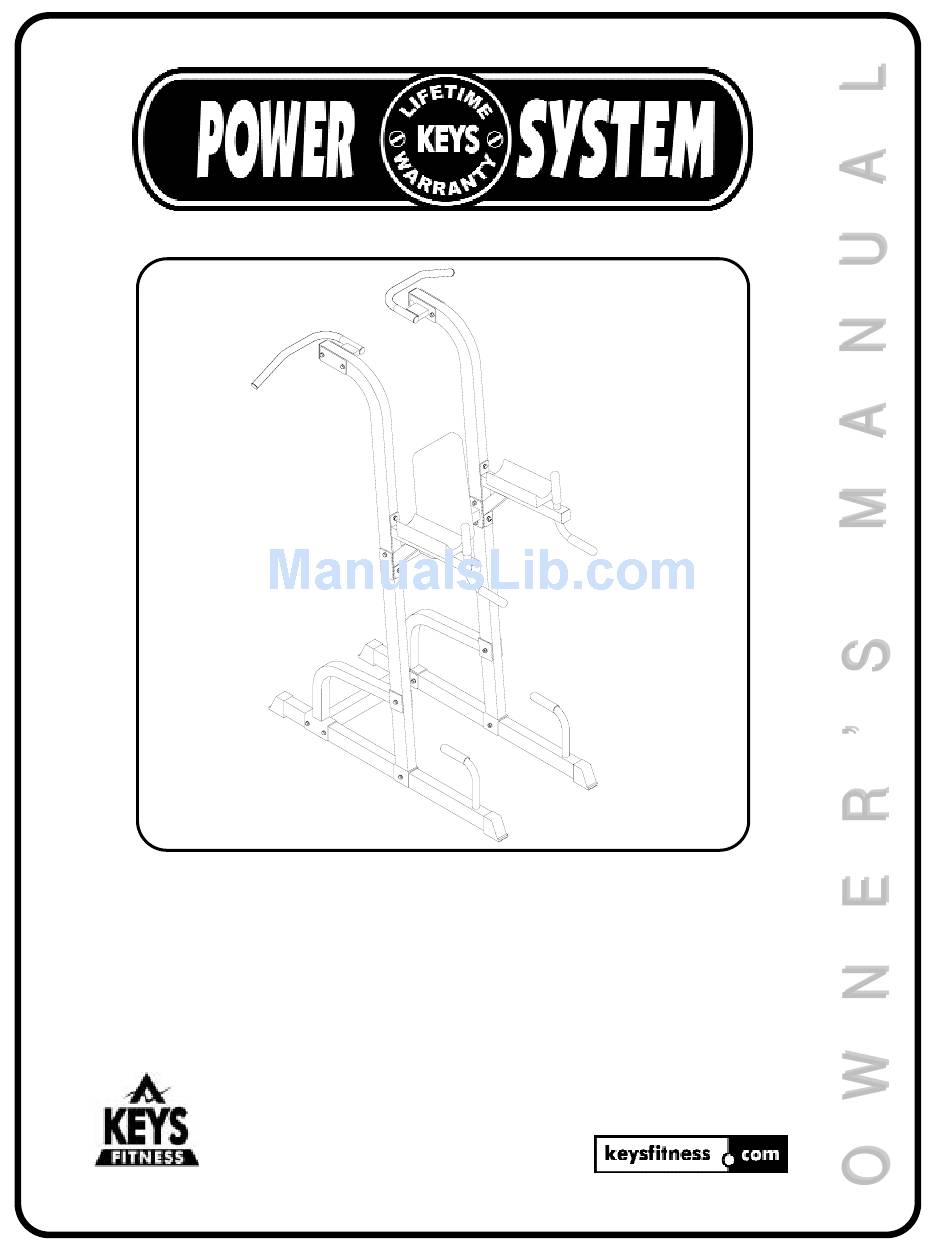

- Page 1 KPS-PT OWER OWER Questions? Call our toll free Keys Fitness Helpline 1 - 8 0 0 - 6 8 3 - 1 2 3 6...
- Page 2 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service technicians on site to take care of you, our valued customer.
-
Page 3: Before You Start
• This Power System unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. - Page 4 Connect Upright Frame (1) to Base Frame (8) using Bolt (22), Washers (19) and Nylon Lock Nut (25). Connect Elbow Pad Support Frame (4) to Upright Frame (1) using Bolts (24), Washers (19), Large Washers (21) and Nylon Lock Nuts (25). Repeat Step 1 for other side of KPS-PT.
- Page 5 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect Back Pad Support Frame (5) to both Upright Frames (1) using Bolts (23), Washers (19), Nylon Lock Nuts (25) and Small Plates (11). NOTE: Small Plates (11) are to be placed on the outside of the machine.
- Page 6 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Right and Left Chin-Up Bars (6,7) to Upright Frames using Bolts (22), Washers (19), Nylon Lock Nuts (25) and Big Plates (12). Attach Bolt Cap (20) On The Bolt (22) End. NOTE: Big Plates (12) are to be placed on the outside of the machine.
- Page 7 ASSEMBLY NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Connect Back Pad (13) to Back Pad Support Frame using Bolts (27) and Washers (19). Connect Elbow Pads (10) to Elbow Pad Support Frames using Bolts (27) and Washers (19).
-
Page 8: Parts List
DESCRIPTION Upright Frame Left Angle Support Right Angle Support Elbow Pad Support Frame Back Pad Support Frame Right Chin-Up Bar Left Chin-Up Bar Base Frame Cross Frame Elbow Pad Small Plate Big Plate Back Pad Plug OD32 Rubber Grip Grip Plug 50.8x76.2 End Cap 50.8x76.2 Washer 10... -
Page 9: Exploded View
EXPLODED VIEW... - Page 10 Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
- Page 12 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-800-683-1236...
