mPCIe Combo IV card installation

ROG mPCIe Combo IV card offers expandability solutions with the latest connectivity
standards via the proprietary connector onboard. It provides mini PCI Express 2.0 plus USB
2.0 which is bundled with Wi-Fi and Bluetooth module and features the M.2 (NGFF) slot for
installing an SSD card.
•
•
•
Installing the M.2 (NGFF) SSD module
To install M.2 (NGFF) SSD module:

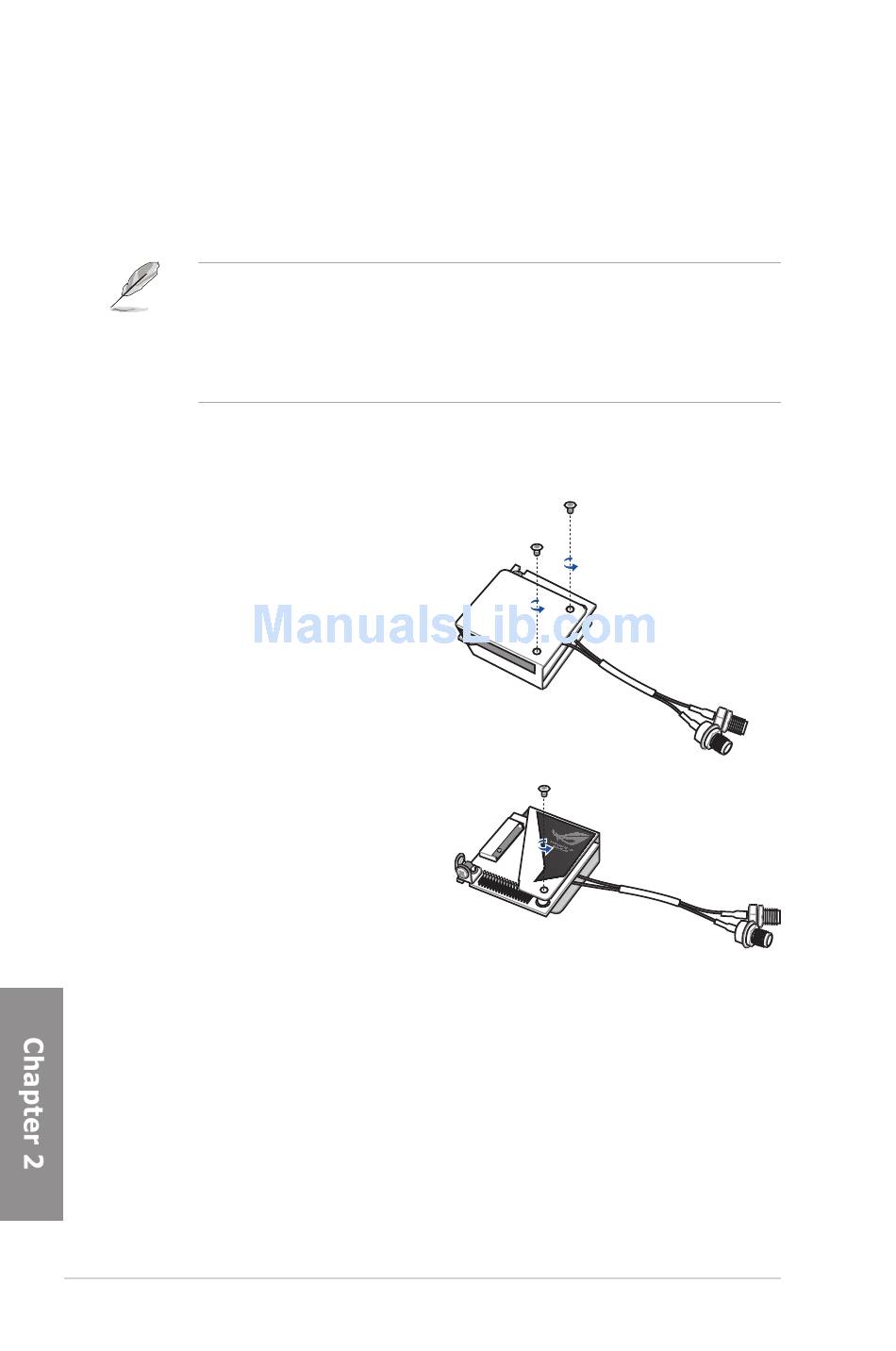

1. Remove the two short screws at the
back of the mPCIe Combo IV card metal
cover.
2. Remove the long screw at the front,
then remove the metal cover.
2-14
The mPCIe Combo IV card supports 26.8mm x 30mm half-sized mPCIe module on
one side and M.2 (NGFF) Type 2242 (22mm x 42mm), 2260 (22mm x 60mm), 2280
(22mm x 80mm), or 22110 (22mm x110mm) SSD cards for slot B on the other side.
The M.2 (NGFF) SDD card is purchased separately.
The mPCIe Combo IV card supports the PCIe interface only.
