Installation

NB. For FRU units - go straight to point 6.

Loosen the fi xing screw in the base of the unit to release the

Wiring Cover.

Holding the unit face downwards, press fi rmly in the

centre of the wallplate and slide it apart and lift it from the

module.

Fix the wallplate and terminal block to the wall, or plaster

box, as required. Ensure that the screw heads do not

protrude beyond the vertical centre rib of the wallplate,

or this will prevent the module correctly locating onto the

wallplate.

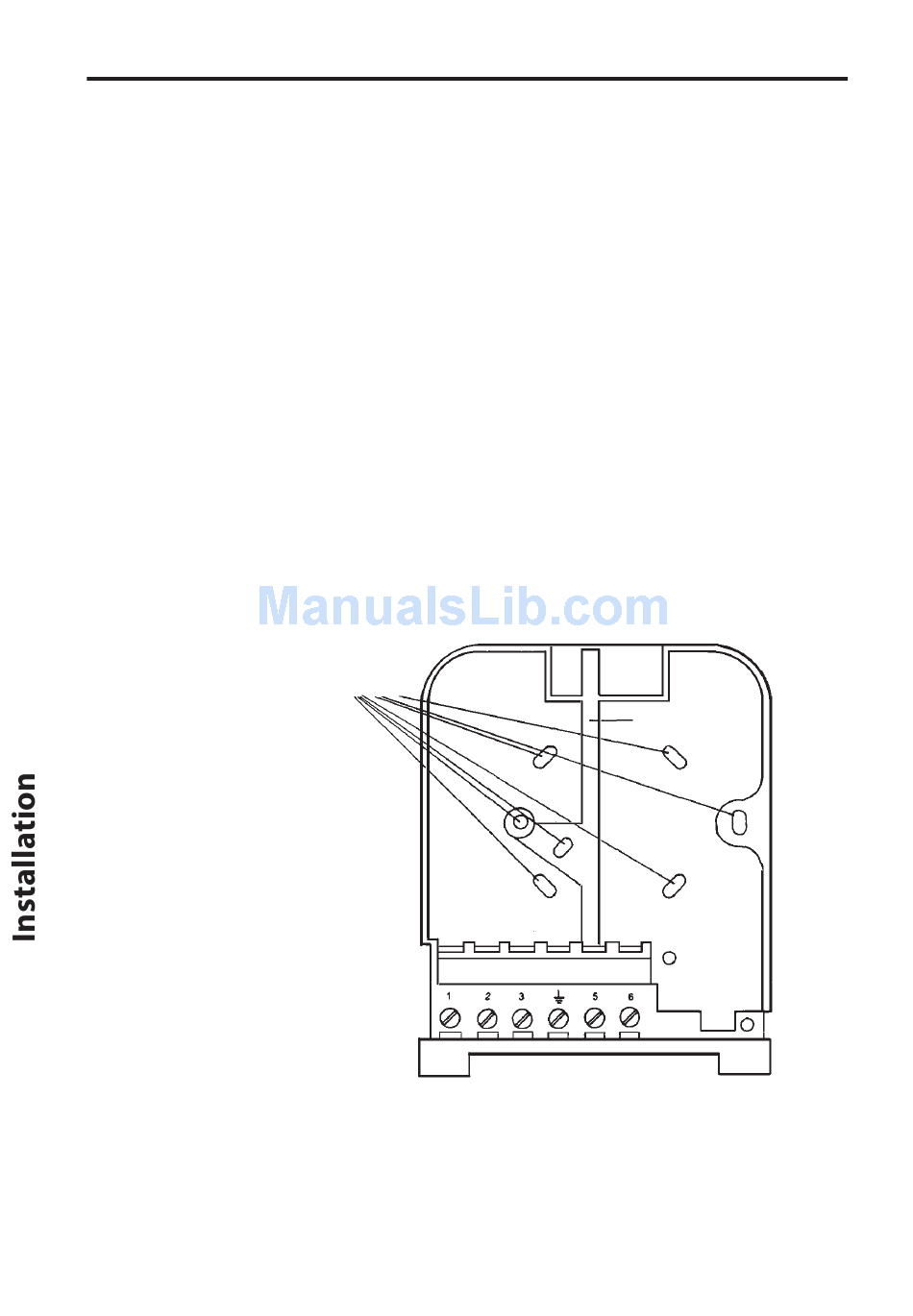

Screw fi xing holes

(screwheads MUST

NOT protrude above

centre rib)

Surface cables can only enter from below the unit. Cut

an appropriate cable aperture in the wiring cover. If the

wallplate is mounted on a plaster box, cables can enter

from the rear below the terminal block.

Vertical centre rib

Wallplate & Terminals
