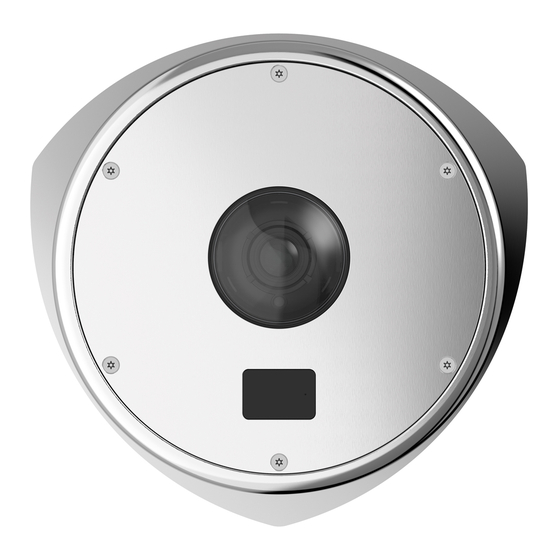

AXIS Q8414-LVS Network Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q8414-LVS and is the answer not in the manual?

Questions and answers

Related Manuals for Axis Q8414-LVS

Summary of Contents for Axis Q8414-LVS

  • Page 1: User Manual

    AXIS Q8414-LVS Network Camera User Manual...
  • Page 2 Axis Communications AB. See Contact Information on page 3 . may also be beneficial, for developing shell scripts and applications. Later versions of this document will be posted to the Axis website, Electromagnetic Compatibility (EMC) as required. See also the product’s online help, available via the This equipment has been designed and tested to fulfill applicable web-based interface.
  • Page 3 Battery The Axis product uses a 3.0 V BR/CR2032 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years. Low battery power affects the operation of the RTC, causing it to reset at every power-up.

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........
  • Page 5 AXIS Q8414-LVS Network Camera Table of Contents Upgrade the Firmware ......... . .

  • Page 6: Hardware Overview

    AXIS Q8414-LVS Network Camera Hardware Overview Hardware Overview Cable gasket (network cable) Cable gasket (I/O or audio cable) PoE Class selector * Network connector Audio out connector LED indicators Audio in connector I/O connector Control button 10 IR window 11 Microphone...

  • Page 7: Control Button

    Resetting the product to factory default settings. See page 54. • Connecting to an AXIS Video Hosting System service. See page 46. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...
  • Page 8 AXIS Q8414-LVS Network Camera Hardware Overview Status Green Steady green for normal operation. Amber Steady during startup and when restoring settings. Slow flash for failed upgrade. Power Normal operation. Green Amber Flashes green/amber during firmware upgrade. Note • The Status LED can be configured to be unlit during normal operation. To configure, go to Setup > System Options > Ports &...

  • Page 9: Access The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 10: Set Power Line Frequency

    4. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 54) or by resetting the product to factory default.
  • Page 11 Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Config > Action Buttons. The Audio clip drop-down list allows you to play an audio clip from the Live View page. Select the audio clip and click the Play button.
  • Page 12 Access the Product AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 14 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 13 AXIS Q8414-LVS Network Camera Access the Product Click the Ctrl panel button to open the PTZ control panel which provides additional PTZ controls. User-defined buttons can also appear in the Control panel. See Controls on page 31. Select a PTZ preset position to steer the camera view to the saved position. See Preset Positions on page 30.

  • Page 14: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 15: Alternative Methods Of Accessing The Video Stream

    AXIS Q8414-LVS Network Camera Media Streams The AMC Control Panel can be used to configure various video and audio settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...

  • Page 16: Access Audio Streams

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 17: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...
  • Page 18 AXIS Q8414-LVS Network Camera Set Up the Product 3. Click in the Focus position bar to focus on a desired location. The buttons < and > move the focus position one step in either direction. The buttons << and >> move the focus position in multiple steps in either direction.

  • Page 19: Video And Audio

    AXIS Q8414-LVS Network Camera Video and Audio Video and Audio The video and audio settings can be used to optimize video and audio quality. You can configure the following: • Video stream settings. See page 19. • Stream profiles. See page 20.

  • Page 20: Stream Profiles

    Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Page 21: Camera Settings

    White Balance White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.
  • Page 22 The shutter and gain settings affect the amount of motion blur and noise in the image. To adapt to different lighting, available storage space and bandwidth, it is often necessary to prioritize either low motion blur or low noise. The Axis product allows using different prioritization in normal light and in low light.

  • Page 23: View Area

    4. Select Enable PTZ to enable digital PTZ for the view area. 5. Click Save to save the settings. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Overlay Overlays are used to provide extra information, for example for forensic video analysis or during product installation and configuration.

  • Page 24: Overlay Image

    For more information about privacy masks, see Privacy Mask on page 24. To use an overlay image, the image must first be uploaded to the Axis product. The uploaded image should be a Windows 24-bit BMP image with maximum 250 colors. The image width and height, in pixels, must be exactly divisible by 4 and cannot be larger than the maximum image resolution.

  • Page 25: Focus & Zoom

    Half-duplex - Audio can be transmitted to and from the Axis product but only in one direction at a time. To transmit audio using the Live View page, use the Talk and Listen buttons, see AMC Audio Controls on page 12.

  • Page 26: Audio Input

    AXIS Q8414-LVS Network Camera Video and Audio To set the audio mode, go to Video & Audio > Audio Settings and select the desired mode from the Audio mode drop-down list. Audio Input An external microphone or a line source can be connected to the Audio-in connector. Configure the audio input settings under Video &...

  • Page 27: Audio Clips

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 37.

  • Page 28: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 29 Select Enable recording button to enable recording from the Live View page. This button is available when using the AMC viewer. The recordings are saved to the location specified in the AMC Control Panel. See AXIS Media Control (AMC) on page 14.

  • Page 30: Ptz (Pan Tilt Zoom)

    AXIS Q8414-LVS Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if digital PTZ (pan, tilt and zoom) is enabled in the selected view area. For more information on view areas, see View Area on page 23.

  • Page 31: Advanced

    AXIS Q8414-LVS Network Camera PTZ (Pan Tilt Zoom) 5. Specify the View Time in seconds or minutes. 6. Specify the View Order or select the Random view order option. 7. Click Save. To modify or remove guard tours, go to PTZ > Guard Tour, select the guard tour in the Guard Tour List and click Modify/Remove.

  • Page 32: Detectors

    Motion Detection Parameters on page 33. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Set Up Action Rules on page 37.
  • Page 33 AXIS Q8414-LVS Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.

  • Page 34: Audio Detection

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Page 35: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 36 AXIS Q8414-LVS Network Camera Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 37: Events

    Events The Event pages allow you to configure the Axis product to perform actions when different events occur. For example, the product can start a recording or send an email notification when motion is detected. The set of conditions that defines how and when the action is triggered is called an action rule.
  • Page 38 AXIS Q8414-LVS Network Camera Events Day/Night Mode – Trigger the rule when the product switches between day mode (IR cut filter on) and night mode (IR cut filter off). This can for example be used to control an external infrared (IR) light connected to an output port.

  • Page 39: Add Recipients

    AXIS Q8414-LVS Network Camera Events • Play Audio Clip – See Audio Clips on page 27. • PTZ Control Preset Position – Go to a preset position. Guard Tour – Start a guard tour. See Guard Tour on page 30.

  • Page 40: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see . Create Schedules Schedules can be used as action rule triggers or as additional conditions, for example to record video if motion is detected outside office hours.

  • Page 41: Recordings

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 50. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.
  • Page 42 AXIS Q8414-LVS Network Camera Recordings 5. Click Save to save and start the recording.

  • Page 43: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.

  • Page 44: Audio Support

    Check the box to enable the IEEE 802.1X protocol. Audio Support Select Enable audio support to allow clients to retrieve audio streams from the Axis product. For information on how to configure audio settings, see Audio Settings on page 25.

  • Page 45: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 46 AVHS service. Always - The Axis product will constantly attempt to connect to the AVHS service over the Internet. Once registered the product will stay connected to the service. This option can be used when the product is already installed and it is not convenient to use the...
  • Page 47 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 48 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Page 49 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).

  • Page 50: Storage

    Note For SD card recommendations see www.axis.com The Axis product supports SD cards with up to 64 GB of storage. For best recording performance, use an SDHC or SDXC card with speed class 10. The following SD card file systems are supported: •...

  • Page 51: Network Share

    System Options The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.

  • Page 52: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 53: Support

    System Overview To get an overview of the Axis product’s status and settings, go to System Options > Support > System Overview. Information that can be found here includes firmware version, IP address, network and security settings, event settings, image settings and recent log items.

  • Page 54: Reset To Factory Default Settings

    System Options File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 55: Troubleshooting

    To upgrade the product’s firmware: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2. Go to Setup > System Options > Maintenance in the product’s webpages.

  • Page 56: Symptoms, Possible Causes And Remedial Actions

    Troubleshooting 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 57 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.
  • Page 58 AXIS Q8414-LVS Network Camera Troubleshooting No audio Incorrect setup Check the sound card in the computer. Ensure that mute is not selected and that the volume settings are correct. Check that Enable audio support is selected under Setup > System Options > Security > Audio Support.

  • Page 59: Technical Specifications

    AXIS Q8414-LVS Network Camera Technical Specifications Technical Specifications Item Specifications Function/group Camera Models AXIS Q8414-LVS Network Camera Image sensor Progressive Scan RGB CMOS 1/3” Lens Varifocal, remote focus and zoom, P-Iris control, megapixel resolution, 2.5-6 mm, F1.2 Horizontal angle of view: 107° - 49°...
  • Page 60 This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young (eay@cryptsoft.com). System Application Open API for software integration, including VAPIX® and AXIS Camera Application Integration Programming Platform, specifications at www.axis.com Interface AXIS Video Hosting System (AVHS) with One-Click Camera Connection.
  • Page 61 Axis’ Application Development Partners (not included). For more software information, see www.axis.com/products/video/software Optional AXIS Q8414-LVS Smoked dome accessories AXIS Q8414-LVS IR Window B I/O Audio Cable 5 m (16 ft) AXIS T8640 Ethernet over Coax Adaptor PoE+ (requires AXIS T8642 Mounting Kit A) AXIS Door Switch A...

  • Page 62: Connectors

    AXIS Q8414-LVS Network Camera Technical Specifications Connectors I/O Connector 4-pin terminal block for: • Auxiliary power (DC output) • Digital Input • Digital Output • 0 V DC (-) Function Notes Specifications 0 V DC 0 V DC (-) DC output Can be used to power auxiliary equipment.

  • Page 63: Performance Considerations

    AXIS Q8414-LVS Network Camera Technical Specifications 1 Tip 2 Ring 3 Sleeve Audio Input Ground Microphone/Line in Audio Output Ground Line out (mono) SD Card Slot Supports SD cards with up to 64 GB of storage. For best recording performance, use an SDHC or SDXC card with speed class 10.
  • Page 64 User Manual Ver. M1.4 AXIS Q8414-LVS Network Camera Date: October 2014 © Axis Communications AB, 2014 Part No. 60371...
