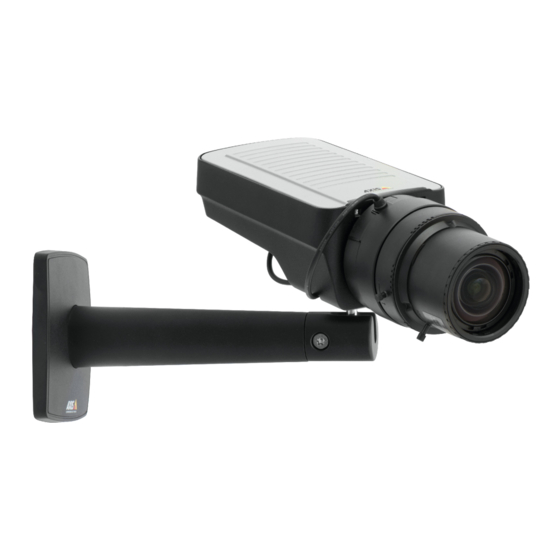

AXIS Q1635 Network Camera
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q1635 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis Q1635

Summary of Contents for Axis Q1635

  • Page 1 AXIS Q1635 Network Camera Installation Guide...
  • Page 2 Search by product, category, or phrase Every care has been taken in the preparation of this • report problems to Axis support staff by logging in to document. Please inform your local Axis office of any your private support area inaccuracies or omissions.
  • Page 3 EN 61000-6-1 residential, commercial and Caused by Electronic Information Products (ACPEIP). light-industrial environments. Contact Information This product fulfills the requirements for immunity Axis Communications AB according to EN 61000-6-2 industrial environments. Emdalavägen 14 This product fulfills the requirements for immunity 223 69 Lund...

  • Page 5: Hazard Levels

    AXIS Q1635 Network Camera Safety Information Read through this Installation Guide carefully before installing the product. Keep the Installation Guide for future reference. Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 6: Safety Instructions

    TICE • The Axis product shall be used in compliance with local laws and regulations. • To use the Axis product outdoors, or in similar environments, it shall be installed in an approved outdoor housing. • Store the Axis product in a dry and ventilated environment.
  • Page 7 WARNING • Risk of explosion if the battery is incorrectly replaced. • Replace only with an identical battery or a battery which is recommended by Axis. • Dispose of used batteries according to local regulations or the battery manufacturer's instructions.

  • Page 9: Installation Steps

    Installation Guide This Installation Guide provides instructions for installing AXIS Q1635 Network Camera on your network. For other aspects of using the product, see the User Manual available at www.axis.com Installation Steps 1. Make sure the package contents, tools and other materials necessary for the installation are in order.

  • Page 10: Hardware Overview

    AXIS Q1635 Network Camera Hardware Overview Status LED indicator Focus ring Lock screw for focus ring Zoom puller...
  • Page 11 14. microSD Card slot 15. Audio in 16. Audio out Important If the Axis product is installed in an external camera housing, leave an unobstructed cylinder-shaped zone with Ø85 mm (3 3/8 in) around the lens to enable lens movements within the housing.

  • Page 12: Led Indicators

    AXIS Q1635 Network Camera LED Indicators Color Indication Net- Green Steady for connection to a 100 Mbit/s network. Flashes for network work activity. Amber Steady for connection to a 10 Mbit/s network. Flashes for network activity. Unlit No network connection.

  • Page 13: Status Led Behavior For Focus Assistant

    AXIS Q1635 Network Camera Status LED Behavior for Focus Assistant Color Indication Green Focus Assistant is enabled The lens is optimally adjusted Amber The camera has been moved, or an object has been inserted in front of the lens. Exit and restart the Focus Assistant.
  • Page 14 (LPS) with either a rated output power limited to ≤100 W or a rated output current limited to ≤5 A. Mini DC connector. Use the supplied adapter. Audio Connector The Axis product has the following audio connectors: • Audio in (pink) – 3.5 mm input for a mono microphone, or a line-in mono signal. •...

  • Page 15: Specifications

    • Resetting the product to factory default settings. See page 22. • Connecting to an AXIS Video Hosting System service or AXIS Internet Dynamic DNS Service. For more information about these services, see the User Manual. Function Button The function button has multiple functions: •...
  • Page 16 AXIS Q1635 Network Camera I/O connector 4–pin terminal block for: • 0 V DC (-) • Auxiliary power (DC output) • Digital Input • Digital Output Function Notes Specifications 0 V DC (-) DC output Can be used to power auxiliary equipment.
  • Page 17 AXIS Q1635 Network Camera 12 V max 50 mA Setup example: I/O configured as input I/O configured as output Power Connector 2-pin terminal block for DC power input power input. Use a Safety Extra Low Voltage (SELV) compliant limited power...
  • Page 18 AXIS Q1635 Network Camera Audio Connector 3.5 mm audio connectors (stereo) 1 Tip 2 Ring 3 Sleeve Audio Input Ground Microphone/Line in Audio Output Ground Line out (mono) RS485/422 Connector Two 2-pin terminal blocks for RS485/RS422 serial interface. The serial port can be configured to support: •...

  • Page 19: Install The Hardware

    AXIS Q1635 Network Camera Install the Hardware NO TICE TICE TICE Due to local regulations or the environmental and electrical conditions in which the product is to be used, a shielded network cable (STP) may be appropriate or required. Any network cables that are routed outdoors or in demanding electrical environments shall be shielded (STP) and intended for their specific use.

  • Page 20: Focus Assistant

    AXIS Q1635 Network Camera 1. Open the product’s home page and go to Setup > Basic Setup > Focus. 2. Under the Basic tab, click Open iris. If the button is inactive the iris is already open. 3. If focus has been set before, click Reset to reset the back focus.

  • Page 21: Replace The Lens

    12. If needed, make further adjustments under the Advanced tab. See the online help for more information. Replace the Lens It is possible to use optional lenses for the Axis product. To replace the lens: 1. Disconnect the iris cable.

  • Page 22: Reset To Factory Default Settings

    > System Options > Maintenance. Further Information The User Manual is available at www.axis.com Visit www.axis.com/techsup to check if there is updated firmware available for your network product. To see the currently installed firmware version, go to Setup > About.

  • Page 23: Warranty Information

    AXIS Q1635 Network Camera Visit Axis learning center www.axis.com/academy for useful trainings, webinars, tutorials and guides. Warranty Information For information about Axis’ product warranty and thereto related information, see www.axis.com/warranty/...
  • Page 24 Installation Guide Ver. M1.2 AXIS Q1635 Network Camera Date: December 2014 © Axis Communications AB, 2014 Part No. 61117...
