5P Hex/5P Hex Pearl
Beam angle 30
Intensity(LUX)
Red LEDs 562
Green LEDs 1121
Blue LEDs 1030
White LEDs 1544
Amber LEDs 387
UV LEDs 313
Full LEDs 4420
3
2
1
0
1
2
3
0 1 2
30° Diameter(m) 0.52 1.05
5P Hex/5P Hex Pearl
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
ADJ Products, LLC - www.adj.com - 5P Hex/5P Hex Pearl User Manual Page 18

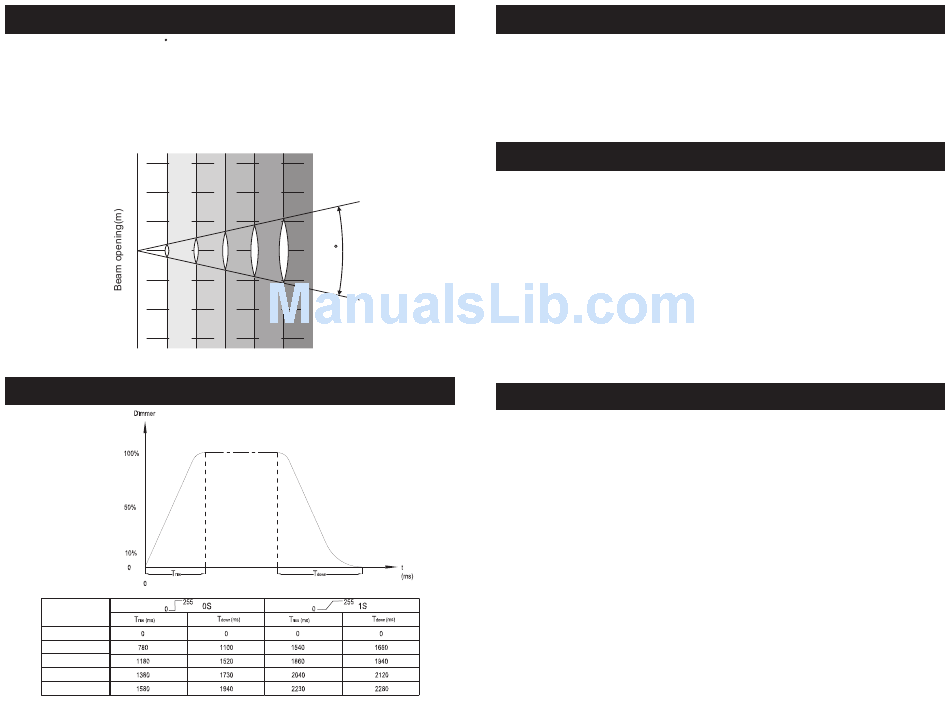

Photometric Chart

152 70 40 27
300 136 76 49
283 130 75 48
410 187 101 66
100 45 28 20
81 37 21 14
1220 561 318 210
30
3 4 5
1.58 2.13 2.66
Dimmer Curve Chart
(Fade Time) (Fade Time)
5P Hex/5P Hex Pearl
Disconnect the unit from its power source. Remove the power cord
from the unit. Once the cord has been removed, you will find that the
fuse holder is located inside the power socket. Insert a flat-head screw
driver into the power socket and gently pry out the fuse holder. Remove
the bad fuse and replace with a new one. The fuse holder also has a
holder for a spare fuse.
5P Hex/5P Hex Pearl
Listed below are a few common problems the user may encounter,
with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are
wired correctly (pin 3 is "hot"; on some other DMX devices
pin 2 may be 'hot'). Also, check that all cables are connected
to the right connectors; it does matter which way the inputs
and outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
2. Make sure that Sound Active mode is activated.
5P Hex/5P Hex Pearl
Due to fog residue, smoke, and dust cleaning the internal and exter-
nal optical lenses must be carried out periodically to optimize light
output.
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing.
2. Clean the external optics with glass cleaner and a soft cloth
every 20 days.
3. Always be sure to dry all parts completely before plugging
the unit back in.
Cleaning frequency depends on the environment in which the fixture
operates (i.e. smoke, fog residue, dust, dew).
ADJ Products, LLC - www.adj.com - 5P Hex/5P Hex Pearl User Manual Page 19
Fuse Replacement
Trouble Shooting
Cleaning
