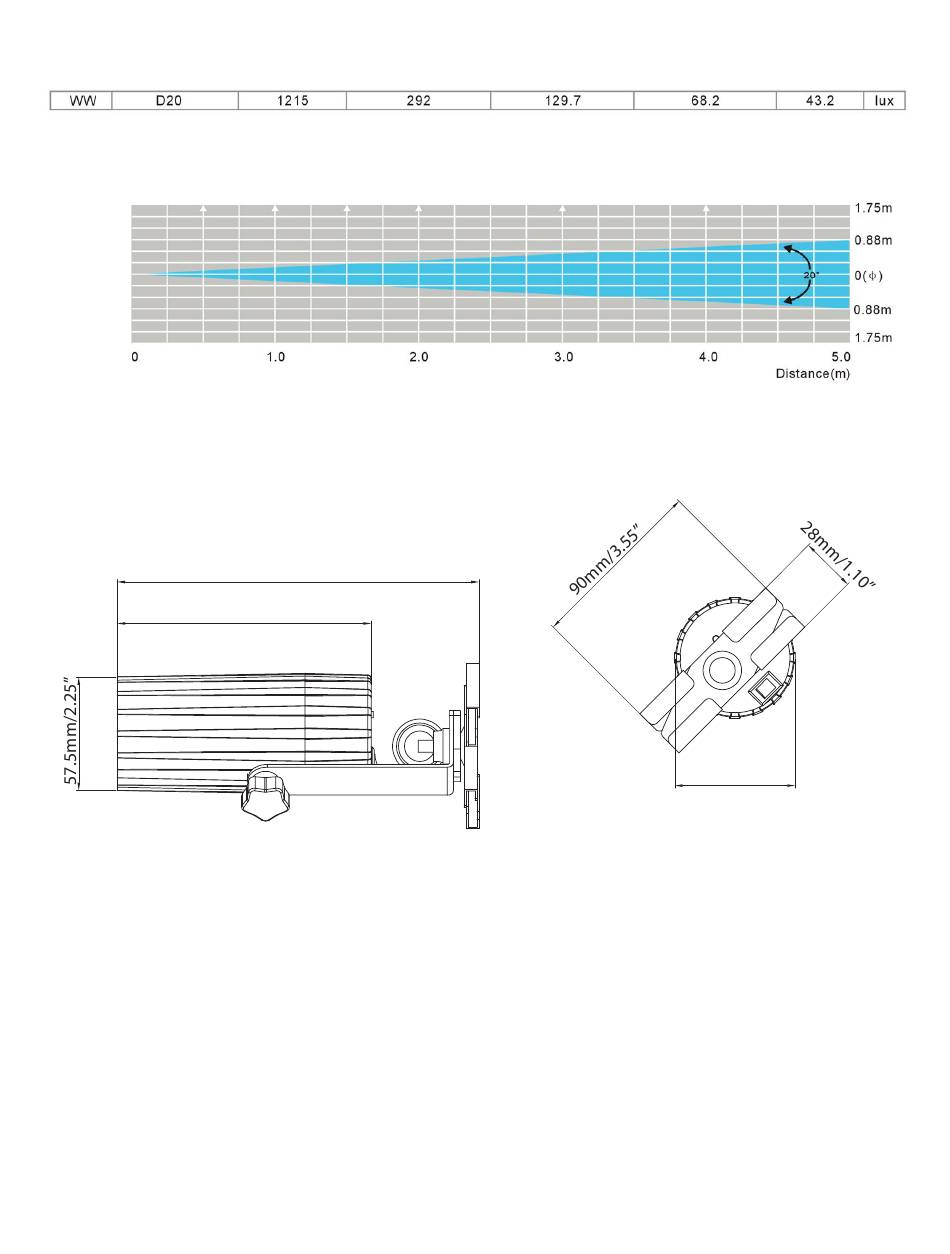

P H O T O M E T R I C C H A R T
D I M E N S I O N A L D R A W I N G S
C L E A N I N G
Due to fog residue, smoke, and dust, cleaning of the internal and external optical lenses must be car-
ried out periodically in order to optimize light output.
• Use normal glass cleaner and a soft cloth to periodically wipe down both the outside casing and
the external optics.
• Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi-
due, dust, dew).
183mm/7.20"
128.5mm/5"
13
61mm/2.40"
