ULTRA HEX BAR 12
User Manual
Revised 09/29/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA HEX BAR 12 and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ ULTRA HEX BAR 12

Summary of Contents for ADJ ULTRA HEX BAR 12

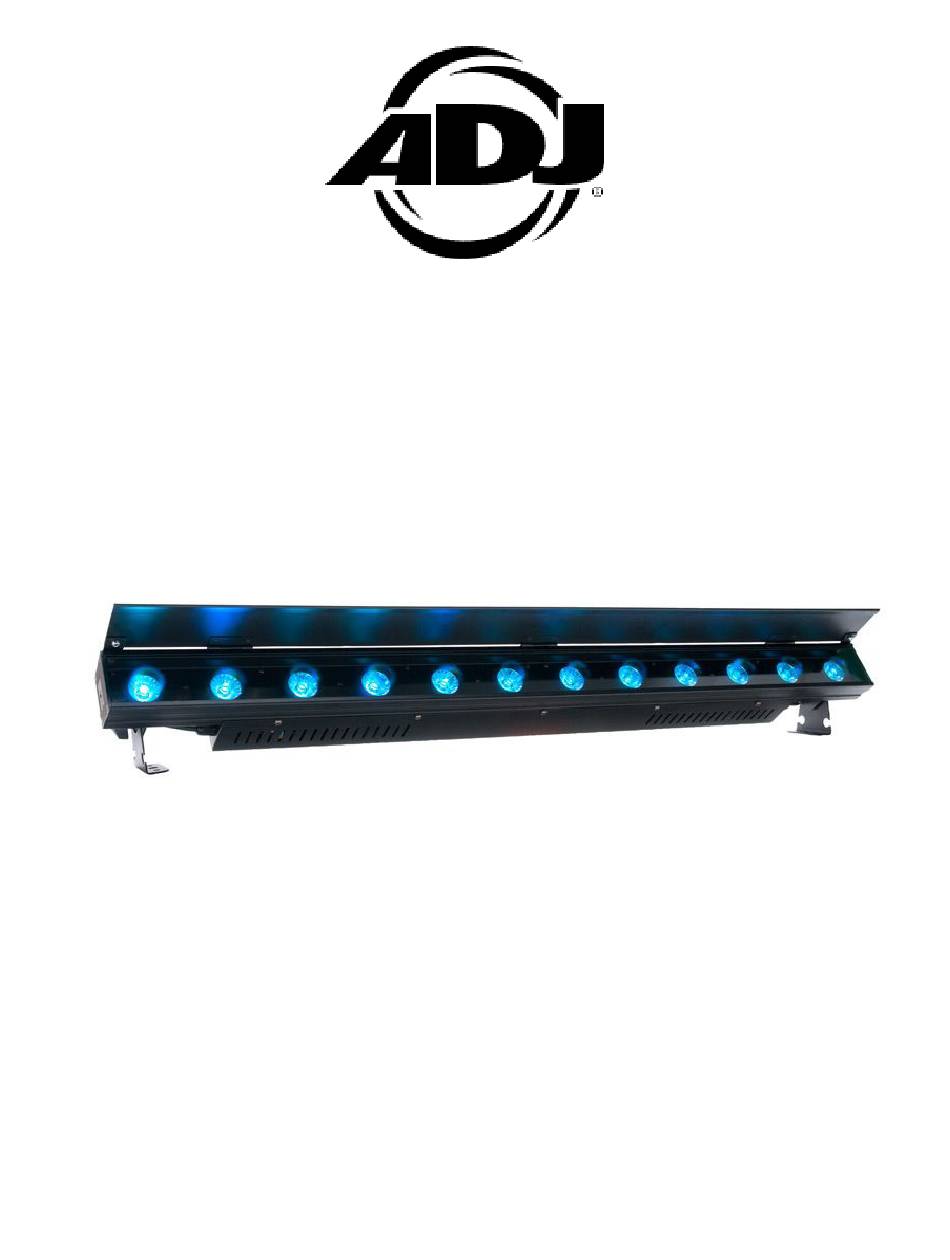

  • Page 1 ULTRA HEX BAR 12 User Manual Revised 09/29/2022...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Warranty Registration | Features Installation Safety Precautions Setup Control Panel Operating Instructions Primary-Secondary Configuration ADJ RFC Operation DMX Traits Color Macros Chart Photometric Chart | Dimmer Curve Chart Power Cord Daisy Chain | Cleaning | Fuse Replacement Trouble Shooting Specifications...

  • Page 4: Introduction

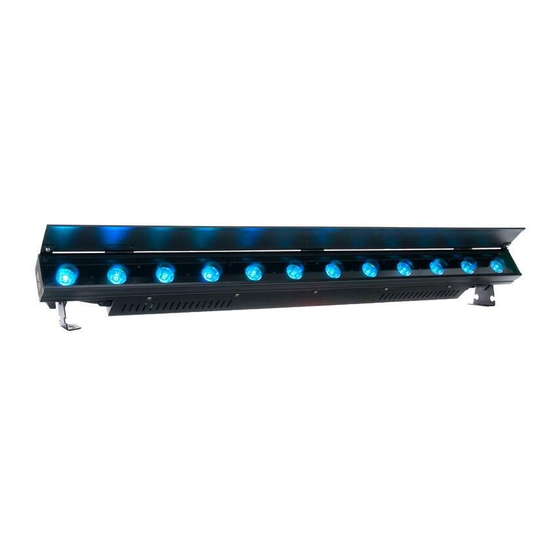

    Introduction: The Ultra Hex Bar 12 is a DMX intelligent, LED bar fixture, and can be used in a stand alone mode or connected in a primary/secondary configuration. This par has six operating modes: Sound Active mode, Auto mode, Program mode, RGBWA + UV dimmer mode, Static Color mode, and DMX control mode.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features

    Built in Microphone • DMX-512 protocol • 3-Pin DMX Connection • 5 DMX Modes: 6, 7, 8, 12, & 36 Channel Mode. • ADJ RFC compatiable (Sold Separately) • Power Cord Daisy Chain (see Power Cord Daisy Chain section of this manual)

  • Page 7: Installation

    I N S T A L L A T I O N CLAMP INSTALLATION This fixture features a mounting clamp attachment points at the base of each foot, as well as two safety cable attachment points located on the back of the fixture (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure appropriately rated clamps (not included) to the clamp attachment points and attach a separate SAFETY CABLE of the appropriate safety rating to each safety cable rigging point.

  • Page 8: Safety Precautions

    S A F E T Y P R E C A U T I O N S • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. • Do not spill water or other liquids into or on to your unit. •...

  • Page 9: Setup

    S E T U P Power Supply: The ADJ Ultra Hex Bar 12 contains an automatic voltage switch, which will auto mati- cally sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere.
  • Page 10 2 and 3 of a male XLR connector (DATA+ and DATA-). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable termi- nator (ADJ part number Z-DMX/T) will decrease the possibilites of erratic behavior. Termination reduces signal errors and avoids signal transmission problems and interference.

  • Page 11: Control Panel

    C O N T R O L P A N E L This fixture includes an easy to navigate control panel display, from which all necessary settings and adjustments can be made. During normal operation, pressing the MODE button will cycle through the different functions in the main system menu.

  • Page 12: Operating Instructions

    This function also allows you to use your fixtures as spot lights. The Ultra Hex Bar 12 has 5 DMX modes: 6 Channel mode, 7 Channel mode, 8 Channel mode, 12 Channel mode, and 36 Channel mode. Refer to the DMX Traits section of this manual for detailed information.
  • Page 13 O P E R A T I N G I N S T R U C T I O N S RGBWA & UV Dimmer Mode: 1. Plug the fixture in and press the MODE button until “MANUAL” is displayed. 2.
  • Page 14 Sound Active Mode: In this mode the Ultra Hex Bar 12 will react to sound, and chase through the different colors. 1. Plug the fixture in and press the MODE button until “SOUND PRO: XX” is displayed. “XX” is the current sound sensitivity setting.
  • Page 15 O P E R A T I N G I N S T R U C T I O N S Dimmer Curve: This is used to set the dimming curve used with DMX mode. See page 21 for the different dimming curves.

  • Page 16: Primary-Secondary Configuration

    P R I M A R Y - S E C O N D A R Y C O N F I G U R A T I O N This function will allows you to link units together to run in a primary-secondary mode, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 17: Adj Rfc Operation

    The ADJ RFC remote (sold seperately) has many different functions and allows you to control your Ultra Hex Bar 12 from a distance. Maximum range is 150 ft. To use the RFC, you must first activate the fixtures receiver, as described in the Operating Instructions section of this manual.

  • Page 18: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 12CH 36CH 000 - 255 Red, 0% to 100% 000 - 255 Green, 0% to 100% 000 - 255 Blue, 0% to 100% 000 - 255 White, 0% to 100% 000 - 255 Amber, 0% to 100% 000 - 255 UV, 0% to 100% 000 - 255 Color Macros, see Color Macro Chart section of this manual...
  • Page 19 D M X T R A I T S CHANNEL FUNCTION VALUES 12CH 36CH Program Speed / Sound Sensitivity Program Speed, slow to fast 000 - 255 - OR - Sound Sensitivity, least to most sensitive Dimmer Mode 000 - 020 Standard 021 - 040 Stage 041 - 060 061 - 080 Architectural...
  • Page 20 D M X T R A I T S CHANNEL FUNCTION VALUES 12CH 36CH 000 - 255 Red, Pixel 11 & 12, 0% to 100% 000 - 255 Green, Pixel 11 & 12, 0% to 100% 000 - 255 Blue, Pixel 11 & 12, 0% to 100% 000 - 255 White, Pixel 11 &...

  • Page 21: Color Macros Chart

    C O L O R M A C R O C H A R T DMX VALUES COLOR MACRO DMX VALUES COLOR MACRO 000 - 003 128 - 131 G+B+W 004 - 006 132 - 135 G+B+A 008 - 011 Green 136 - 139 G+B+UV...

  • Page 22: Photometric Chart | Dimmer Curve Chart

    P H O T O M E T R I C C H A R T D I M M E R C U R V E C H A R T (Fade Time) (Fade Time) Ramp Effect Standard Stage Architectural Theatre...

  • Page 23: Power Cord Daisy Chain | Cleaning | Fuse Replacement

    P O W E R C O R D D A I S Y C H A I N This feature allows the fixtures to be linked together using the IEC input and output sockets. The maximum number of units that can be connected in this manner is 7 units. Once this number has been reached, a new power outlet will be needed in order to accommodate ad- ditional units.

  • Page 24: Trouble Shooting

    T R O U B L E S H O O T I N G Listed below are a few common problems the user may encounter, with possible solutions. Unit not responding to DMX: Check that the DMX cables are connected and wired correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be “hot”).

  • Page 25: Specifications

    • Includes mounting brackets to mount on a wall or set on the ground • Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately) • Long Life LEDs (Rated at approximately 50,000 hrs.) •...
