Back Panel Connections - AOpen MODT Flex i945GTt-VFA Easy Installation Manual

8

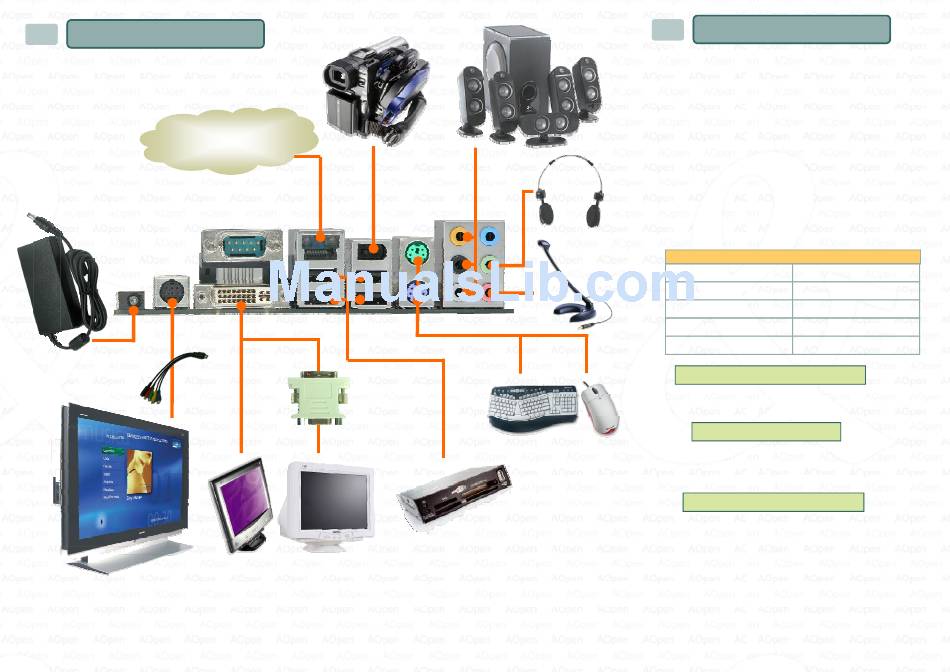

Back Panel Connections

Internet
90W DC19V
Power Adaptor
YPbPr /
Composite/
TV support S-VIDEO or
●
composite or YPbPr
HDTV support YPbPr
●
( One time one signal only)
Camcorder
support 1394
LAN which
can link to
internet
OR
D-SUB
Connector
PC Monitor PC Monitor
Support DVI Support D-
SUB
PC 5+1
Speakers
PC Earphone
PC Microphone
PS2 Keyboard
and Mouse
USB Devices
Like Card
reader
8.1 VGA & Video Support
MoDT Flex 945's Graphic/Video Output as left pictures.
It supports DVI-I connector. But there's DVI to D-SUB
connector bundle which allows you to connect D-SUB
monitor. Also, it provided a S-VIDEO connector in back
side which allows you to connect Video consumer
electronics. MoDT Flex 945 has "S-VIDEO to YPbPr/
Composite" cable which can link TV or HDTV or DVD
recorder.
Notice:
YPbPr/S-VIDEO/Composite. These three video signals
can act one time one signal since common source. Users
cannot connect it together to show video.
PC graphic resolution table
Resolution Color depth
1600 x 1200 256/ 16bit/ 32bit
1280 x 1024 256/ 16bit/ 32bit
1024 x768 256/ 16bit/ 32bit
640 x 480 256/ 16bit/ 32bit
PC Graphic resolution support
Maximum : 1600 x 1200 x 32bit
Video resolution support
HDTV: 480p/720p/1080i/1080p
TV video resolution support
Special resolution 16:9 support
AUO 32" 16:9 Panel: 1366 x 768
( Users need to check with your TV panels vender about it )
