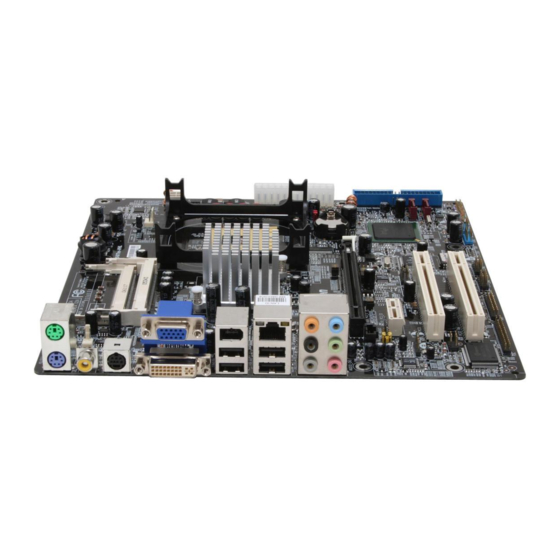

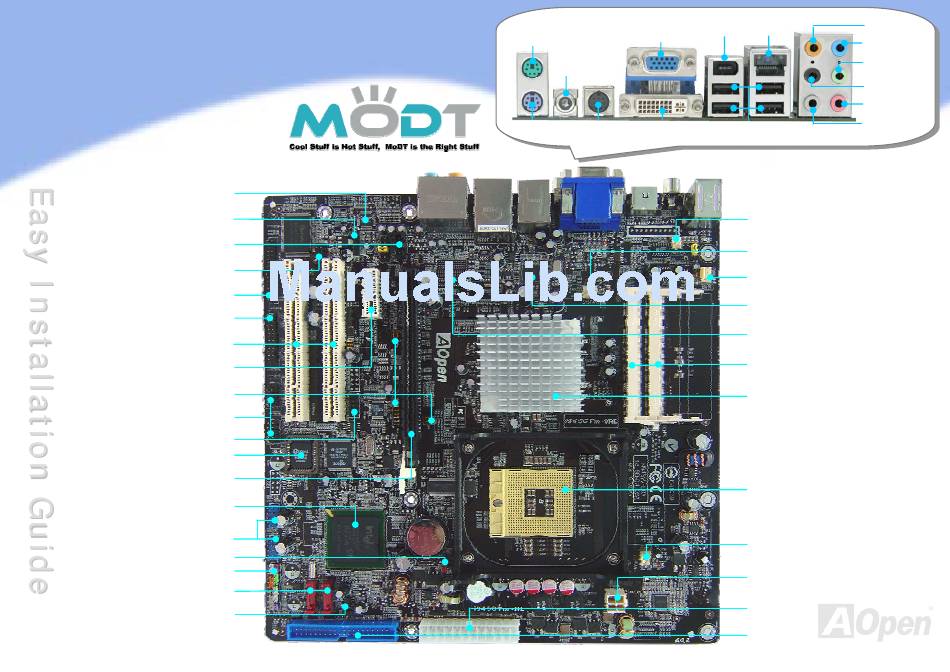

i945GTm-VHL
i945GMm-HL
Onboard HD Audio CODEC
S/PDIF Connector
CD_IN Connector
IRDA Connector
FDD Connector
Printer Connector
32-bit PCI Expansion Slot x2
PCI Express x1 Slot x1
PCI Express VGA Card
Enable Jumpers
COM1+COM2 Connector
IEEE 1394 Connector
BIOS
PCI Express x 16 Graphics
Slot (8.0GB/s)
ICH7M for i945GMm-HL
ICH7MDH for i945GTm-VHL
USB 2.0 Connector x2
JP14 CMOS Data Clear Jumper
Front Panel Connector
Serial ATA Port x2
Supports 150 MB/s Transfer Rate
Case Open Connector
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
PS/2 Mouse
VGA Port
Connector
Analog
SPDIF
PS/2 Keyboard
S-Video
DVI Ports
Connector
RJ45
1394
LAN
Rear SUR
Jack
Port
Line-In
Speaker Out
Center/
Subwoofer
MIC-In
Side SUR
USB 2.0 ports
Power Temperature Connector
SYSFAN1 Connector
Power FAN Connector
Marvell PCIe Gigabit LAN Chip
for i945GMm-HL only
Intel PCIe Gigabyte LAN chip
for i945GTm-VHL only
200-pins SODIMMsx2 support
DDR II 667, Max. To 2GB
Intel
945GT/945GM support
®
DDR II 533/667 and PCI Express
x16
479-pin
CPU
Socket
supports
®
Intel
Yonah Core Duo processors
CPU FAN Connector
4-pin PWR Connector
ATX Power Connector
IDE Connector
(ATA 33/66/100 supported)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen MoDT i945GTm-VHL
Summary of Contents for AOpen MoDT i945GTm-VHL
- Page 1 Serial ATA Port x2 Supports 150 MB/s Transfer Rate ATX Power Connector Case Open Connector IDE Connector (ATA 33/66/100 supported) AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
- Page 2 Everything you need to boot this motherboard is included in this Easy Installation Guide. For more information, a complete Online 1. Installing CPU 12. Installing Drivers & Utilities User's Manual can be found in the Bonus Pack CD. Thanks for the help of saving our earth.
-
Page 3: Installing Cpu
1. Installing CPU 3. Installing Memory Modules This socket supports Yonah Core Duo/Solo CPU, which is the latest CPU package SODIMM slots are designed in high and low positions which are very easy to developed by Intel. Please do not plug other CPU to avoid any damage. Other recognize. -
Page 4: Connecting Front Panel Cable
Front Panel Connector 6. Connecting ATX Power Cables 8. AOpen EzInstall and Bonus Pack CD This motherboard comes with a 24-pin and 4-pin ATX power connector as shown You can use the autorun menu of Bonus CD disc. Choose the utility and driver below. -
Page 5: Jp28 Keyboard/Mouse Wakeup Jumper
Setting CPU Voltage & Frequency JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow Setting CPU Core Voltage the procedure below. This motherboard supports Voltage ID (VID) function to detect CPU voltage Turn off the system and unplug the AC automatically during power-on. -
Page 6: Ieee 1394 Connectors
IEEE 1394 Connectors Front Audio Connectors With IEEE1394 Chip on board (AGERE 1394), having its data transfer rate up to If the housing has been designed with an audio port on the front panel, you’ll be 400Mb/s, this interface can connect to devices that require high data transferring able to connect onboard audio to front panel through this connector. -
Page 7: Model Name And Bios Version
Gold member of Club AOpen, and to ensure high service quality and priority from AOpen. You will also have a chance to play slot machine game to win prize from AOpen. Please prepare the following information before you start: Model Name, Part Number (P/N), Serial Number (S/N) and Purchase Date. - Page 8 Gold Member of Club AOpen so as to ensure quality service in the future. In order to maintain the best service to every customer of us, we recommend you to follow the procedures below and seek help from our branches according to the region you buy the product.
