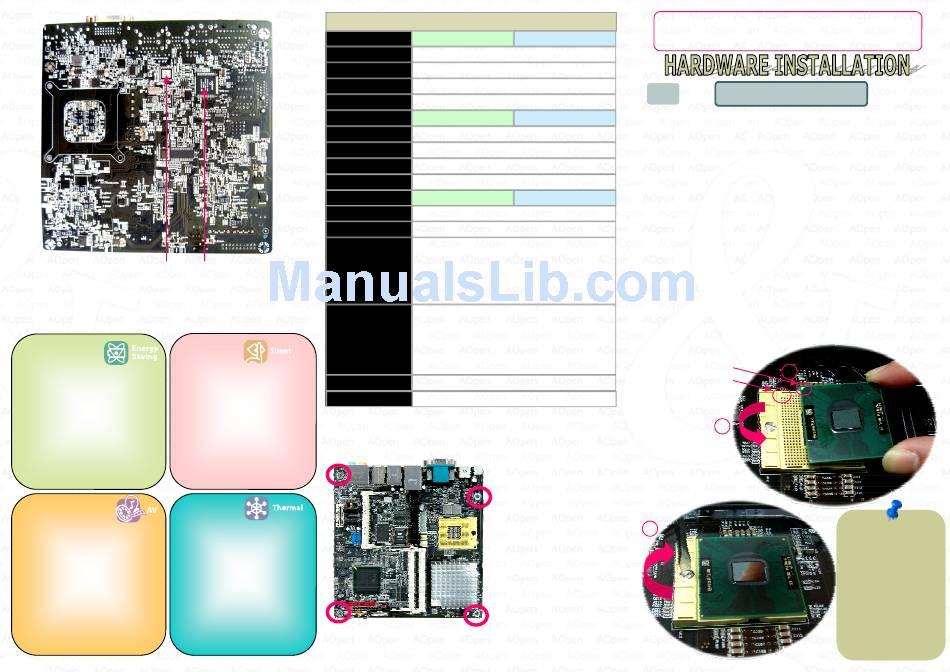

Cpu Installation - AOpen MODT Flex i945GTt-VFA Easy Installation Manual

Realtek Gigabit Lan
placement
Picture i945GTt-VFA
MoDT Flex 945 is Mobile on Desktop solution. The main
features it brings:"
Silent
Energy saving
With superior design, the
It consume low energy which
noise level can be control
is half power needed in Intel
under 28 dB which meet
775 MB. That can help you
your silent & quiet
to save 90W around while
environment. Also intel
you use it. And since it save
speed stepping technology
energy so it can save you
can keep silent well.
money.
AV—Multimedia Cool
With 945GT/GM, it delivers By using Mobile on
Desktop technology. One
high performance to users.
HDTV and high quality of can enjoy cool &
comfortable experience
audio which MoDT Flex
945 will give you extreme on Flex 945. Keep your
AV experience. system with stable and
long life.
MoDT Flex 945 Specification Table
Model Name
Form Factor
PCB Size
CPU
CPU Socket
Chipset
Memory type
Memory slot
Memory Max. size
DVI Chip
Ethernet LAN Chip
Audio Chip
Firewire 1394
Agere 1394
Rear Connectors
On board Slots &
Internal
Connectors
O.S.
Power
MoDT Flex 945
170mm height. Flex ATX comes from mATX, it has same
Flex ATX. Since small is MoDT Flex 945 designed to be.
i945GTt-VFA i945GMt-FA
Flex ATX
170mm x 170mm
Yonah Core Duo & Core Solo
479 Socket
945GT + ICH7MDH 945GM + ICH7M
Dual Channel DDR II 667/533
SODIMM DDR II x 2
Maximum 2GB
Chrontel 7307
Intel 83573L G LAN Realtek PCIe G LAN
Realtek ALC882D 7+1 audio channels
Agere FW3226-1394A
DVI x 1, s-VIDEO x 1
Ethernet LAN x 1, COM x 1
Azalia Audio Rack x 1
USB2.0 x 4, 1394 x 1, PS/2 x 2
19V DC in x 1
Socket 479, SODIMM DDRII x 2
PCIe * 1 x 1, s-ATA x 2, Firewire - 1394 x 1
CD-In x 1,Cooling fan x 2, Panel x 1
IDE x 1, USB2.0 x 4, COM x 1, Front Audio x 1,
12V/5V DC OUT- 4PINs Power connector x 1
Window XP/ Window MCE
90 W AC-DC Adaptor
is Flex ATX form factor. It is 170mm width x
size of rear panel
specification with mATX &
ATX and it's four screw
holes—left picture. The
holes' position and size
are also same with mATX
& ATX. You can put it
exactly into ATX or mATX
chassis. But we
recommend that you can
find a suitable chassis for
Before you start to make Hardware installation,
please make sure no power is connected
1

CPU Installation

MoDT Flex 945 support Intel® Core™ Duo & Core™ Solo
processor. The Intel® Core™ Duo processor and the Intel®
Core™ Solo processor are built on Intel's next generation
65 nanometer process technology with copper
interconnect. The Intel Core Solo processor refers to single
core processor and the Intel Core Duo processor refers to
dual core processor.
Start to install CPU. Find the position of CPU socket. This
socket support uFCPGA package CPU, which is the latest
Intel® Core™ Duo & Core™ Solo processor.
1. Unscrew socket screw counter-clockwise
2. Locate the Pin 1 in the socket and look for a
arrow on the CPU upper interface. Match Pin 1 and
golden arrow. Then insert the CPU into the socket.
3. Lock the socket screw clockwise to fasten CPU
Golden Arrow
2
Pin 1
1
3
golden
Note:
1. When unscrewed
the socket, the
socket will
horizontally shift.
2. When screw the
socket. You will hear
a slight sound
"Dock". That means
you already installed
CPU successfully.
